FlightLine F4U-1A Corsair Birdcage 1600mm (63 inch) Wingspan - PNP RC Airplane
>FlightLine F4U-1A Corsair Birdcage 1600mm Wingspan PNP RC Airplane
1, 6S 5055-340kV Brushless Outrunner Motor was insatlled
2, it requires 6 channel Radio
3,it requires 6 Channel Receiver
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This Products is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.

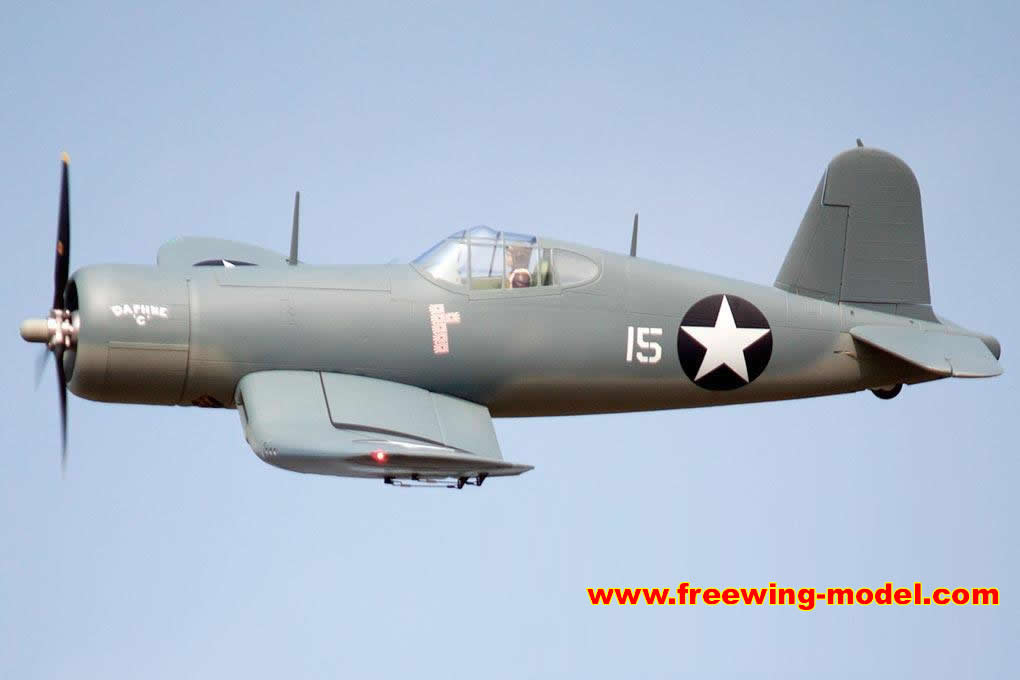

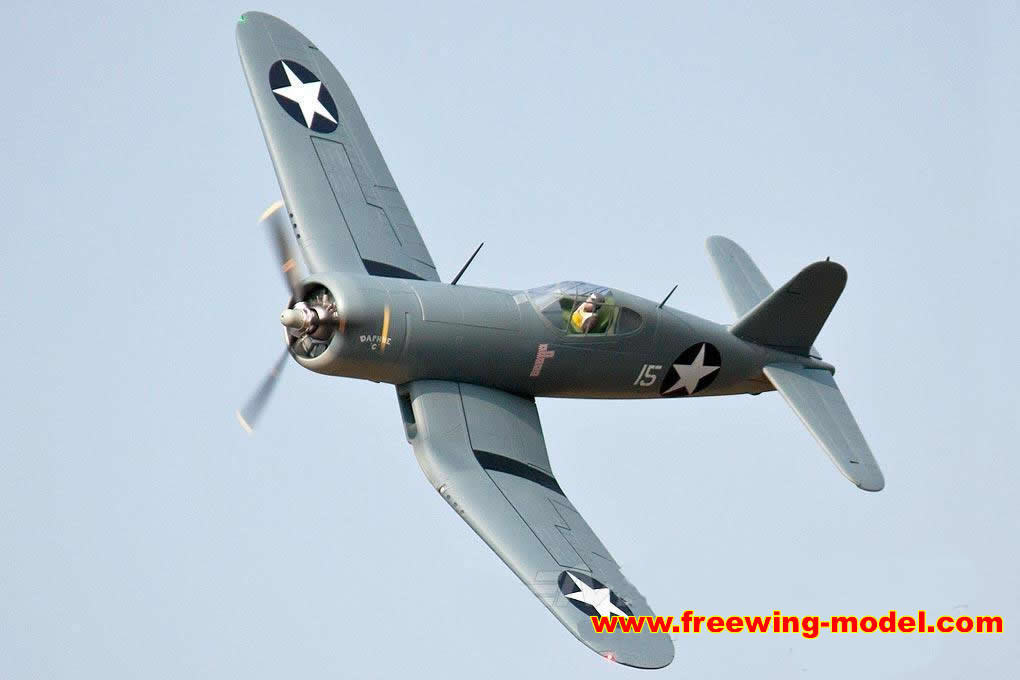

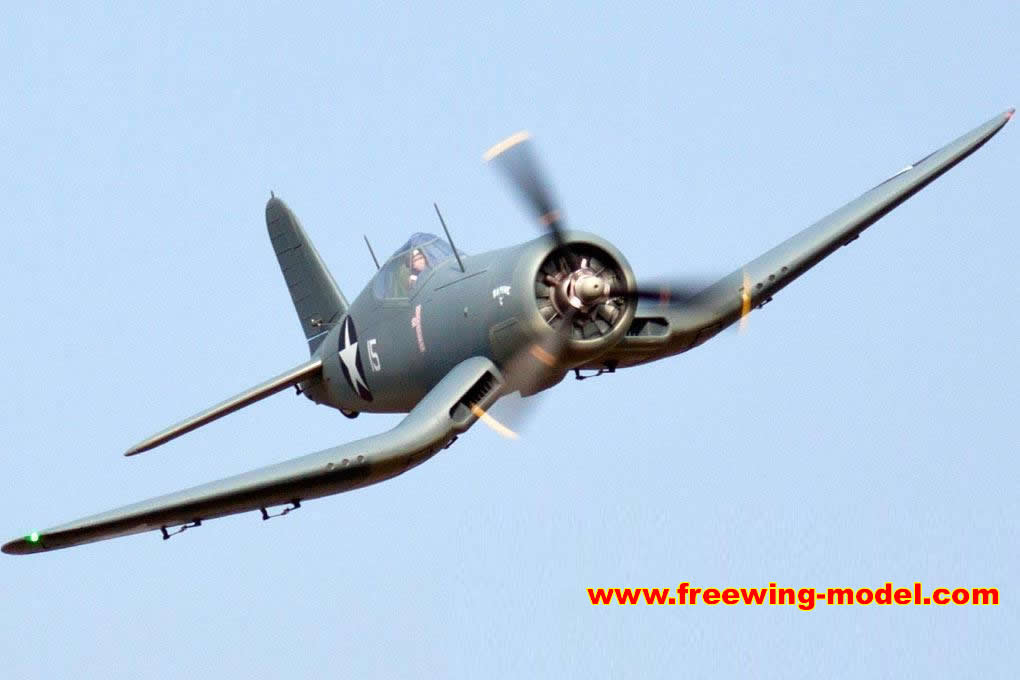

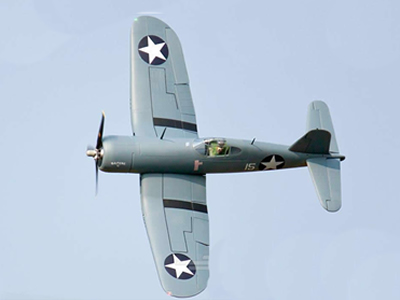

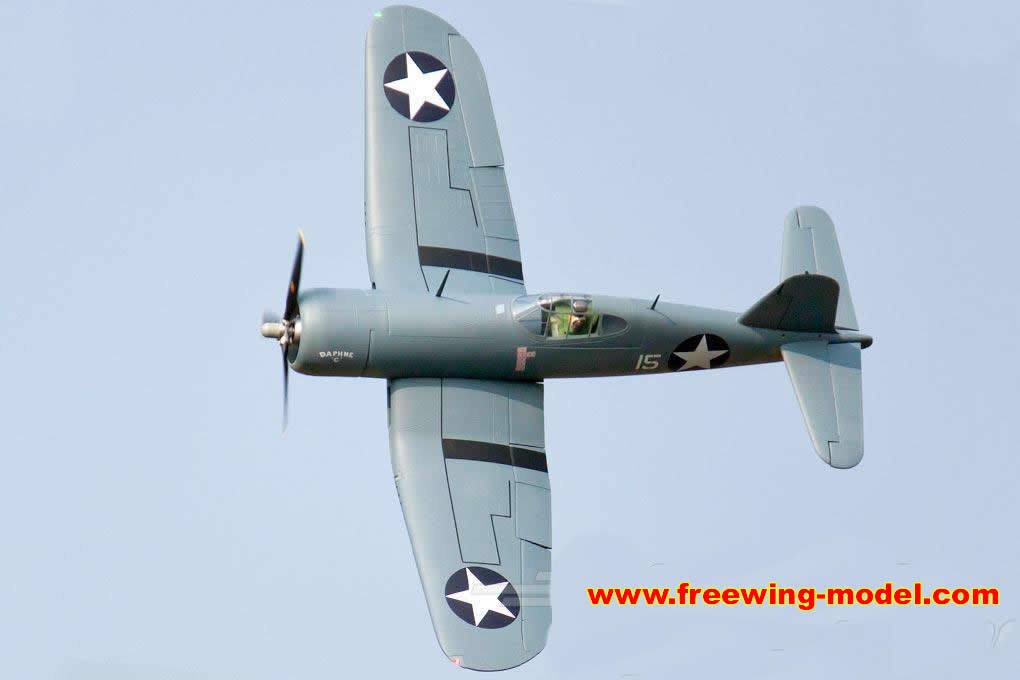

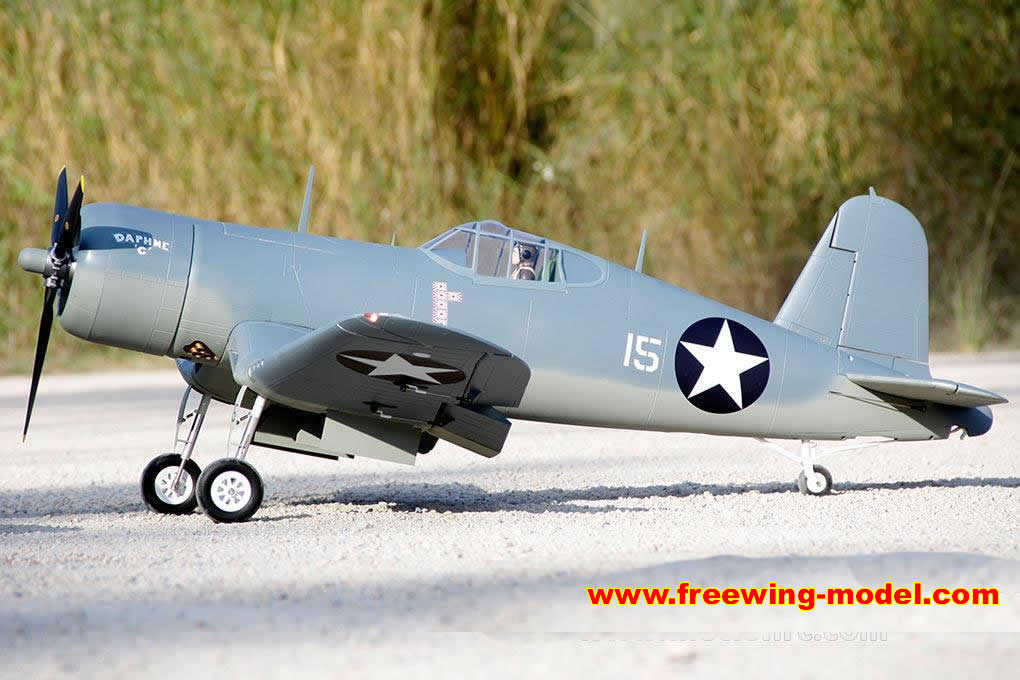

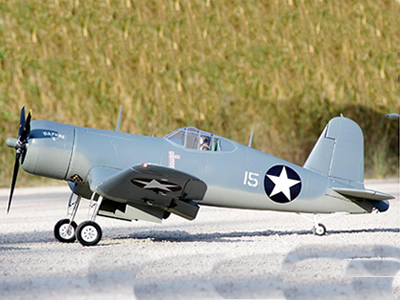

FlightLine F4U-1A Corsair Birdcage 1600mm (63 inch) Wingspan - PNP RC Airplane

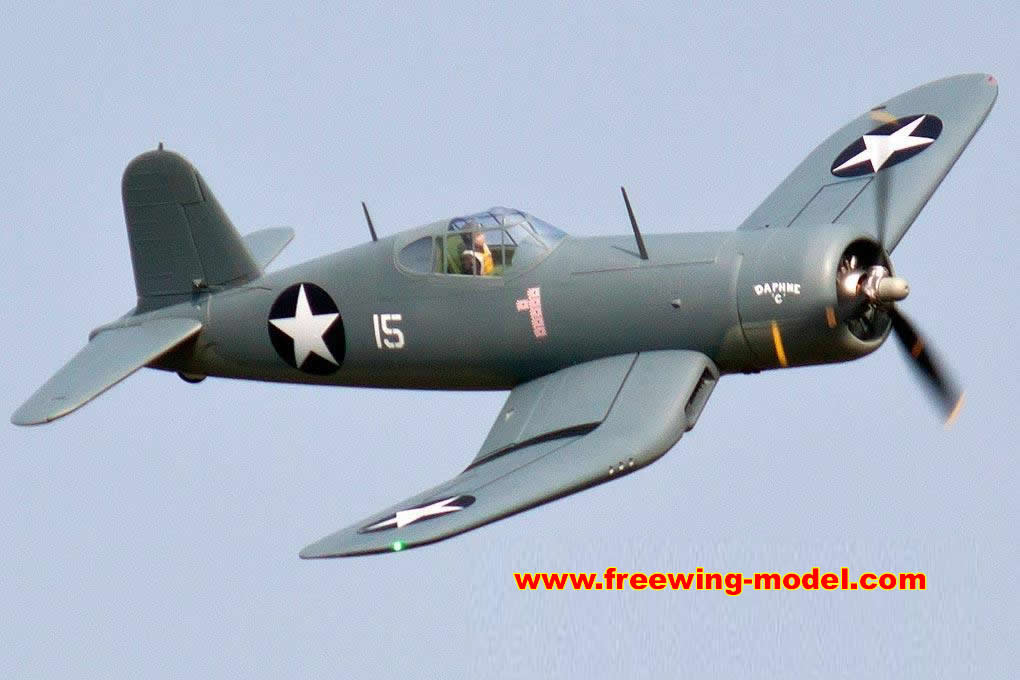

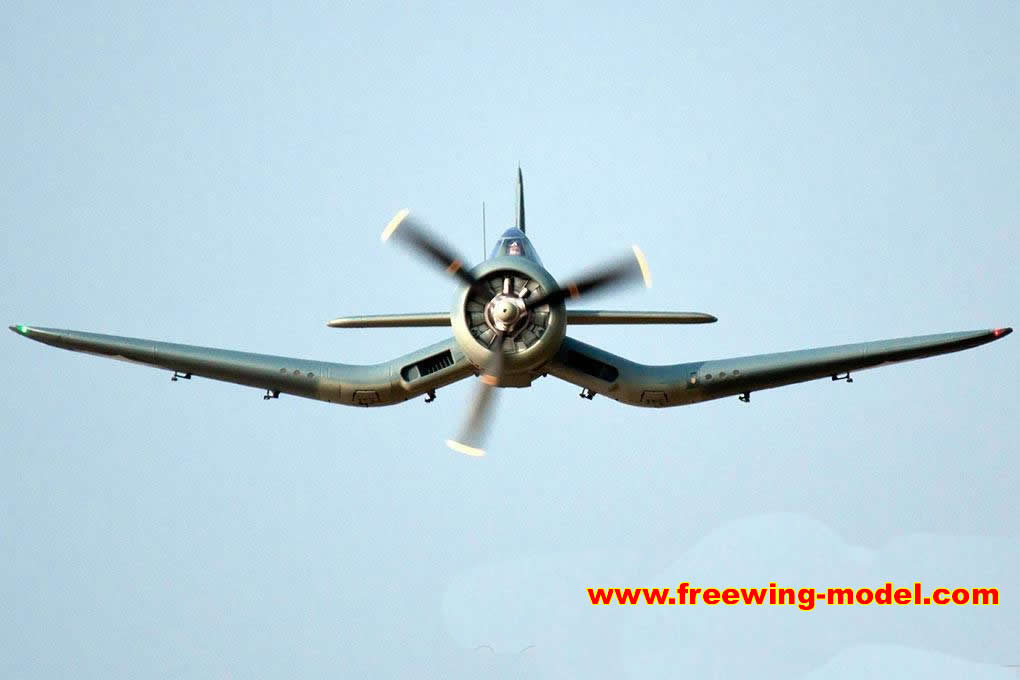

The FlightLine F4U Corsair stock PNP version is equipped with a 5055-390KV brushless outrunner motor and scale 3-blade propeller and 80A ESC. The specially molded large size propeller and all-new motor help power the Corsair through acrobatic maneuvers with ease while retaining a reasonable scale appearance. The model can cruise at ~40-50% throttle setting and loop consecutively at only 50%-60% throttle setting. Vertical performance is also excellent for a scale model this size! With the recommended Admiral 6S 5000mAh lipo battery, the F4U Corsair has a level top speed of 125kph/75mph, with 5-9 minutes of flight time depending on throttle management.

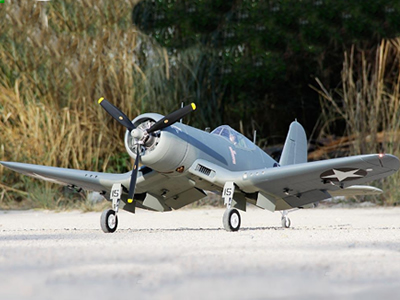

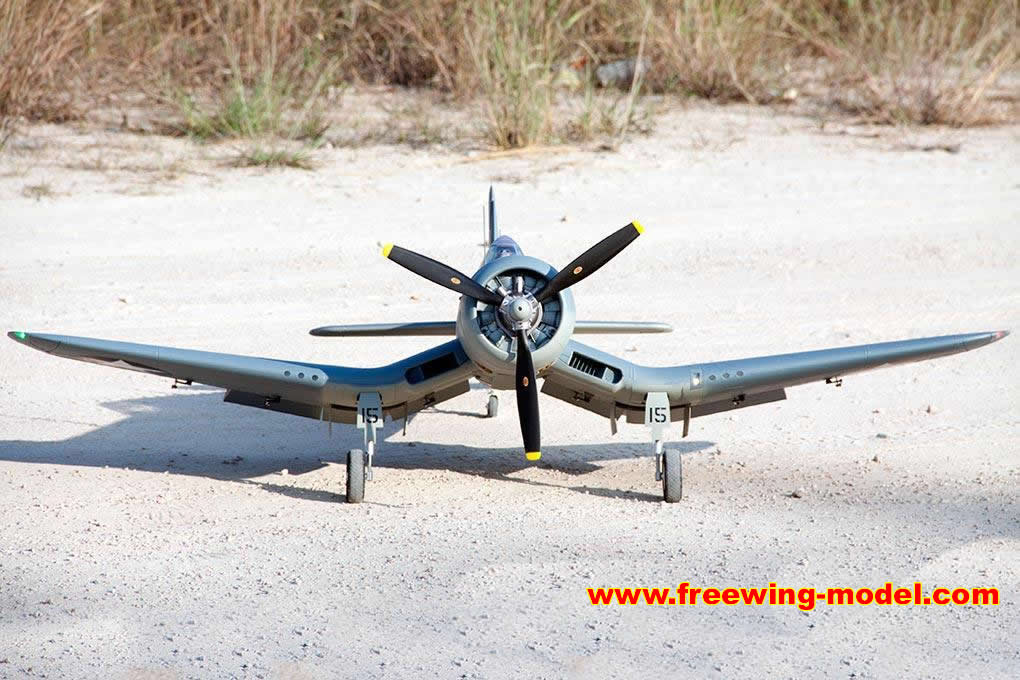

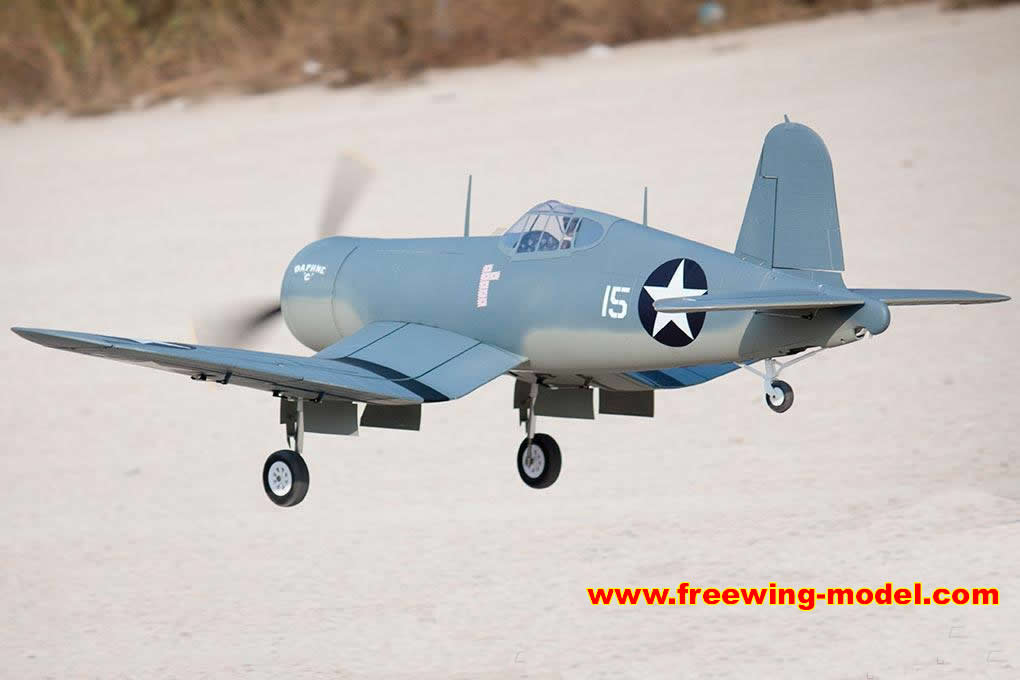

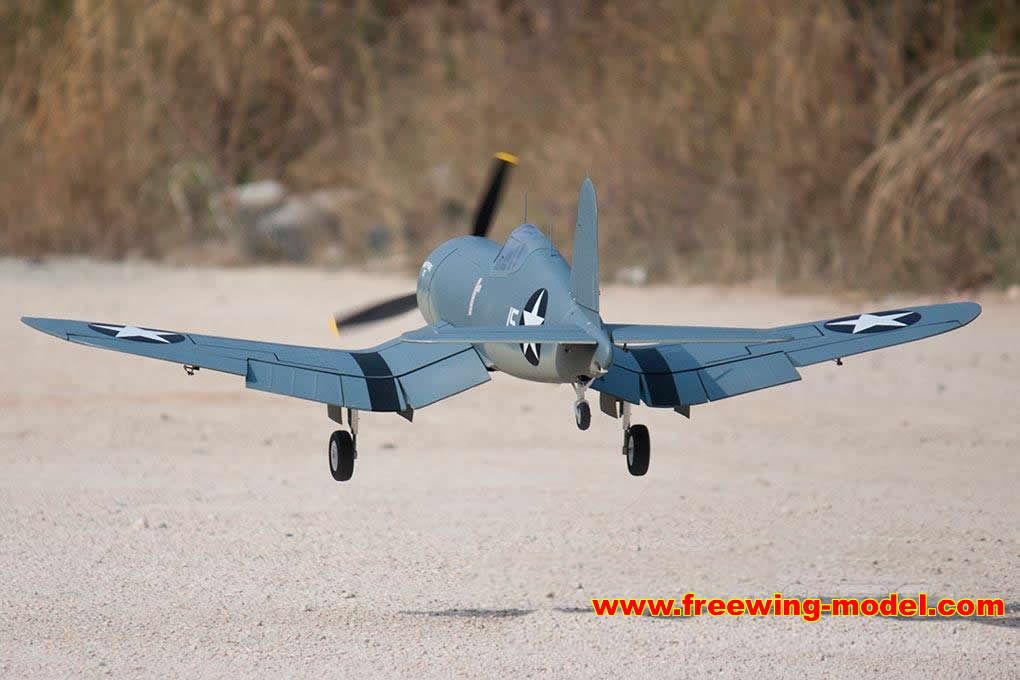

Takeoff is very stable without the need for flaps. The F4U can execute a wide range of maneuvers, including all scale maneuvers and additional non-scale acrobatics. Its aluminum suspension main struts and tall wheels provide confidence when operating on grass runways. All three landing gear are retractable, and the mains even feature three panel sequenced molded plastic gear doors for ultimate realism.
To give users an added element of versatility, the inside wall of the molded plastic cowl incorporates eight hidden tubes to house lead ballast, which users can add or remove depending on their preferred battery size (i.e. add ballast if flying a 4000mAh, remove ballast for 6,000+mAh). For users flying the recommended Admiral 6S 5000, no additional ballast is required other than what is already factory-installed. Refer to the manual for the recommended CG position.
FEATURES:
- it mas made in China freewing manufacturer.
- Grass capable landing gear with 5mm thick steel pin and metal trunion
- All new rotating main retract unit
- Metal suspension main struts with sequenced main gear doors
- Retractable tail wheel with scale detailing
- Scale four panel split flaps with rounded leading edge like the full scale
- Multi-material wing incorporates foam, plywood ribs, carbon spars, and aluminum joints for optimum strength
- DayBright LED wingtip lights and sequenced landing light
- 17g digital hybrid servos, brass ball links, and nylon hinges on all control surfaces

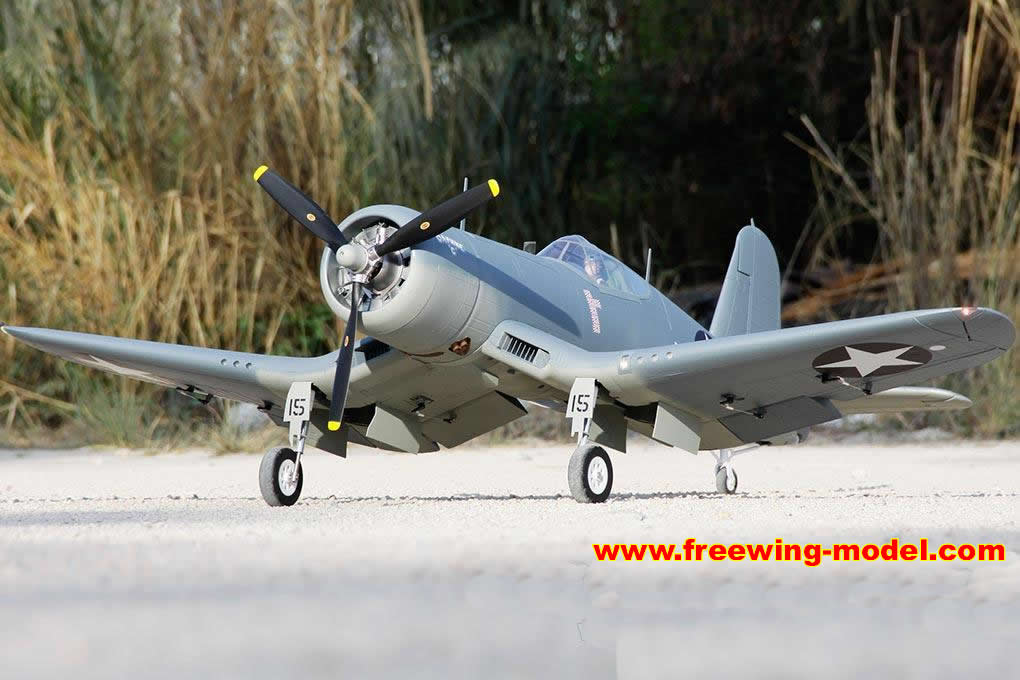

- Large 18x12 (90% scale) diameter propeller with aluminum alignment and reinforcement plates
- Integrated ballast chamber concealed within the plastic cowl

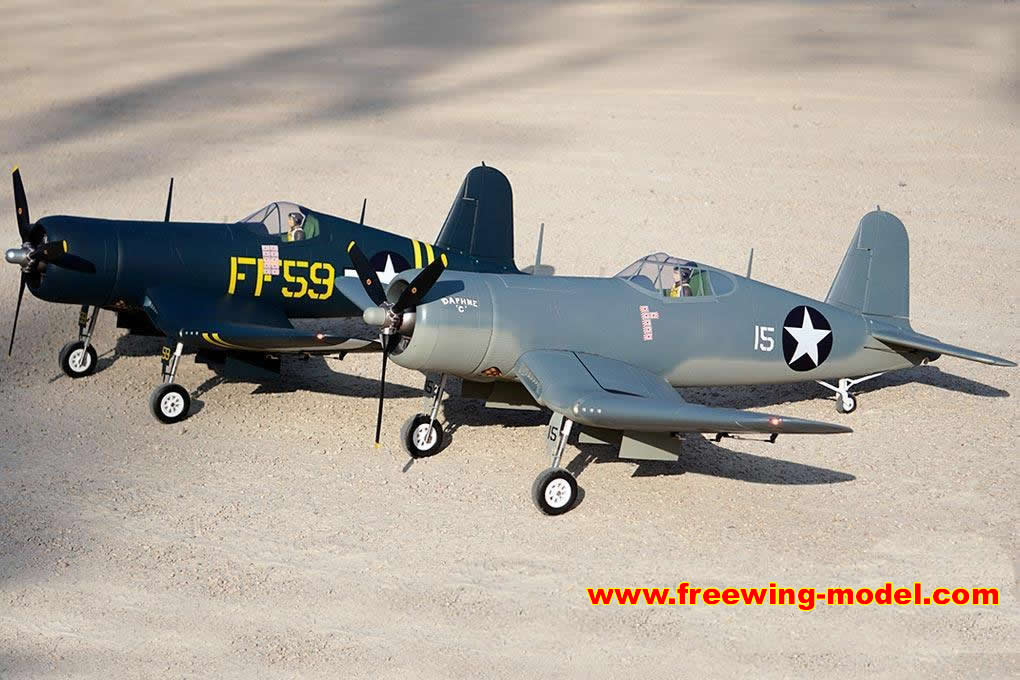

- F4U-1A ("Birdcage" canopy) and F4U-1D ("Bubble" canopy) PNPs available in different paint schemes
- Each version contains two decal sets
- Admiral 6S 5000 provides 5-9 minutes average flight duration with throttle management
INCLUDES:
- FlightLine F4U-1A Corsair Birdcage 1600mm (63 Inch) Wingspan - PNP Version
- Motor, ESC, servos, LED lights and retracts were pre-installed inside
REQUIRES:
- 6 Channel radio - select a minimum 6 channel radio
- 6 Channel receiver - select a minimum 6 channel receiver
- 6 Cell 22.2V 4000 to 5000 mAh LiPo battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger
Model Scale |
1 : 8 Scale |
Wingspan |
1600mm / 63in |
Length |
1300mm /51.18in |
Empty Weight |
2850g / 100.53oz (w/o battery) |
CG (Center of Gravity) |
100mm (3.93 inch) from the leading edge of the wing at the root |
Power System |
6S 5055-340kV Brushless Outrunner Motor |
Electronic Speed Control |
80A, EC5 Connector |
Propeller / EDF |
18x12 3-Blade Propeller |
Servos |
9g metal gear standard with 300mm lead : left gear door, right gear door |
Landing Gear |
Electronic retractable main gear with all metal shock absorbing struts and retractable tail wheel with scale plastic details |
Required Battery |
6S 22.2V 5000mAh LiPo with EC5 connector (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon Reinforced |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
2 Hours |
Recommended Environment |
Outdoors |
