Freewing banshee 64mm Sport ARF Plus Jet RC Airplane
Freewing banshee 64mm Sport ARF Plus Jet RC Airplane
1.it requires EDF Motor system and ESC,6 Cell 14.8V 2200 mAh to 3300 mAh LiPo Battery with XT60 Connector.
2.it requires 6 + Channel Radio and 6 Channel Receiver
3.it requires 6 Cell Compatible Battery Charger
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

This Product is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.
Freewing Model Banshee electric RC jet is a new 64mm ducted aircraft built again after the Stinger 64 was launched for 12 years. In terms of appearance, the light and flat nose is perfectly combined with the streamlined body, making it stylish and concise. The fluorescent green theme color, with black and white mottled gradient style honeycomb pattern and gray lines, has a unique visual impact, which not only shows the personality, but also effectively enhances the recognition during the flight. In terms of structure, this product adopts a modular structure design, and the assembly of major components is completed through plastic structural parts and screws, which is easy to maintain and update accessories.
Through the summary of the use of previous products and the accumulation of design experience, the Wingspan of the Banshee is set as the captain respectively: 900mm / 950mm. Compared with the conventional 64-ducted products, the size has been increased to improve the flight quality of the product. The main wing adopts a leading edge sawtooth design layout, which further enhances the lateral stability of the product at low speed and elevation attitude. In the process of research and development, repeated testing of various parameters, as well as multiple optimizations and modifications, made the Banshee meet the performance that a basic sports machine should have. The PNP version of Banshee is pre-installed with a 6S 14.8V 64mm 12-blade out-runner power system, which is full of power and has an average speed of 152KPH (95MPH). During the take-off, the directional stability is good, and the roll distance is about 20 meters. During the flight, the action responds quickly, and the operation process is soft and linear.
Under the same conditions, during the horizontal turn, the altitude loss is small. In the case of mastering the essentials of relevant flying movements, Banshee can easily complete common easy and difficult movements including "'side flying'1. The fixed landing gear made of D3mm diameter carbon steel is simple and durable. During the landing process, the landing gear has an appropriate degree of softness and hardness. With a little practice and adaptation, the bouncing phenomenon during the landing process can be reduced or even avoided, and the landing gear can smoothly land and glide.
Features:
50A or 40A Brushless(Thrust Reverse function) Ducted Electronic Speed Control has reverse thrust functionality
Ailerons and elevators are joined by 8 units servos for a flying delta configuration
it is without 64mm 12-Blade EDF with 2949-2300KV inrunner Brushless Motor EDF,without ESC,
Li-Po Battery:4S 2200-3300mAh
Landing gear:Fixed landing gear
8x 9g digital gear servos come pre-installed
Package details Includes:
Freewing Banshee 64mm Sport ARF Plus Jet RC Airplane
All Servos and Landing gear:Fixed landing gear are all pre-installed
It requires to Complete:
Brushless Motor EDF system and ESC.
6 Channel Radio - Select a minimum 6 channel radio
6 Channel Receiver - Select a minimum 6 channel receiver
6 Cell Li-Po Battery:4S 2200-3300mAh
6 Cell Compatible Battery Charger
Model Scale |
|
Wingspan |
900mm / 35.4in |
Length |
950mm / 37.4in |
Weight |
780g (without battery) |
CG (Center of Gravity) |
64mm from the leading edge of the wing root |
Power System |
2949-2300KV inrunner Brushless Motor EDF(not included) |
Speed Control |
50A, internal SBEC with XT60 Connector(not included) |
Propeller / EDF |
64mm 12-Blade EDF(not included) |
Servos |
|
Landing Gear |
Fixed main landing gear, steerable nose gear. |
Required Battery |
6S 14.8V 2200mAh with XT60 Connector9(not included) |
Required Radio |
6 Channel 2.4ghz radio(not included) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon hinges on all control surfaces |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoors |
Parts List for Freewing Banshee 64mm Sport EDF Jet
| Parts Number | Description | Image |

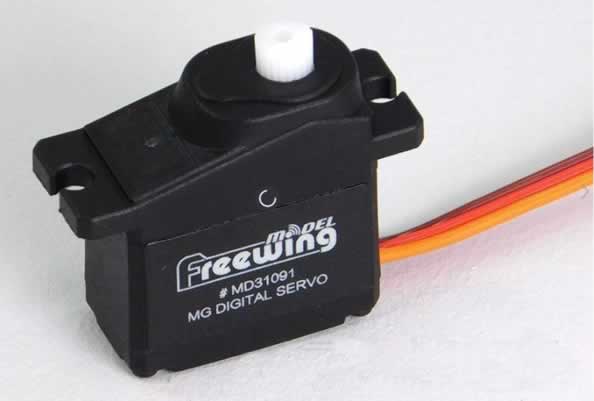

| MD31091-300 | Freewing 9g Digital Servo with 300mm (12 inch) Lead |  |

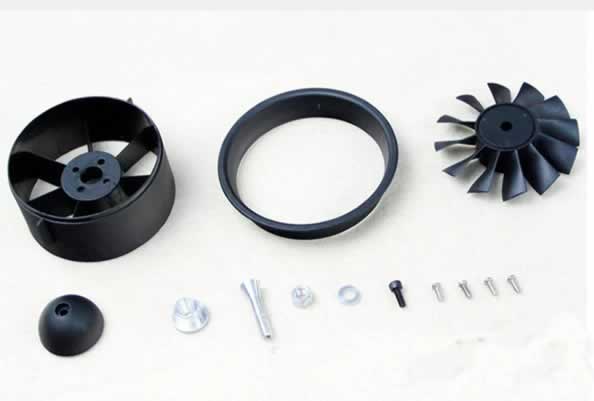

| P0642 | Freewing 64mm 12-Blade Ducted Fan Unit |  |
| P06421 | Freewing 64mm 12-Blade Ducted Fan Blades |  |

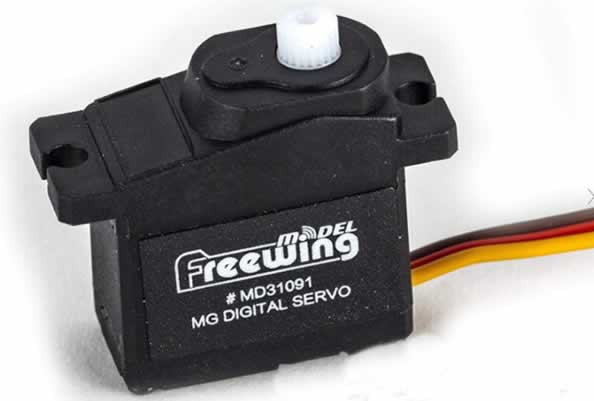

| MD31091-600 | Freewing 9g Digital Servo with 600mm (23 inch) Lead |  |

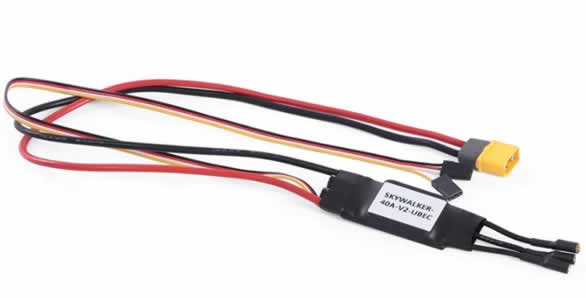

| 090D002001 | Freewing 40A ESC with 3A UBEC |  |

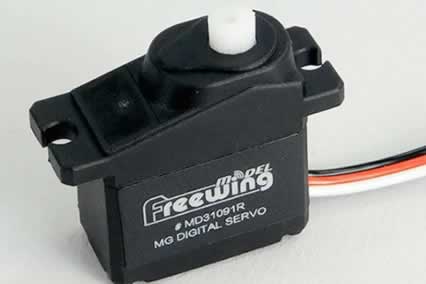

| MD31091R-600 | Freewing 9g Reverse Servo with 600mm (23 inch) Lead |  |
| FJ1121111 | Freewing 64mm EDF Banshee Sport Jet Pushrod Set |  |
| FJ1121112 | Freewing 64mm EDF Banshee Sport Jet Screw Set |  |

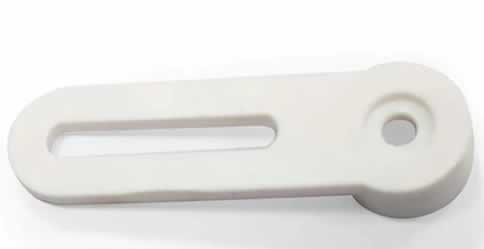

| FJ11211093 | Freewing 64mm EDF Banshee Sport Jet Servo Arm |  |

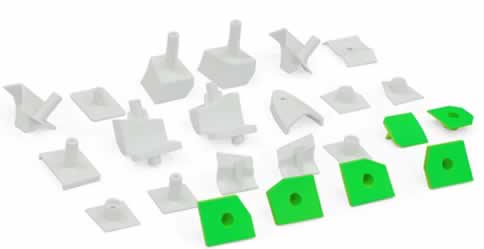

| FJ11211094 | Freewing 64mm EDF Banshee Sport Jet Plastic Parts |  |

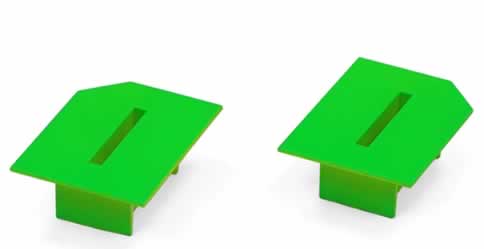

| FJ11211092 | Freewing 64mm EDF Banshee Sport Jet Main Landing Gear Plastic Part |  |

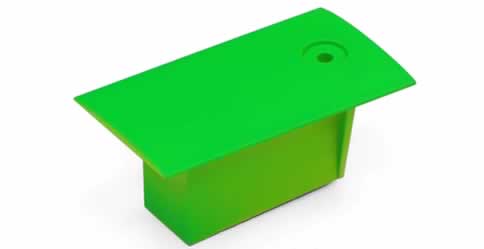

| FJ11211091 | Freewing 64mm EDF Banshee Sport Jet Nose Landing Gear Plastic Part |  |
| FJ1121107 | Freewing 64mm EDF Banshee Sport Jet Decal Set |  |

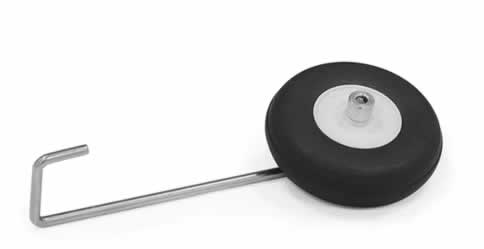

| FJ11211083 | Freewing 64mm EDF Banshee Sport Jet Main Landing Gear Set |  |

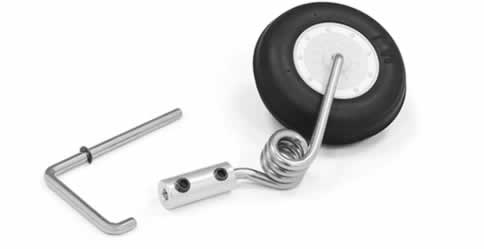

| FJ11211082 | Freewing 64mm EDF Banshee Sport Jet Nose Landing Gear |  |

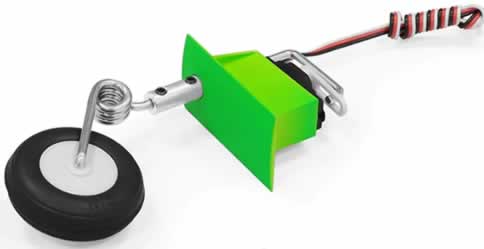

| FJ11211081 | Freewing 64mm EDF Banshee Sport Jet Nose Landing Gear with Servo |  |

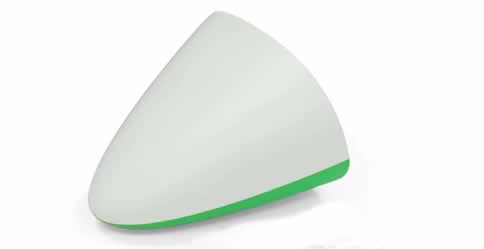

| FJ11211095 | Freewing 64mm EDF Banshee Sport Jet Nose Cone |  |
| FJ1121105 | Freewing 64mm EDF Banshee Sport Jet Cockpit |  |

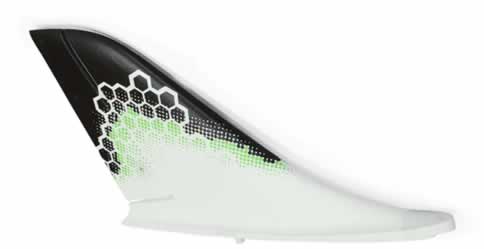

| FJ1121104 | Freewing 64mm EDF Banshee Sport Jet Vertical Stabilizer |  |
| FJ1121103 | Freewing 64mm EDF Banshee Sport Jet Horizontal Stabilizer |  |

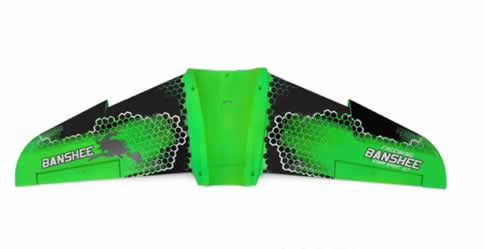

| FJ1121102 | Freewing 64mm EDF Banshee Sport Jet Main Wing |  |

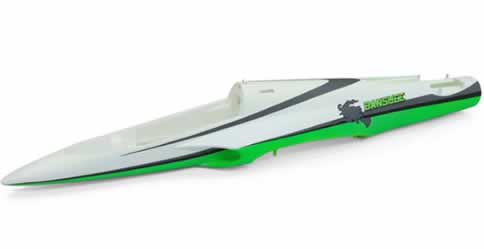

| FJ1121101 | Freewing 64mm EDF Banshee Sport Jet Fuselage |  |

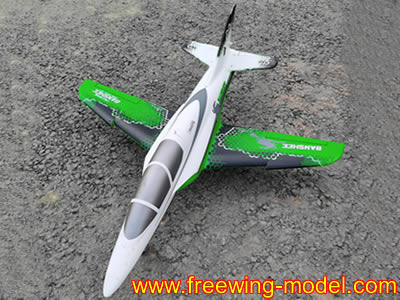

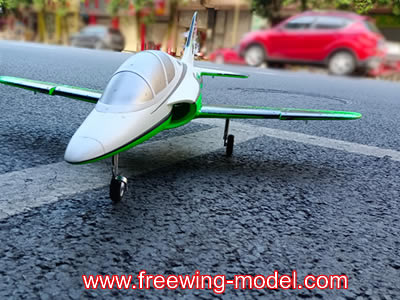

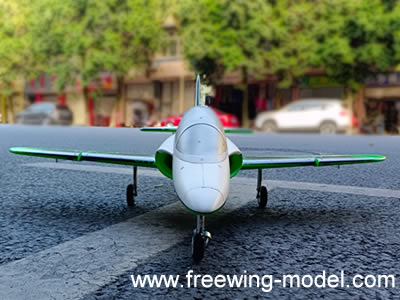

All Fly Images for Freewing Banshee 64mm Sport EDF Jet
