Freewing F-4D Green Phantom II 90mm EDF Jet - PNP RC Airplane
1,6 Channel radio.
2,6 Channel receiver
3, 6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This Products is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.
The specter has been revealed! Aviation enthusiasts have long loved the F-4 Phantom, and Freewing Model is extremely proud to introduce our 90mm Super Scale Series rendition of this ultimate warfighter! For more than 50 years, the F-4 Phantom delivered the versatile capabilities required of an all-weather frontline supersonic interceptor, fighter-bomber, SEAD, and reconnaissance platform. Less than a year after its retirement from US military service, you can still keep the F-4 Phantom flying in your RC fleet!

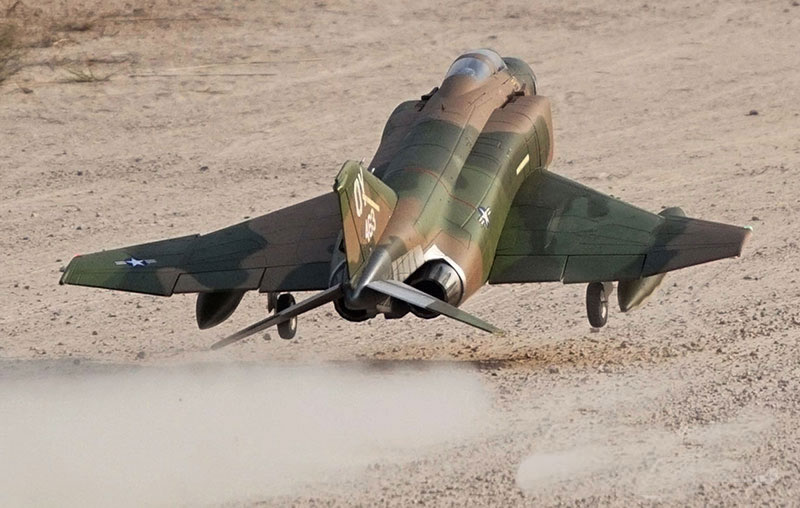

RC pilots have consistently requested a large F-4 EDF jet that performs excellently out of the box without endless modifications. We developed this F-4 to deliver reliability, durability, and performance from your very first flight. Grass operation is a hallmark of the Freewing 90mm F-4. With its wide stance, tall main tires, Oleo suspension nose strut and concealed trailing link suspension main struts, this aircraft performs well on rougher grass fields normally reserved for the Freewing A-10, Avanti, and other "grass approved" EDFs.

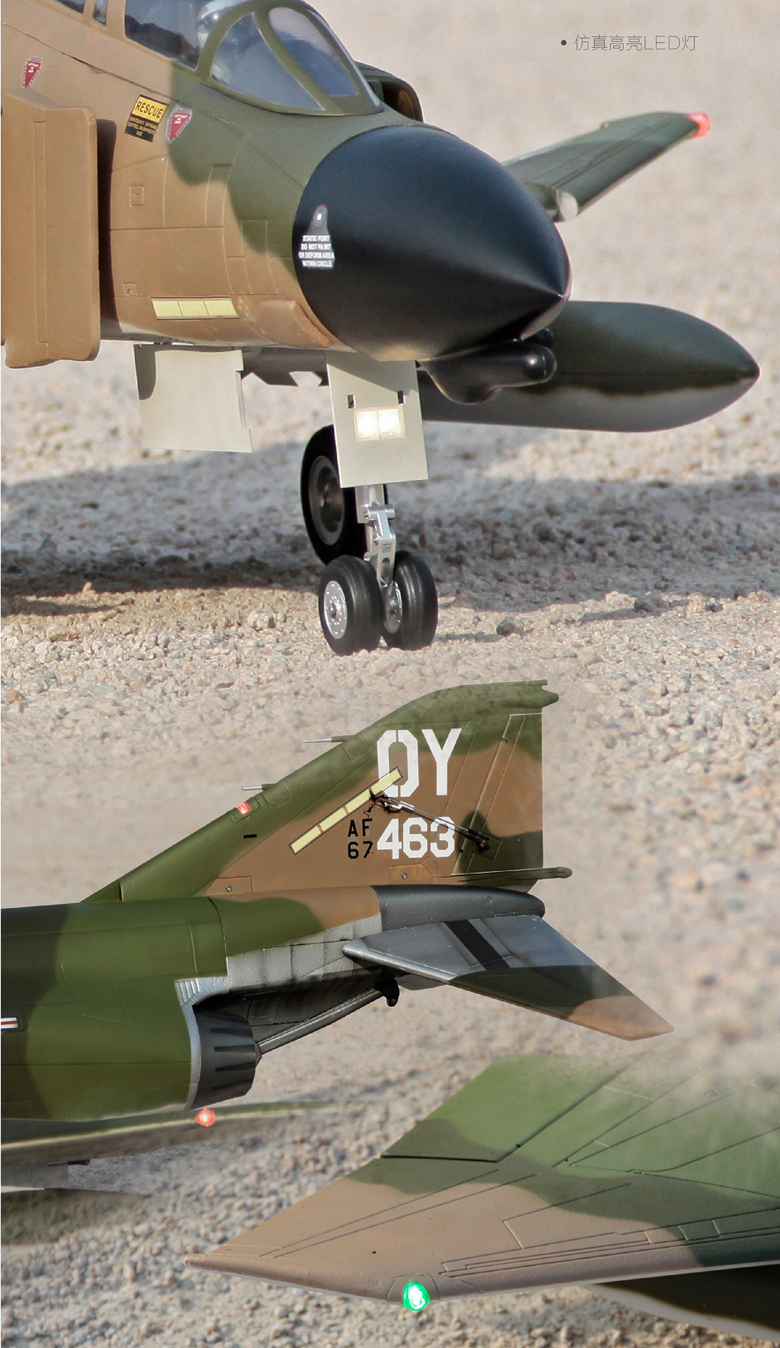

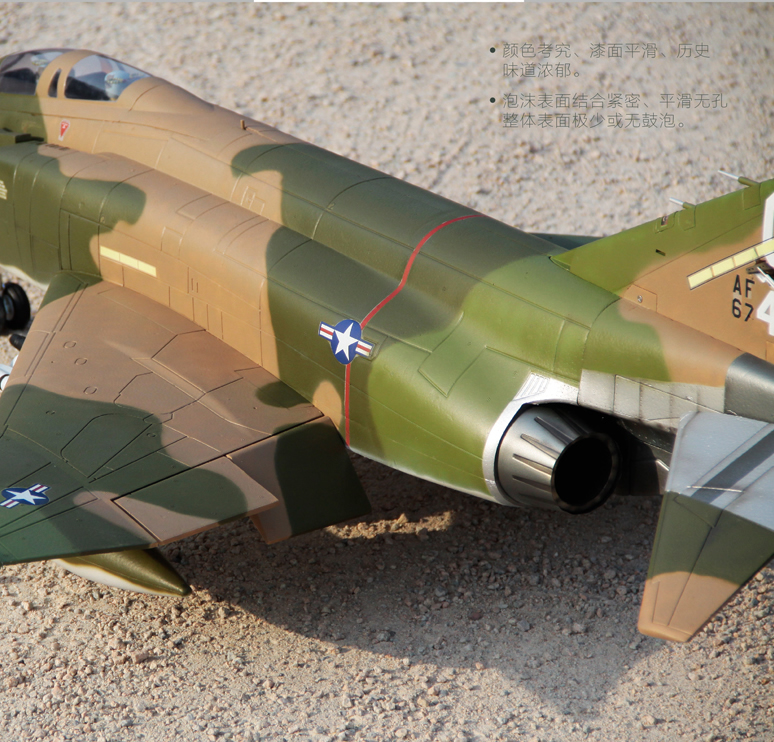

Super scale details include accurate dual landing lights flush-mounted into the scale operating nose wheel doors, DayBright position lights, rivet detail, static arrestor hook, and period accurate ordnance comprising four AIM-9D Sidewinders and two 370 gallon fuel tanks on removable hardpoints. Copious detail is molded into the aircraft's surfaces, including recessed areas depicting Position 4 and 6 (where DIY modelers could add belly-mounted AIM-7D/E Sparrows). Plastic details include pitot tubes, ejection seat pull rings, and molded exhaust nozzles. The large fiberglass nose cone is magnetic and removable, and the chin pod beneath it is foam, allowing easy removable and customization for other versions (-C or late -D). An optional, highly detailed 3DPUP set ("3D Printed Upgrade Part") is available that represents the correct Mk H-7 ejection seats and cockpit instrument panels in high detail. Download the 3D Print-ready files for free!

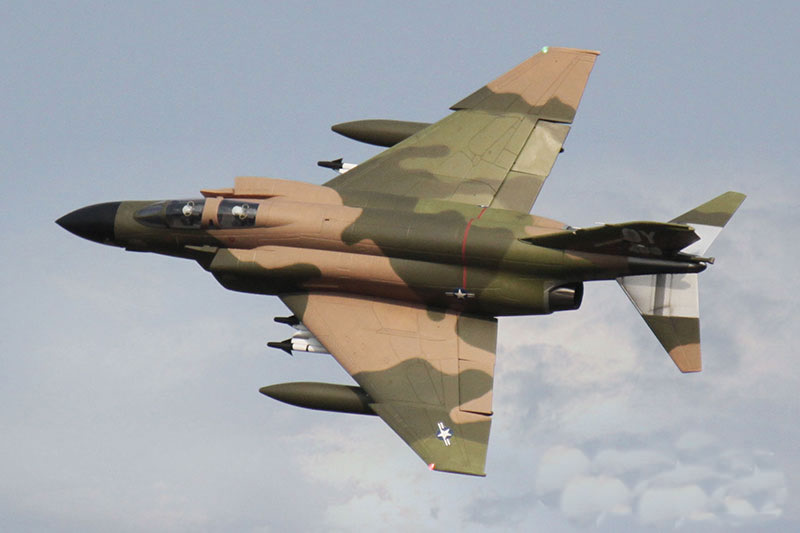

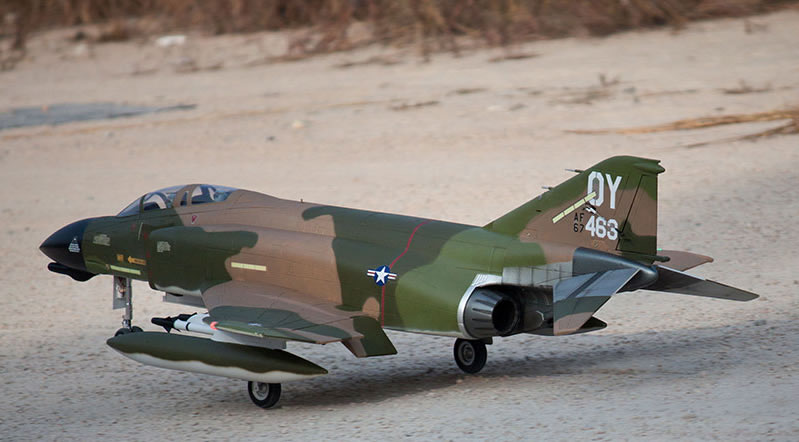

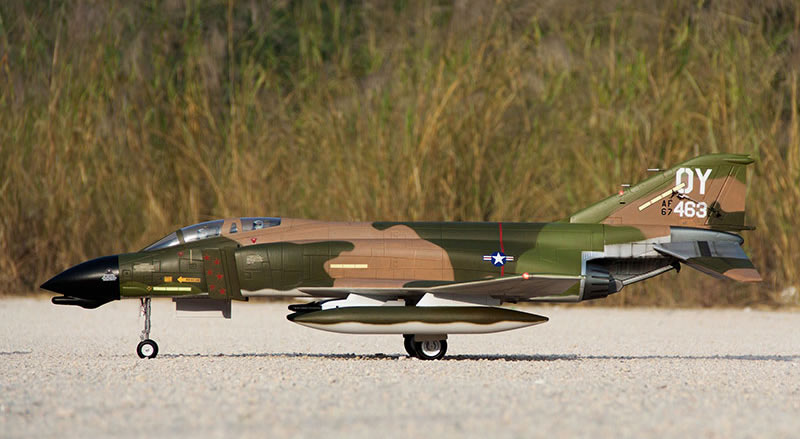

Representing the famed aircraft BuNos 66-463 operated by pilot Richard "Steve" Ritchie and weapons systems officer Charles "Chuck" DeBellevue when they scored their fifth kill together on May 10, 1972 over Vietnam, the Freewing 90mm F-4 arrives pre-painted in classic SEA (South East Asia) Camo and proudly wears the markings of the 555th TFS. BuNos 66-463 became a bona fide "MiG Killer", being credited for six aerial kills with five different flight crews. For piloting wanting to customize their F-4 with their own scheme, we recommend Callie-Graphics.com for all your custom adhesive vinyl decal needs, and we worked with her to ensure her decal sets match our Freewing 90mm F-4's proportions.

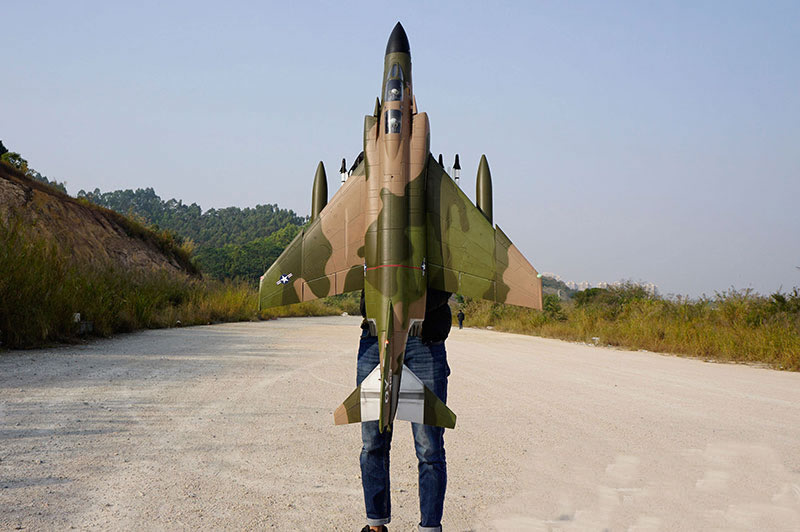

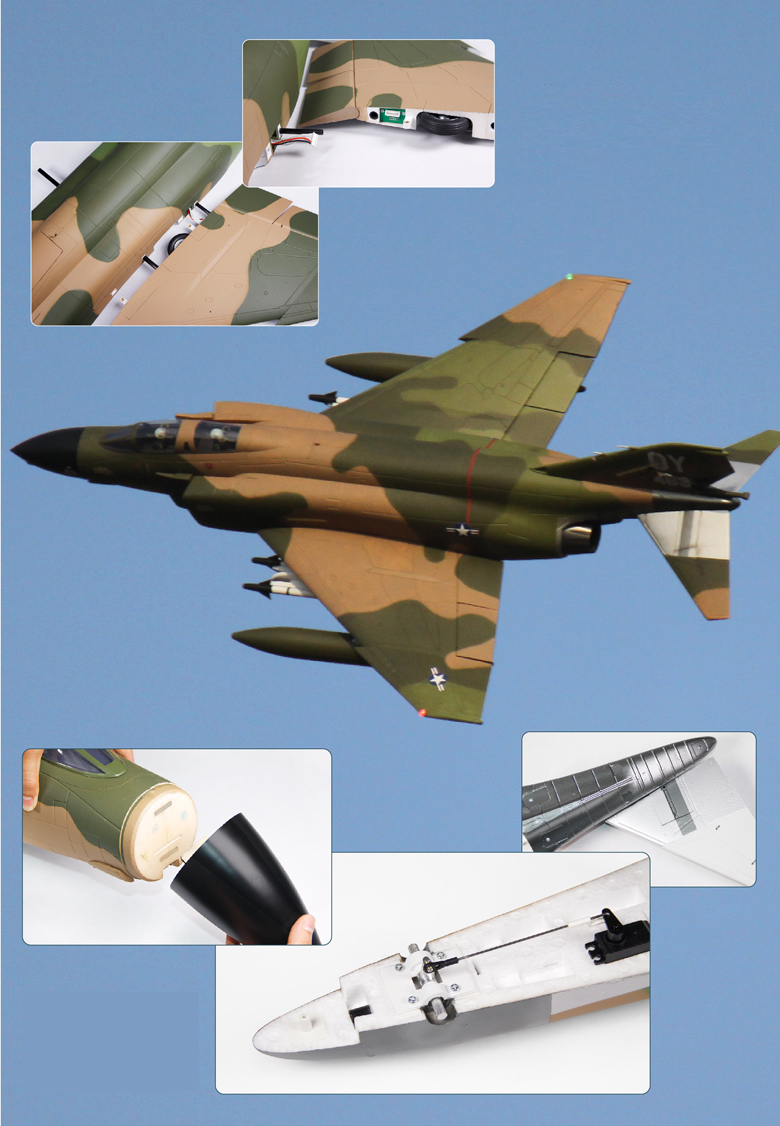

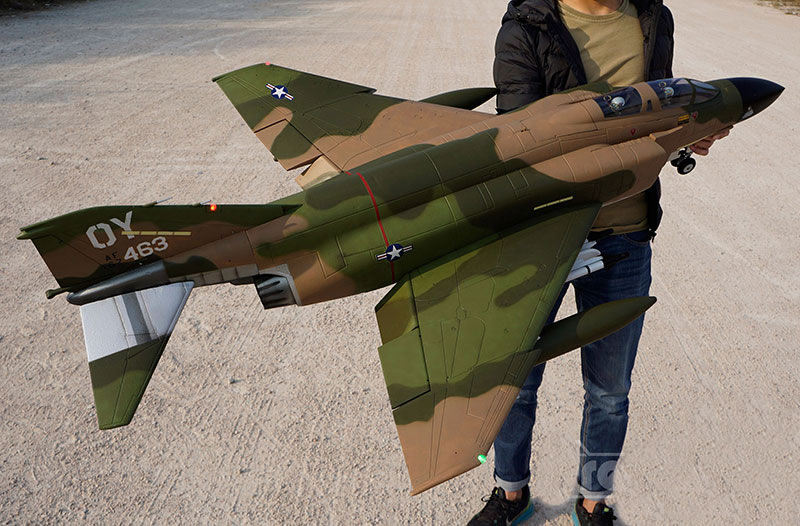

Such a large RC model aircraft remains easy to transport with magnetic removable fiberglass nose cone and removable wings with a convenient flexible wire harness that attaches at each wing root. Large flaps, brass ball links, reliable control hardware, and digital servos throughout the aircraft provide positive control, and a specially designed elevator mechanism incorporates two ball bearings for smooth rotation at all times.
The Freewing 90mm F-4 Phantom II is available in two power system versions. The Standard version requires a 6S 5000-6000 mAh LiPo battery, and is our top recommendation to pilots seeking the best balance between speed, thrust, and cost. The High Performance version requires an 8S 5000 mAh LiPo battery, and delivers increased vertical climbing performance and acceleration. The High Performance version is recommended for Advanced pilots only due to the aircraft's higher speed envelope and heavier flying characteristics.
FEATURES:
Two PNP options -- 6S or 8S power system
6S: 130A ESC manages the 9-Blade power system
8S: 150A ESC manages the 12-Blade power system

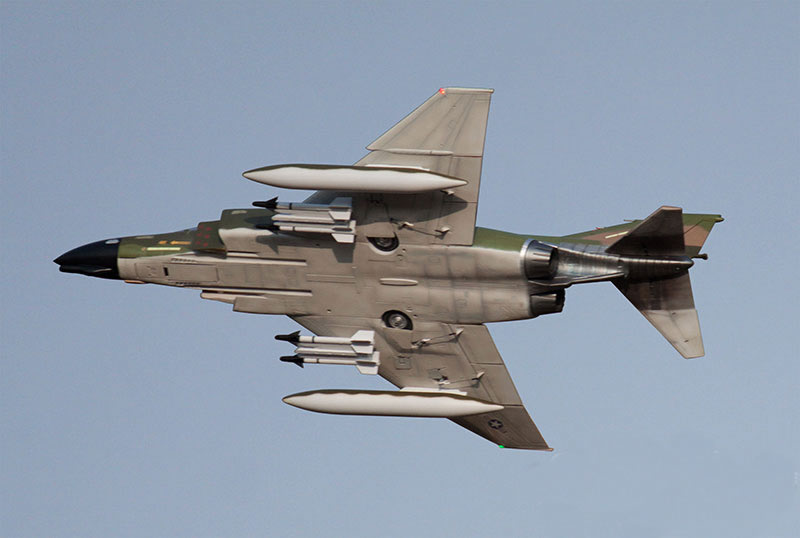

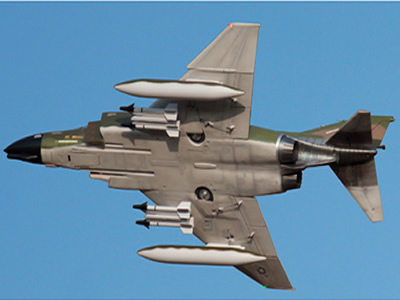

Removable ordnance (4x AIM-9 Sidewinder missiles and 2x magnetic fuel tanks)
Scale operating nose door and landing lights
Durable suspension struts for grass operation
Removable wings and stabilizers for convenient transport
Removable magnetic fiberglass nose cone
Digital servos throughout
INCLUDES:
Freewing F-4C/D Phantom II 90mm EDF Jet - PNP
freewing-model.com is a M2C(manufacturer to customer) sales website, it is factory price for all customers.
REQUIRES:
6 Channel radio - select a minimum 6 channel radio from our Radio Collection
6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector - we recommend the Admiral 6 Cell 5000 MAH LiPo with EC5 connector
6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
SPECIFICATIONS:
Wingspan |
1030mm / 40.15in |
Length |
1550mm / 61.02in |
Empty Weight |
2850g / 100.53oz (w/o battery) |
CG (Center of Gravity) |
190mm (7.5") from the leading edge of the wing at the root |
Power System |
6S 3748-1750kV Brushless Outrunner Motor |
Electronic Speed Control |
130A, EC5 Connector |
Propeller / EDF |
90mm 9-Blade EDF |
Servos |
Coming Soon |
Landing Gear |
Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
Required Battery |
6S 22.2V 5000mAh LiPo with EC5 connector (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon Reinforced |
Material |
EPO Foam |
Skill Level |
Advanced/Expert |
Build Time |
3-4 Hours |
Recommended Environment |
Outdoor, 300+ foot paved runway or short manicured grass |
