Freewing F9F-8 Cougar Super Scale 80mm EDF PNP Jet RC Airplane
Freewing F9F-8 Cougar Super Scale 80mm EDF PNP Jet RC Airplane
1.it is with 100A ESC and powerful 3658-2150Kv 80mm inrunner motor, EC5 Connector and 80mm EDF with 12-Blade Fan
2.it requires 7 Channel Radio,7 Channel Receiver
3.it requires 6S 22.2V 4000-6000mAh LiPo with EC5 Connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This Product is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.
The Freewing F9F-8 Cougar Super Scale 80mm EDF PNP RC Airplane is available in stock
we will ship the package box from May.25th.2023.
The Freewing F9F Cougar 80mm jet is a next-gen 80mm EDF jet loaded with amenities and details normally reserved for 90mm class jets. This PNP version of the Cougar includes ultra-scale CNC landing gear, quick disconnect wings, thrust-reversing ESC, newly designed 12B EDF, scale LED light package, and a new powerful inrunner motor all coming together for a terrific new generation 80mm EDF jet brought to you by Freewing Model China.
Quick-Install/Release Wings
The Freewing F9F Cougar PNP includes a screwless quick-release wing design that makes field assembly quick and easy.
Super-Scale CNC-machined Landing Gear
Freewing F9F Cougar 80mm jet comes with the most scale CNC-machined gear ever produced in the 80mm class, accentuating the scale details you will find throughout the model.
Powerful Performer
With the 3658-2150Kv 80mm inrunner motor the F9F Cougar has the power and performance to take you to the type of heights you desire in a new gen EDF jet.
EDF Power system Pre-Installed (PNP Only)
For the PNP version, Tackle the skies with the added insuarance a quality ESC can offer you.
6 LED Lights with Controller
The Cougar comes pre-installed with 6 scale LED lights with controller so you can configure your lighting the way you prefer.
Newly Designed 12-Blade
A newly designed 12-Blade EDF was developed for efficiency, improving performance with the smooth jet whine you've come to enjoy in modern EDF jets.
Features:
NEW! Quick-Install/Release wings make assembly at the field quick and easy
NEW! New, super-scale CNC-machined and painted landing gear (First 80mm jet with ultra scale landing gear)
NEW! 90mm detail level in an 80mm jet - Highly scale details are included on this 80mm jet that are normally reserved for 90mm jets
NEW! A more powerful 3658-2150Kv 80mm inrunner motor
NEW! A newly designed 12-Blade EDF for better thrust, sound, and efficiency
Fully enclosed servo operated landing gear doors
10 metal gear servos (the most of any 80mm jet)
6 scale LED lights with LED light controller
100A Thrust reversing ESC with 7A BEC
Package Includes:
Freewing F9F Cougar 80mm jet PNP version RC Jet
Servos, Power motor EDF system, ESC and Landing gear , pre-installed
Requires:
7 Channel radio - select a minimum 7 channel radio
7 Channel receiver - select a minimum 7 channel receiver
6 Cell 22.2V 4000 - 6000 mAh LiPo Battery with EC5 connector
Minimum 6 Cell battery charger - select a minimum 6 Cell battery charger
SPECIFICATIONS:
| Scale | 1/10 |
| Wingspan | 1050mm / 41.3in |
| Length | 1436mm / 56.5in |
| Flying Weight | ~2420g / 85.3oz |
| CG (Center of Gravity) | 106mm from the leading edge of the wing's root |
| Power System | 3658-2150Kv Brushless Inrunner Motor |
| Electronic Speed Control | 100A ESC with EC5 Connector |
| Propeller / EDF | 80mm EDF with 12-Blade Fan |
| Servos |
|
| Landing Gear | Super-scale CNC-machined and painted landing gear |
| Required Battery | 6S 22.2V 4000-6000mAh LiPo with EC5 Connector |
| Required Radio | 7+ Channel |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Flaps | Yes |
| Lights | Yes |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Intermediate |
| Build Time | 1 Hour |
| Recommended Environment | Outdoors |
Freewing F9F-8 Cougar Super Scale 80mm EDF Manual download:
URL:https://www.freewing-model.com/download/80mm_F9F-8_Cougar.pdf

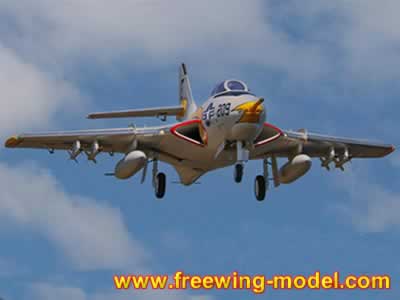

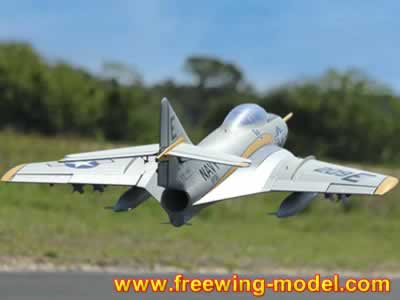

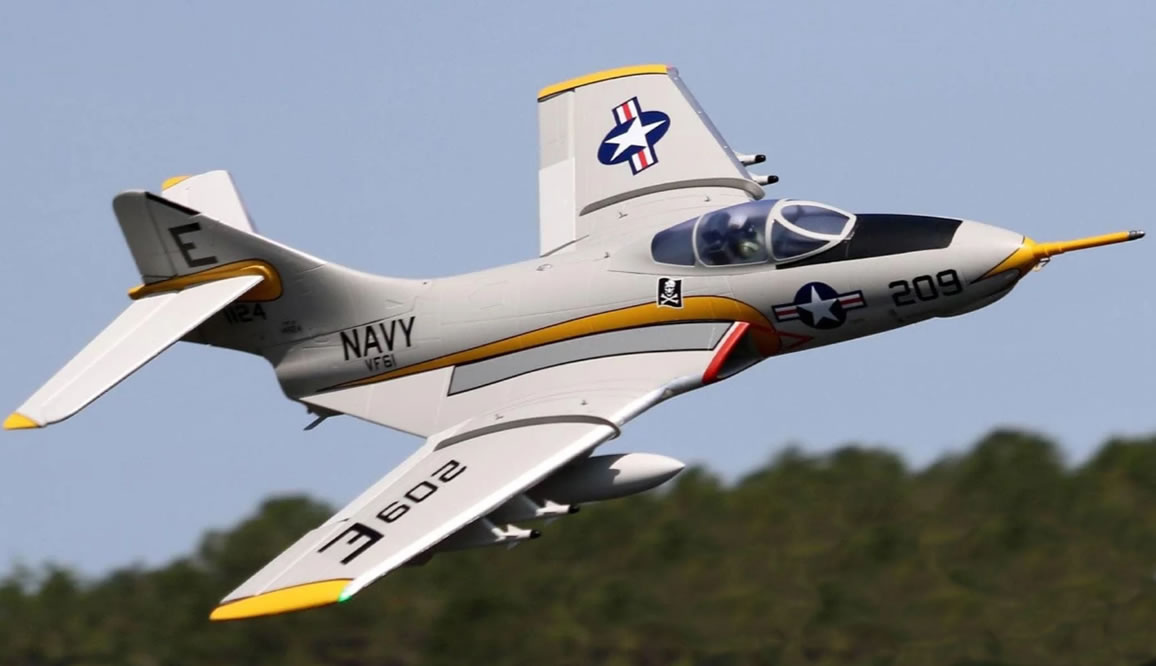

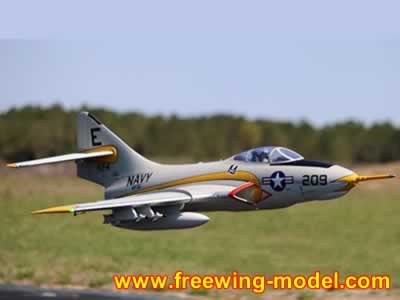

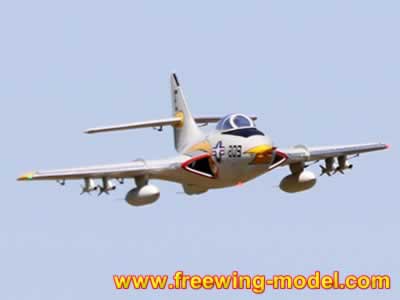

Freewing F9F-8 Cougar Super Scale 80mm EDF Flight Image
