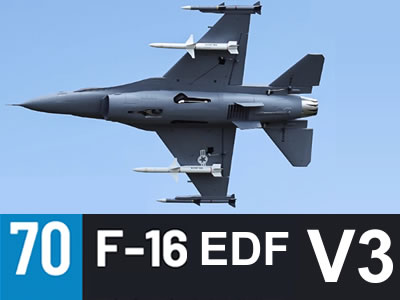

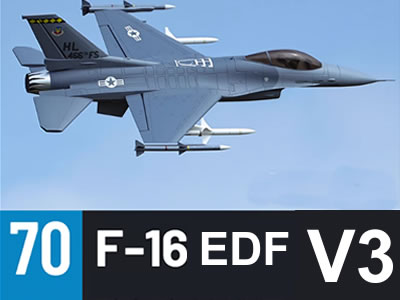

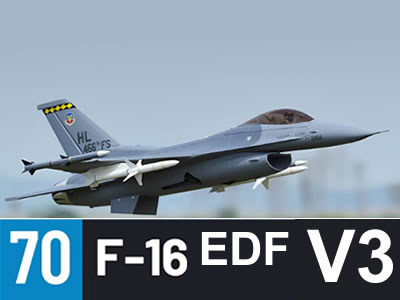

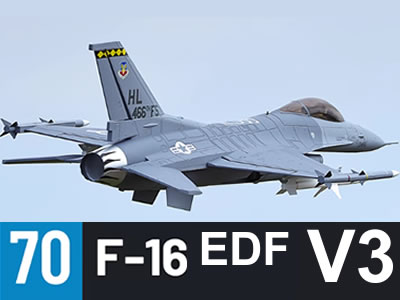

Freewing F-16 Falcon V3 6S High Performance 70mm EDF ARF Plus RC Airplane
1. with a 2957-2210Kv Inrunner motor, 80A ESC thrust reverse function.
2.it requires 6 Channel Radio,6 Channel Receiver
it requires 6 Cell 22.2V 3600-4000 mAh LiPo battery with EC5 connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Note:This is the ARF+ version for pilots who wish to install their own power system. All primary electronics including servos and upgraded shock absorbing landing gear come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
This is High Performance V3 which comes with a 2957-2210Kv Inrunner motor, 80A ESC thrust reverse function, upgraded Shock-Absorbing struts, 70mm 12 blade EDF and several other upgrades.
The F-16C Fighting Falcon is a single-engine multi-role fighter aircraft originally developed for the United States Air Force (USAF). Designed as an air superiority day fighter, the aircraft evolved into a successful all-weather multirole platform. The F-16C features an internal M61 Vulcan cannon and multiple locations for mounting weapons and other mission equipment. Operating in nearly 30 countries to this day, the F-16 has distinguished its place in aviation history.
Freewing has modeled this brilliant aircraft in EPO foam with a 70mm electric ducted fan (EDF) power system. With a 1306mm length and 878mm wingspan, this 1/12 scale flying replica including many exciting features! An accurate scale outline with sharp surface details and panel lines make this model stand out at your airfield. Removable main wings and a magnetic nose cone make transport very convenient. The cockpit battery bay cover is secured with a sliding latch to prevent separation during flight, and the entire aircraft is reinforced with strategic placement of carbon tubes to withstand vigorous flying maneuvers. A control board helps to consolidate all the wiring for a clean battery bay. For pilots who want an extra scale touch, an optional ordnance set is sold separately, containing two AMRAAM and two missiles.
The Freewing 70mm F-16C V3 features electric retractable landing gear for lower drag and better scale appearance during flight. The aircraft is designed for stability, strong vertical climbing performance, and short takeoff distance. The aircraft can also maintain a high alpha of 30 degrees to demonstrate its superior low speed stability. We recommend the 6S Pro version for skilled intermediate or advanced pilots with experience flying at least two EDFs.
We are proud to feature this exciting aircraft in the modern three tone gray US Air Force base colors, and three decal sets are included inside the box for you to choose from to customize your model from various actual Air Force squadrons. Visit www.callie-graphics.com to purchase other optional decal sets for this model.
Horizontal Stabilizer Upgraded to Full Flying Stab
This Freewing V3 F-16 now comes with a full flying stabilizer instead of standard elevators for more pitch authority. Master the High Alpha maneuver!
Freewing F-16 V2 90mm EDF Jet 8S PNP Jet
Freewing F-16 V2 90mm EDF 6S PNP Jet
Freewing F-16 V2 90mm EDF ARF Plus Jet
Hardware Updated to Ball Links
Now the hardware is updated with ball links for a more confident, secure connection to each control surface.
Updated Weapon Mounting System
The F-16's main wing weapon mounting system was ugraded from glue to guide rails for easy removal and installation.
Now With Thrust Reverse
The Freewing F-16 V3 comes with an updated 80 amp ESC with thrust reversing functionality to slow and decrease your landing roll distance.
FEATURES:
NEW! Horizontal stabilizer has been upgraded to a full flying stab
NEW! Hardware all updated to ball links
NEW! Main wing weapon mounting system changed from glue to guide rails for easy removal and installation
NEW! Vertical stabilizer now uses screws for easy assembly
NEW! Improved nose landing gear mount
NEW! 80A ESC with Thrust Reversing
Model officially licensed by Lockheed Martin
High performance 12-blade EDF with 2957-2210Kv In-Runner Motor
Upgraded shock-absorbing struts
Popular Aggressor Arctic camo from the 354th Aggressor Squadron
Durable EPO Foam and Reinforced Construction
Realistic Shape and Detailing
Electric Retractable Landing Gear
Removable Wings and Magnetic Nose Cone for Easy Transport
Minimal Assembly
Optional Weapon Set
Includes:
Freewing F-16 V3 70mm EDF Jet - ARF PLUS
Requires:
- Brushless motor, EDF unit and ESC
- 6 Channel Radio - Select a minimum 6 channel radio
- 6 Channel Receiver - Select a minimum 6 channel receiver
- 4 to 6 Cell 14.8V 3600 - 4000 mAh Li-Po Battery with EC5 Connector
- 4 to 6 Cell Compatible Battery Charger - Select a minimum 4 cell (4S) charger
Wingspan |
878mm / 34.57in |
Length |
1306mm / 51.4in |
Flying Weight |
2000g (approx) |
CG (Center of Gravity) |
90mm / 3.5" from the leading edge of the wing at the root |
Power System |
2957-2210Kv Brushless In-Runner Motor |
Electronic Speed Control |
80 Amp with EC5 Connector |
Propeller / EDF |
70mm 12-Blade |
Servos |
|
Landing Gear |
Retractable shock-absorbing struts |
Required Battery |
6 Cell 22.2V 4000mAh Li-Po battery with EC5 Connector |
Required Radio |
6+ CH 2.4GHz Full Range Transmitter |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
No |
Lights |
No |
Hinge Type |
Foam |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
2+ Hours |
Recommended Environment |
Outdoor |
