Freewing J-10A V2 Blue Vigorous Dragon 90mm Jet ARF Plus servos RC Airplane
Freewing J-10A V2 Blue Vigorous Dragon 90mm Jet ARF Plus servos RC Airplane
1.it requires 5+ Channel Range Radio and 5+ Channel Range Receiver
2,it requires EDF Motor system and ESC
3,it requires 6 Cell 22.2V 5000mAh Li-Po battery with EC5 Connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area with us.
This Products is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.

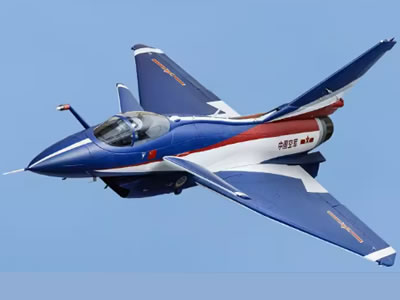

Freewing J-10A V2 Blue 90mm EDF Jet from Freewing Model- ARF PLUS Servos Version
Note: This is the ARF+ Servos version for pilots who wish to install their own power system. All primary electronics including servos and landing gear retracts come pre-installed,
just add your own power system (EDF, motor, and ESC,Lipo Battery) to fly.
The J-10A V2 Blue 90mm EDF Jet is a medium-weight, single-engine multirole aircraft designed for air-to-air combat and other various strike missions. Produced by the Chengdu Aircraft Corporation (CAC), the J-10A V2 is used in the People's Liberation Army Air Force (PLAAF) and became operational in 2006. Utilizing its delta-wing aerodynamic configuration with canards and fly-by-wire system, the J-10A is capable of turning in a much tighter radius than conventional aircraft.
The Freewing J-10A V2 Blue 90mm EDF Jet is a highly detailed, scale version of the real J-10A, and features the J-10A V2 Red Hawk livery. One of the most detailed releases from Freewing, the J-10A V2features 11 daylight bright LED lights, including one to illuminate the Heads Up Display (HUD), many scale detail parts, as well as a quick-release ordnance package. Additionally, the Freewing J-10A utilizes screwless, quick-release wings making transport to and from your flying site a breeze.
Super Scale Details Throughout
The Freewing J-10A V2 Blue 90mm JET is incredibly well appointed for an EPO model with several attention-to-detail scale pieces.
Screwless, Quick-Release Wings
The Freewing J-10A V2 comes with screwless, quick-release wings for fast and easy access for transport or storage.
Illuminated HUD Panel
A hint of a new era in the super scale EPO foam class, the J-10A includes an illuminated HUD panel.
Ordnance Included
The quick-release ordnance comes included right out of the box to finish off that super scale appeal.
Functioning Canards
This J-10A V2 comes with fully-functional canards enhancing the scale detail emulating the full scale version.
Spring-Loaded Top Cheaters
Incorporating an innovative ammenity, Freewing has added spring-loaded top-side cheaters that only open and close based on air pressure differential.
Retracts with CNC-Machined Shock-Absorbing Struts
Another primary scale appeal and feature of any detailed 90mm EDF jet, the J-10A comes with electric retracts including CNC-machined shock-absorbing struts.
11 Units Daylight-Bright LED Lights
The 11 units Daylight-Bright LED lights complete the package of scale detail and appeal in dawn, daylight and dusk hours.
Features:
- Screwless, quick release wings for fast and easy transport and storage
- Illuminated Heads Up Display (HUD) adds a new level of super scale detail
- Electronic, retractable landing gear with CNC-machined aluminum, shock absorbing struts
- Spring-Loaded Top Cheaters
- 11 Daylight bright LED lights
- Scale details include antennas, pitot tube, cockpit detail, lighting and ordnance
- Conveniently designed quick detach ordnance included right out of the box
- Nylon hinges on all control surfaces
- Removable, magnetic nose cone for convenient transport and replacement
Includes:
- Freewing J-10A V2 Blue Blue Vigorous Dragon 90mm EDF Jet - ARF Plus Servos Version
- Electronic retractable landing gear (installed)
- Servos, LED Lights (installed)
It Requires:
- Brushless motor System, EDF unit and ESC
- 5 Channel radio (6 for thrust reversing)
- 5 Channel receiver - select a minimum 5 channel receiver
- 6 Cell 22.2V 5000 - 6000 mAh LiPo battery
- 6 Cell compatible battery charger
| Model Scale | 1/10 |
| Wingspan | 940mm / 37.0in |
| Length | 1530mm /60.2in |
| Empty Weight | 3235g / 7lbs 2oz (w/o battery) |
| CG (Center of Gravity) | 163mm (6.4") from the leading edge of the wing at the root |
| Power System | 6-8S Inrunner Brushless Motor (required) |
| Electronic Speed Control | 120A (required) |
| Propeller / EDF | 90mm 12-Blade EDF (required) |
| Servos |
|
| Landing Gear | Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
| Required Battery | 6 Cell 22.2V 5000-6000 mAh LiPo with EC5 connector |
| Required Radio | 5 Channel (6 for thrust reverse) (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Canard | Yes |
| Flaps | No |
| Lights | Yes |
| Hinge Type | Nylon Reinforced |
| Material | EPO Foam |
| Skill Level | Intermediate/Advanced |
| Build Time | 3-4 Hours |
| Recommended Environment | Outdoor, 150+ foot paved runway or short manicured grass |
Freewing J-10A V2 Blue Vigorous Dragon 90mm Jet ARF Plus RC Airplane Manual PDF File download:
URL:Download Here

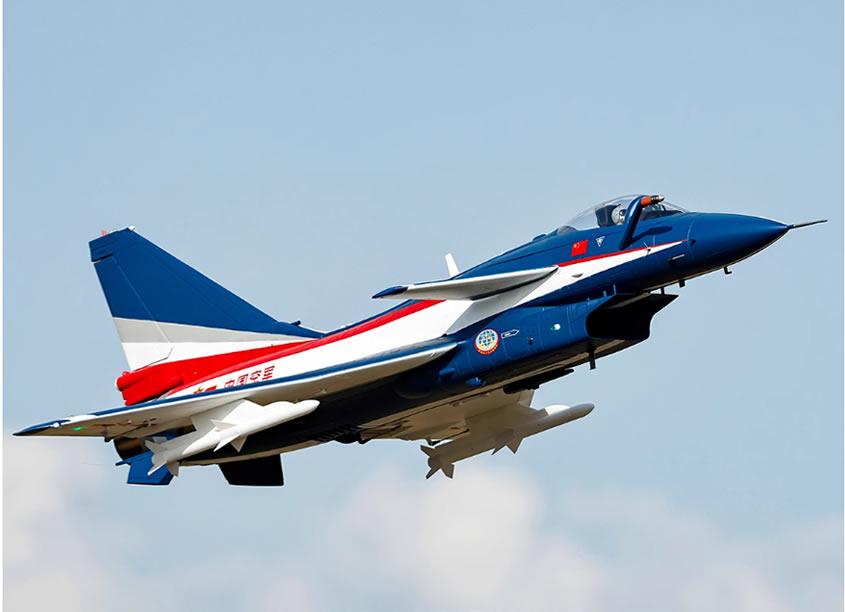

Freewing J-10A V2 Blue Vigorous Dragon 90mm EDF Sport Jet Flight Image and flight video:
