Freewing F-22 Raptor 70mm EDF Jet PNP RC Airplane

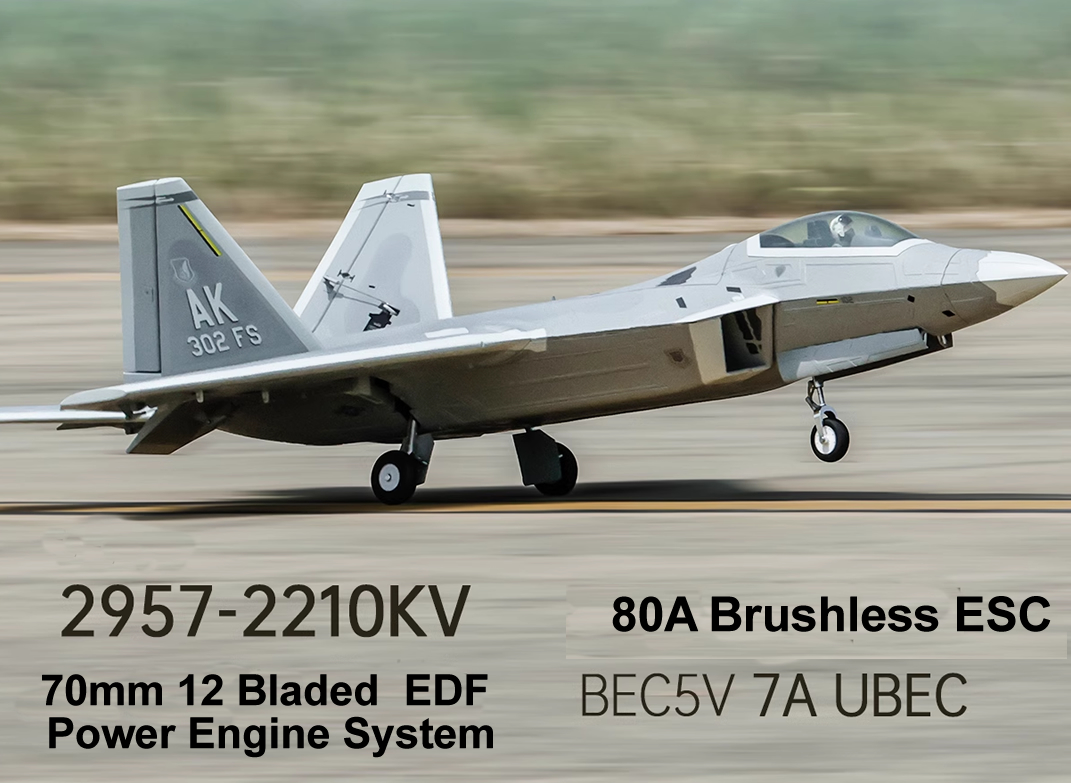

1.The 2957-2210KV Motor EDF Power system and 80A Brushless ESC with 7A UBEC, pre-installed inside.

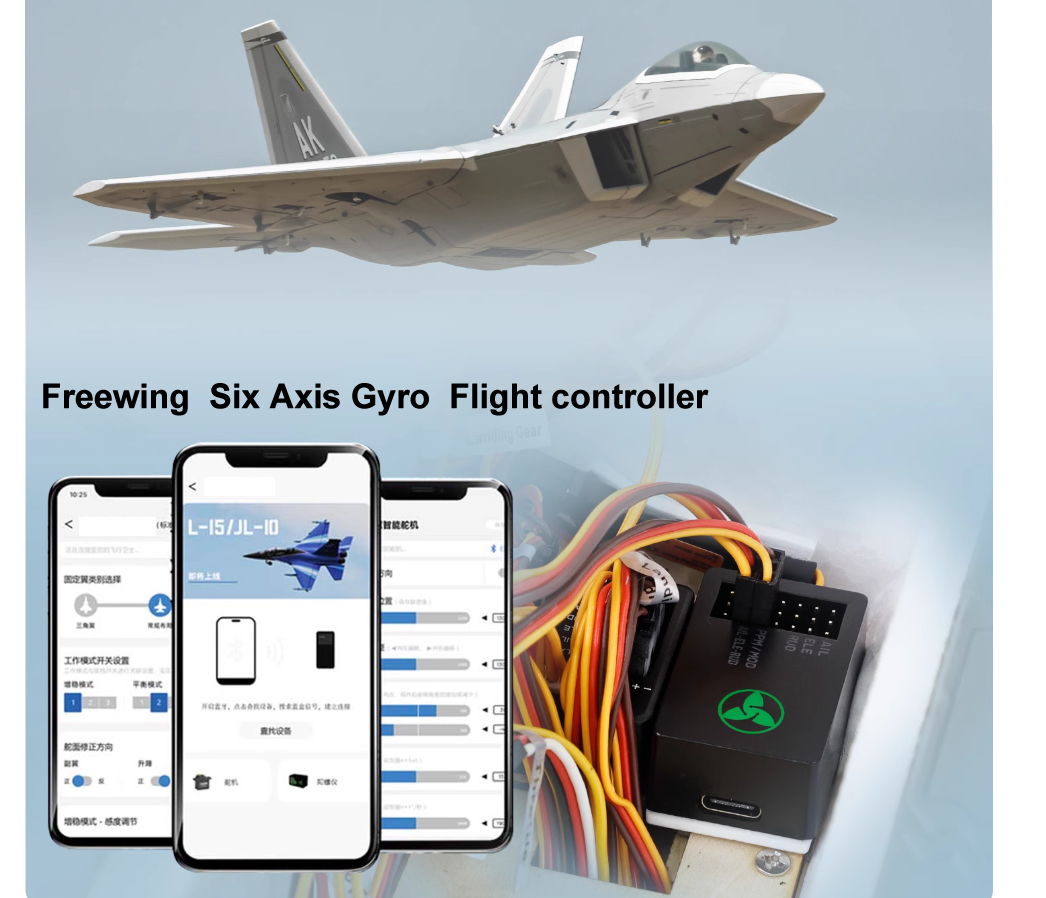

2.it requires 6 Channels Radio,6 Channels Receiver，7 channels For Gyro Function
3.it requires 3500-5000mah liPO batter and Lipo battery charger
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
This Products is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.

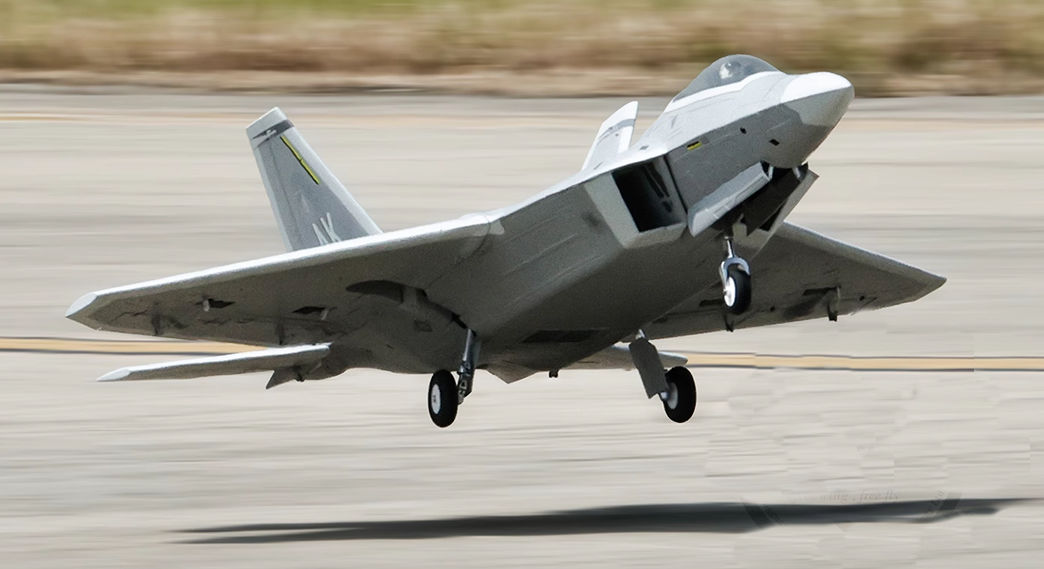

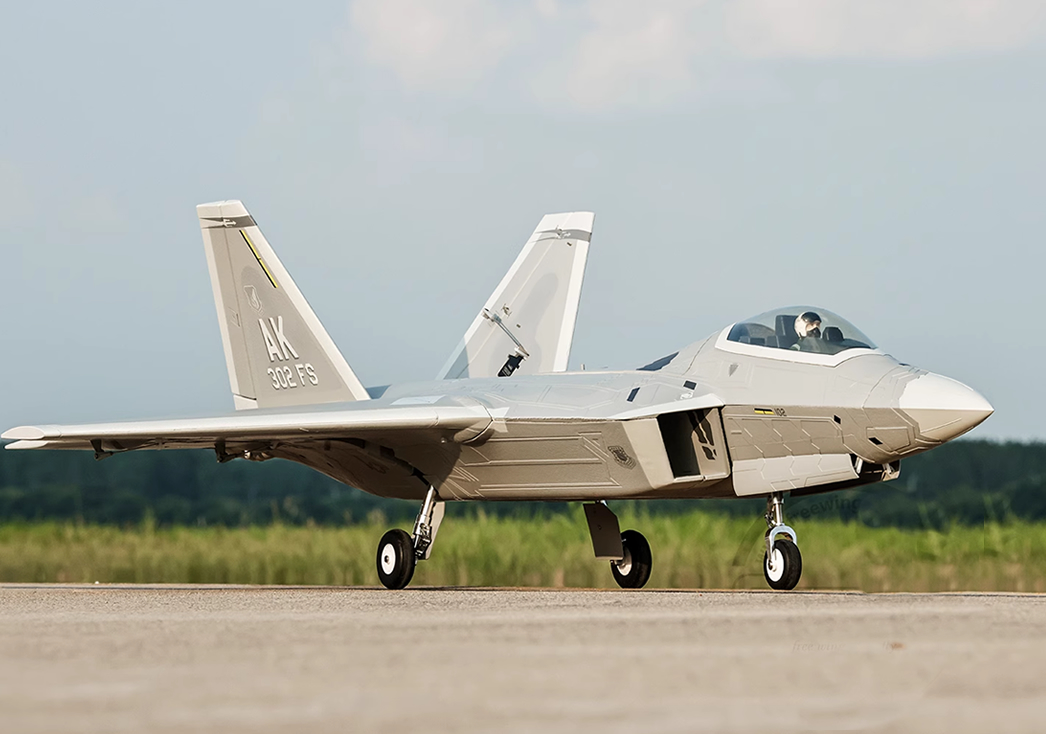

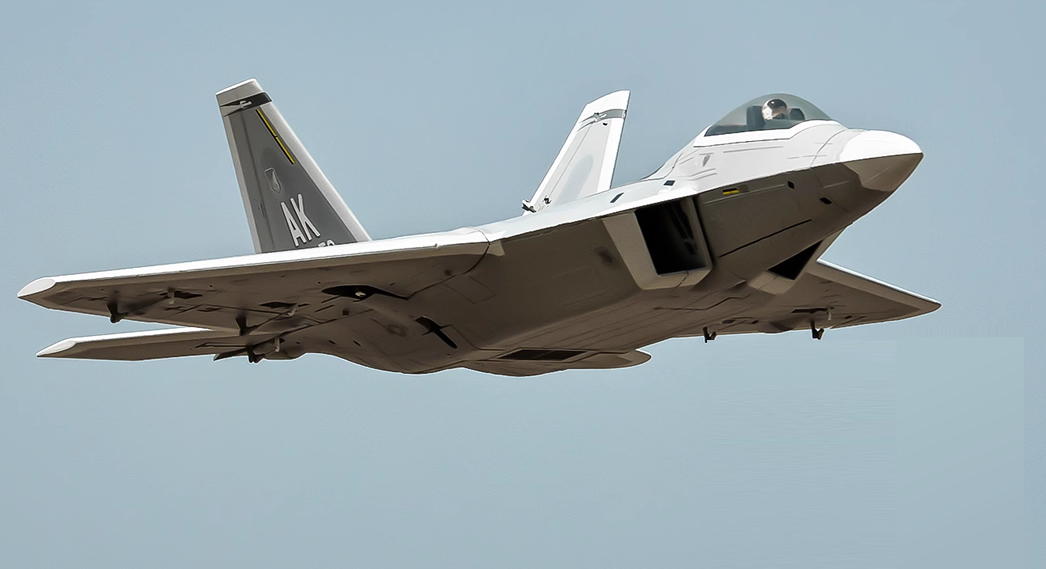

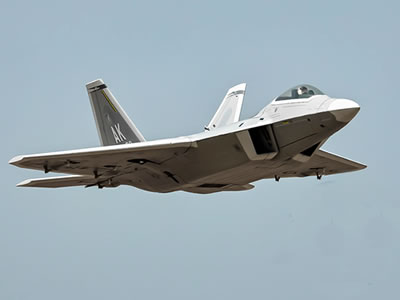

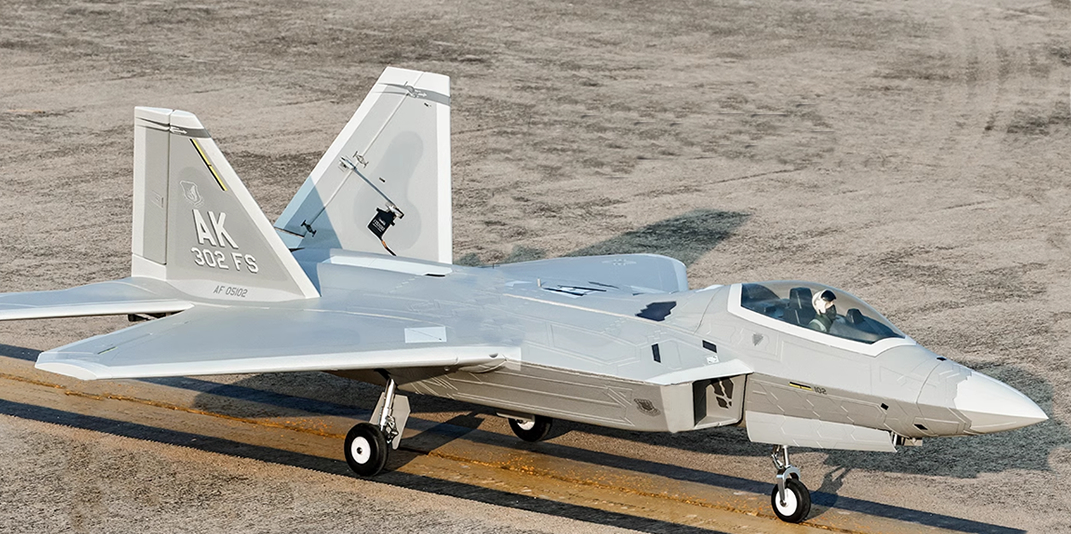

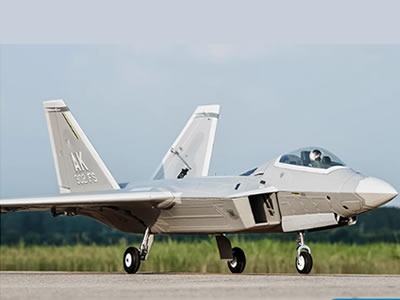

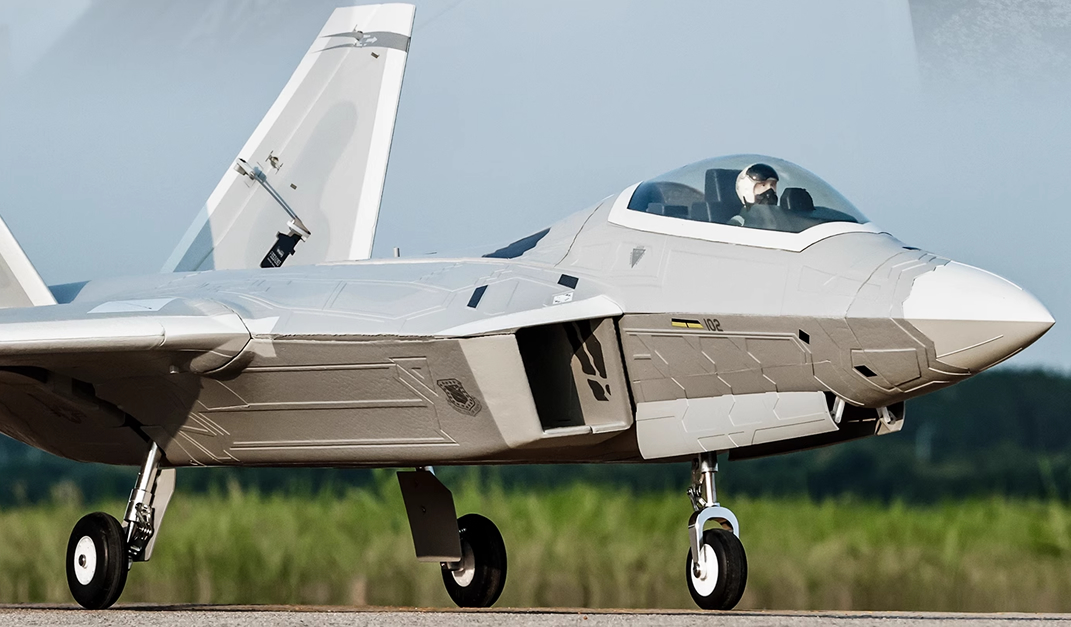

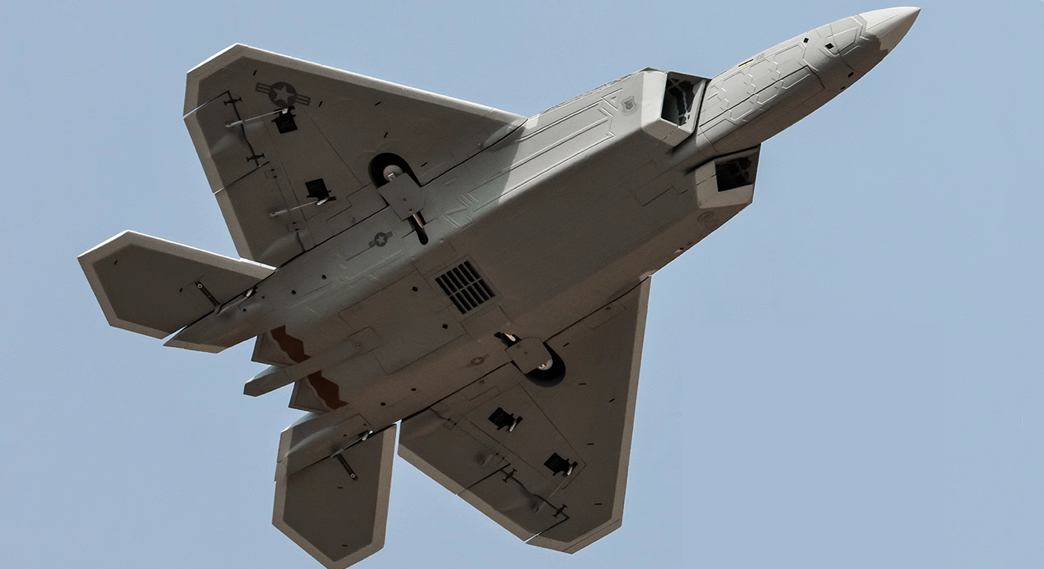

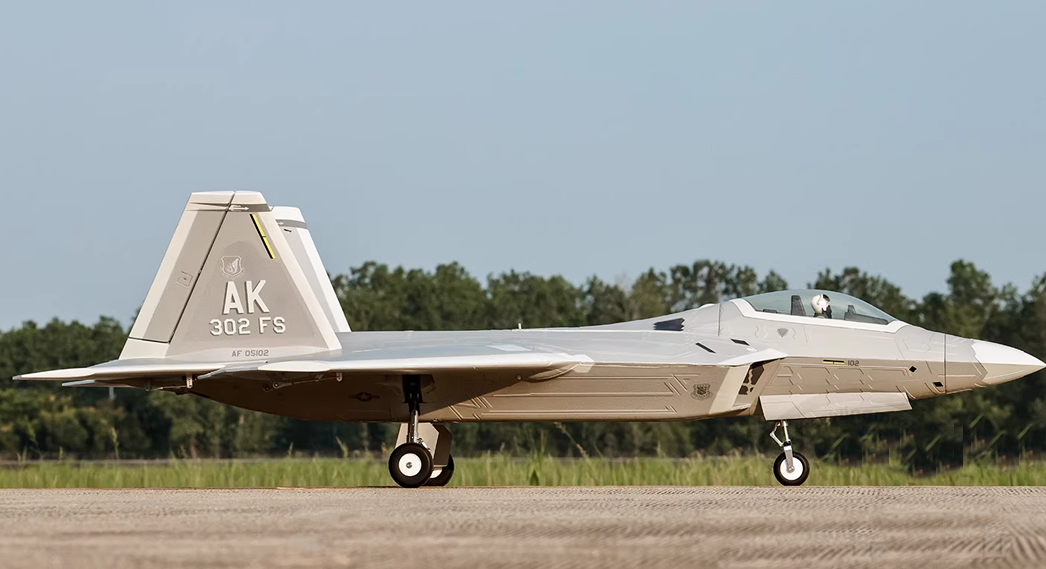

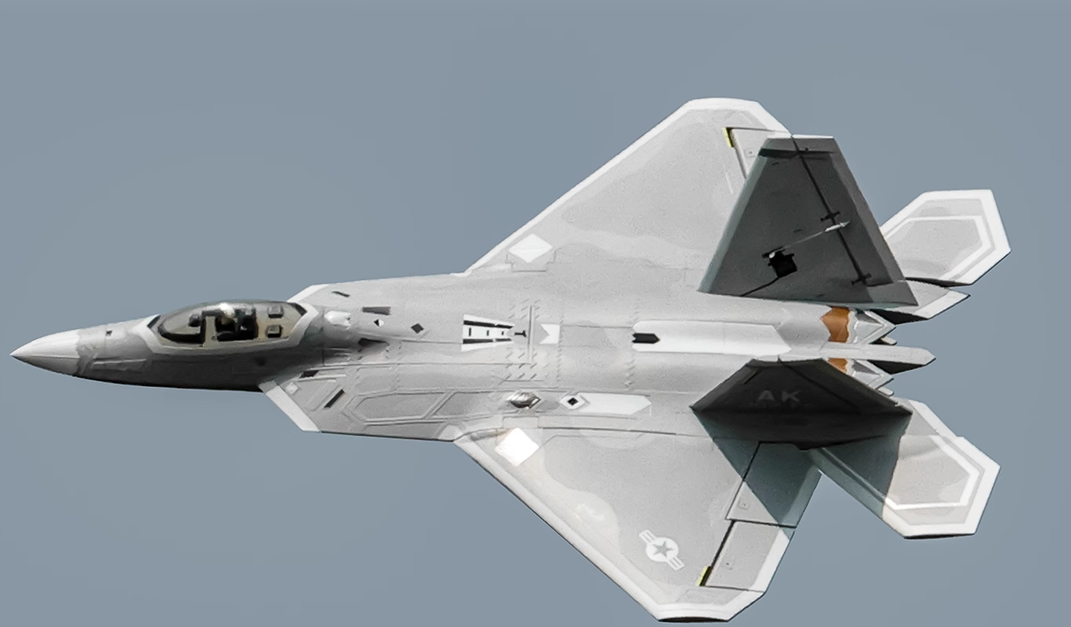

Freewing F-22 Raptor 70mm EDF Jet
is designed to captivate with its scale realism and ease of use. Featuring highly detailed surfaces with molded-in panel lines and sequenced nose gear doors, this model delivers an authentic, visually stunning experience. The screwless, quick-release main wings make assembly and transport effortless, while CNC-machined aluminum shock absorbing struts help ensure smooth landings. Powered by a 12-blade 70mm EDF power system that offers reliable performance and precise control, the F-22 is perfect for pilots seeking both speed and agility in the air.Whether you're a seasoned EDF pilot or looking to take your first steps into the world of jet-powered flight, the 70mm EDF F-22 delivers the performance, realism, and convenience you need to make every flight unforgettable.
Quick Release Wings Enjoy effortless assembly and disassembly with the innovative quick release wing system. |
Highly Detailed Highly detailed surfaces with molded panel lines for a realistic appearance. |

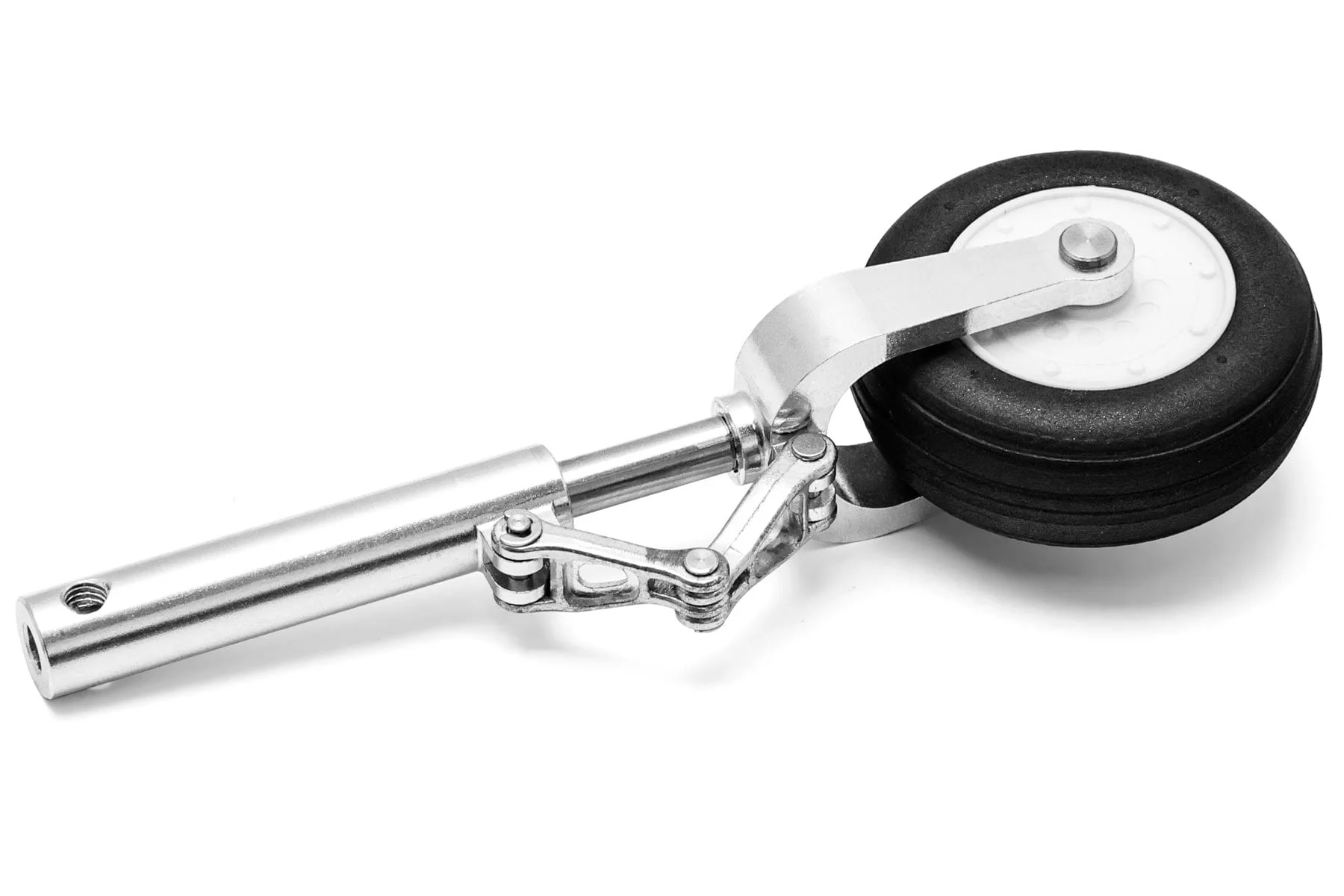

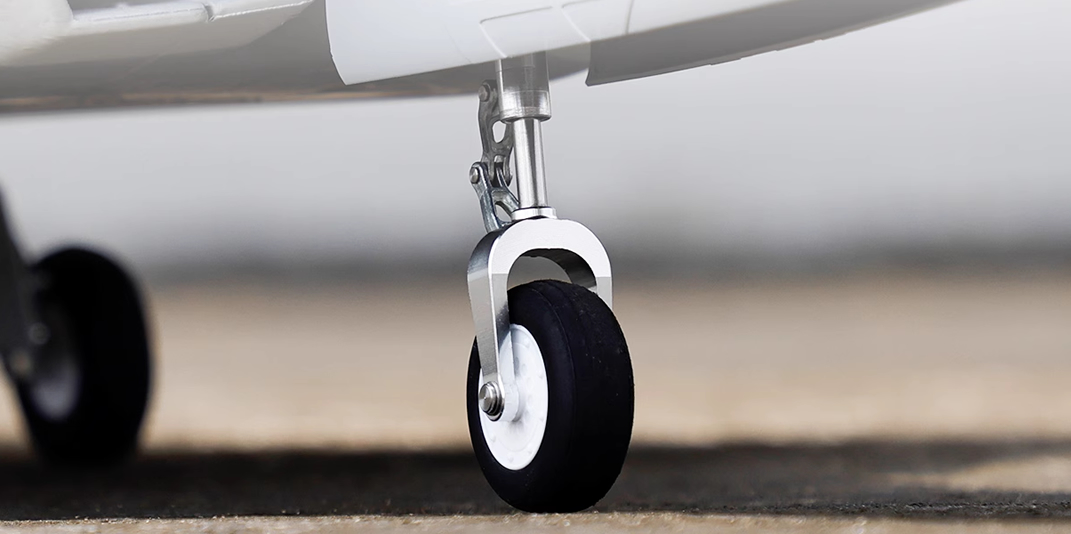

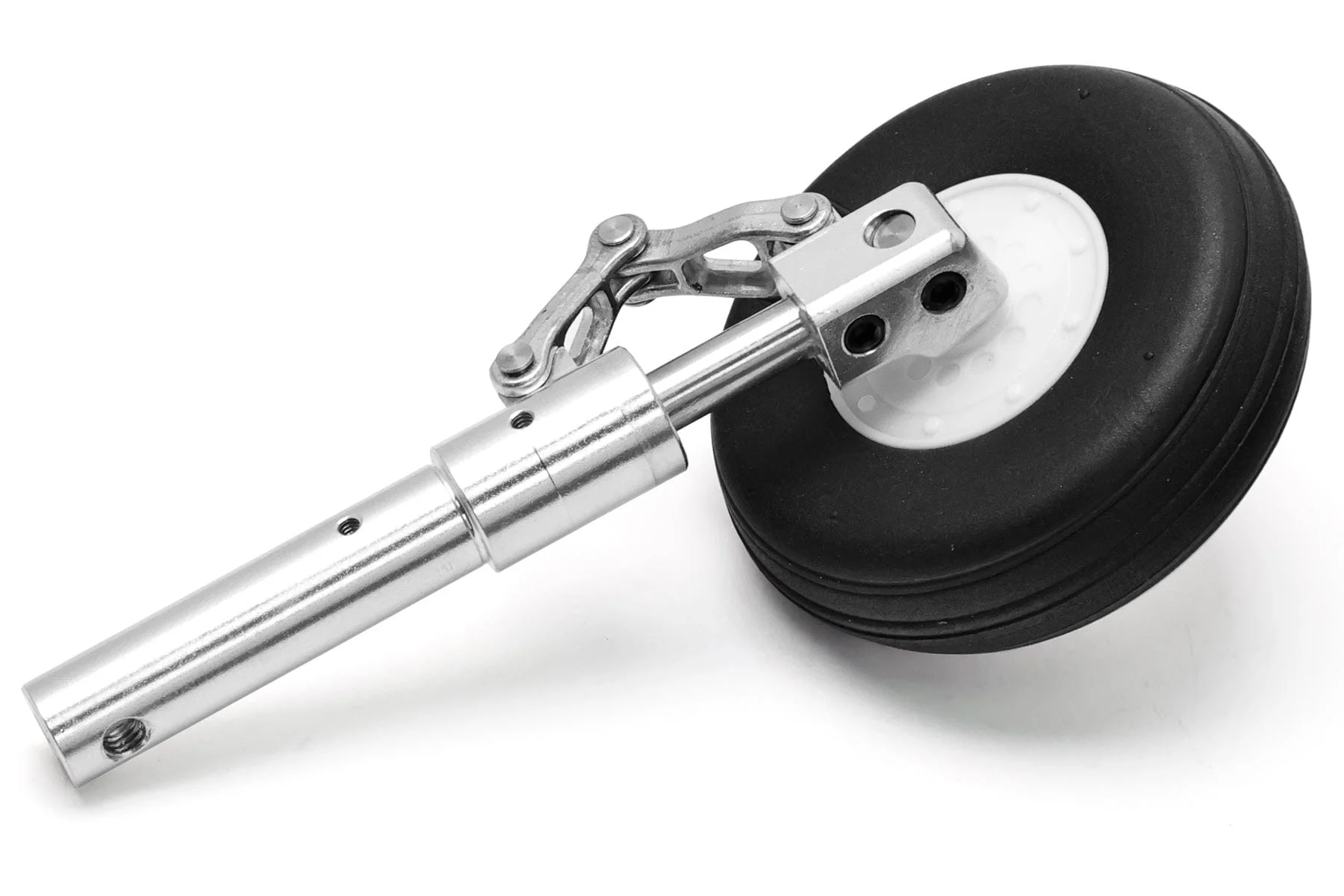

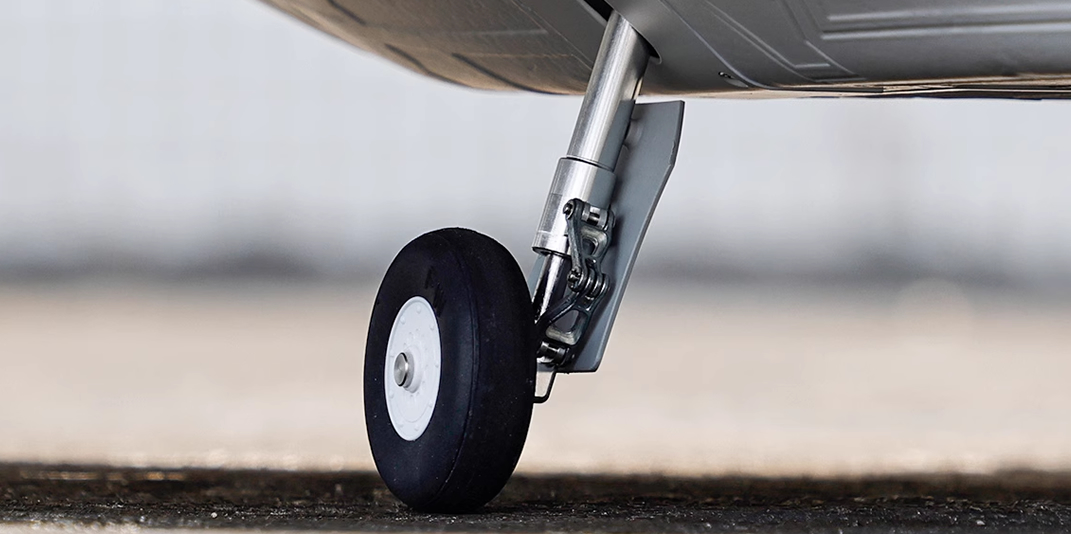

CNC-Machined Aluminum Struts CNC-machined aluminum shock absorbing struts accentuate the scale appearance and help you achieve smooth landings. |
Well-Protected Plastic corner protection located in key areas to help prevent hangar rash. |
Sequenced Nose Gear Doors Sequenced nose gear doors were added for enhanced scale realism and lower drag. |
Powerful Performer Impressive power and speed with the 2957-2210Kv inrunner motor, 12 blade EDF and thrust reversing with the included 80A ESC. |
Features:

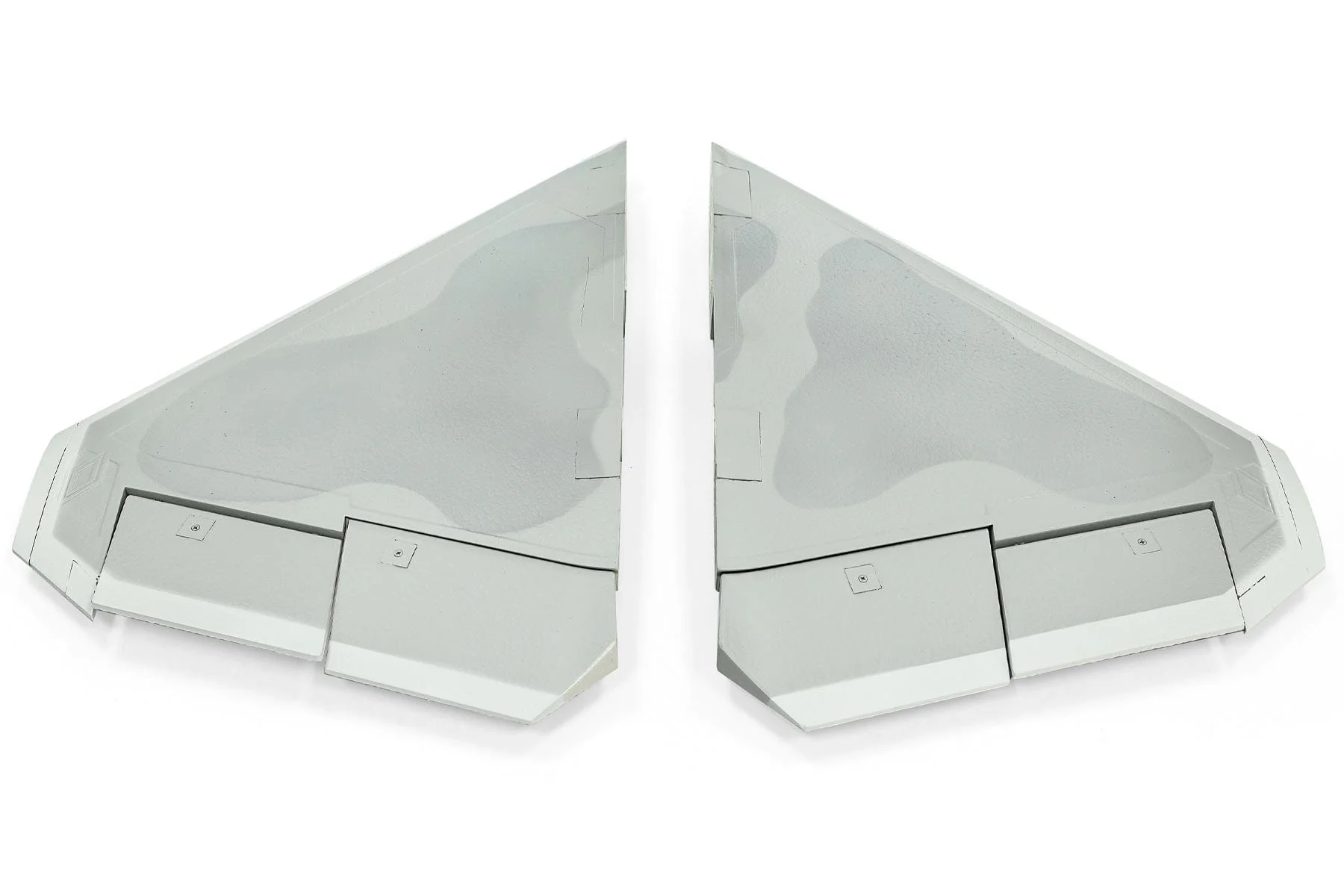

- Screwless, quick-release main wings for easy assembly and transport
- CNC-machined aluminum shock absorbing struts accentuate the scale appearance
- Sequenced nose gear doors for enhanced scale realism
- Highly detailed surfaces with molded panel lines for a realistic appearance

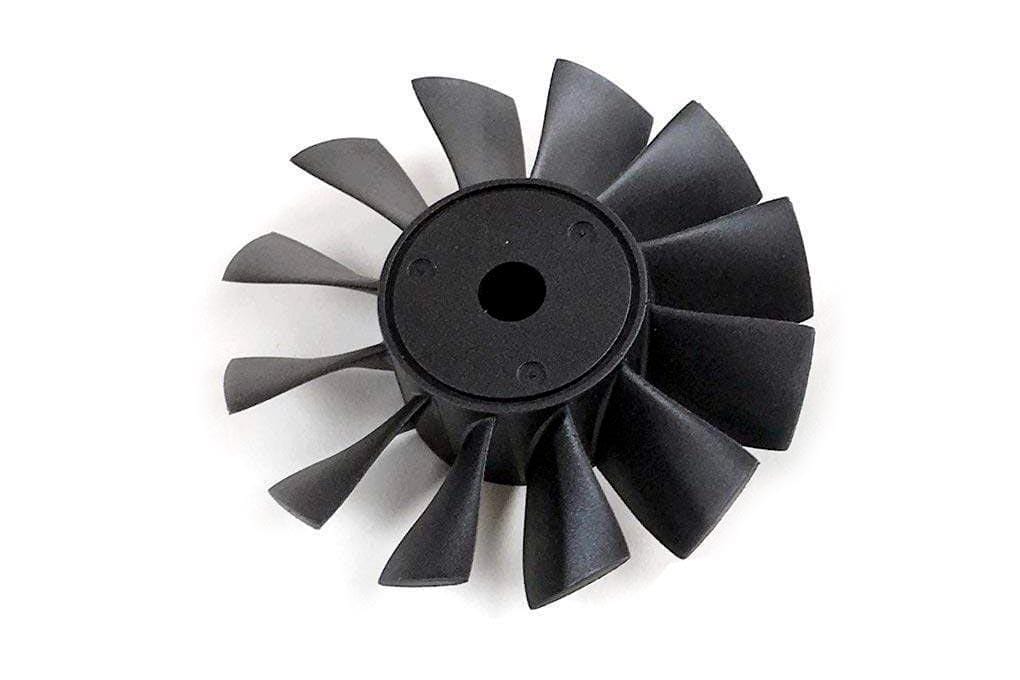

- 12-blade 70mm EDF for powerful, smooth thrust
- 2957-2210Kv Inrunner Motor for high-performance speed and efficiency

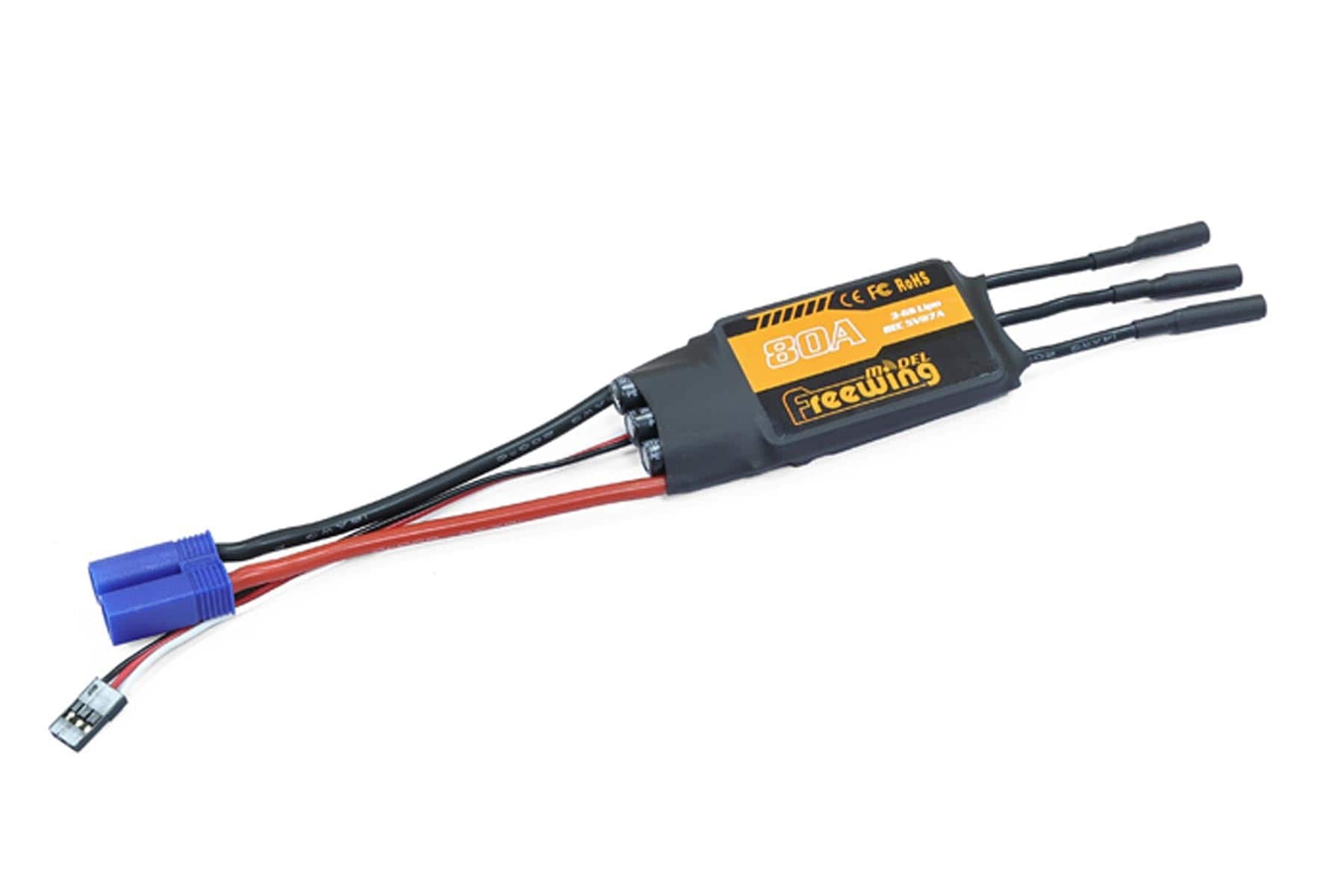

- 80A ESC with thrust reversing, 7A UBEC and EC5 connector for advanced control
- Plastic corner protection located in key areas like intake leading edges, wing tips and the trailing edge of the fuselage to help prevent hangar rash

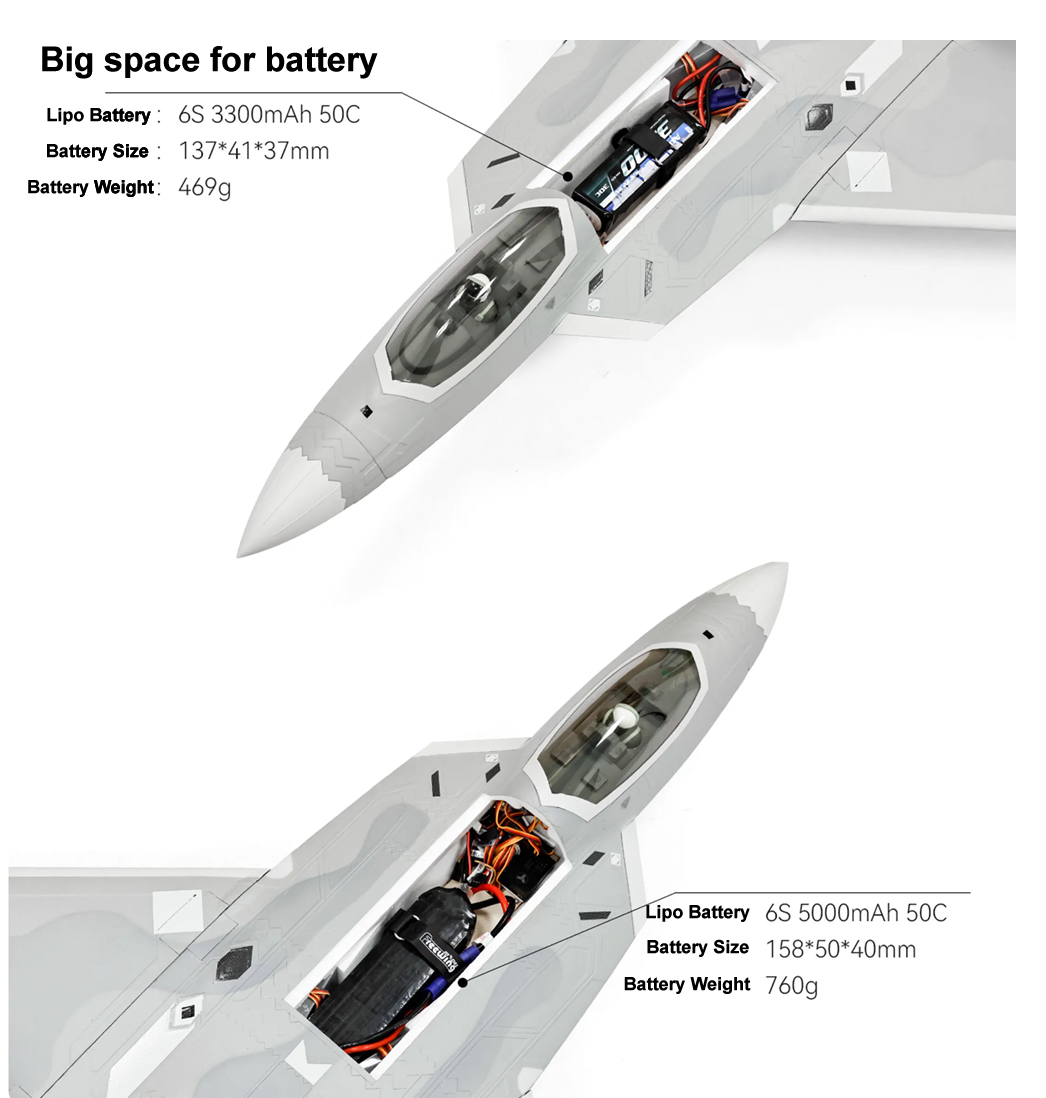

- Spring-loaded battery hatch for quick and easy battery access
- Carbon fiber wing spars for strength and light weight

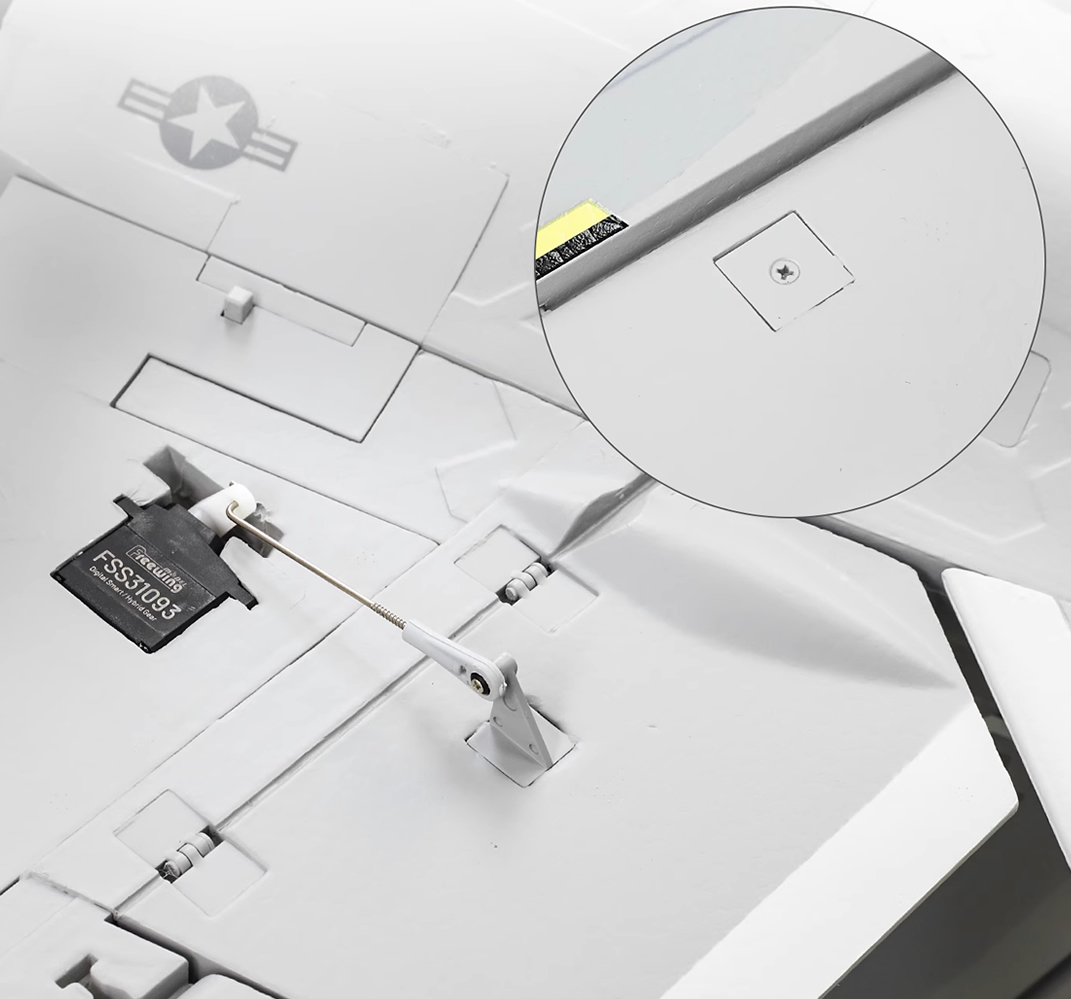

- Ball linkages on all control surfaces for precise control
- Nylon hinges for long-lasting durability.
Includes:
- Freewing F-22 Raptor High Performance 70mm EDF Jet – PNP

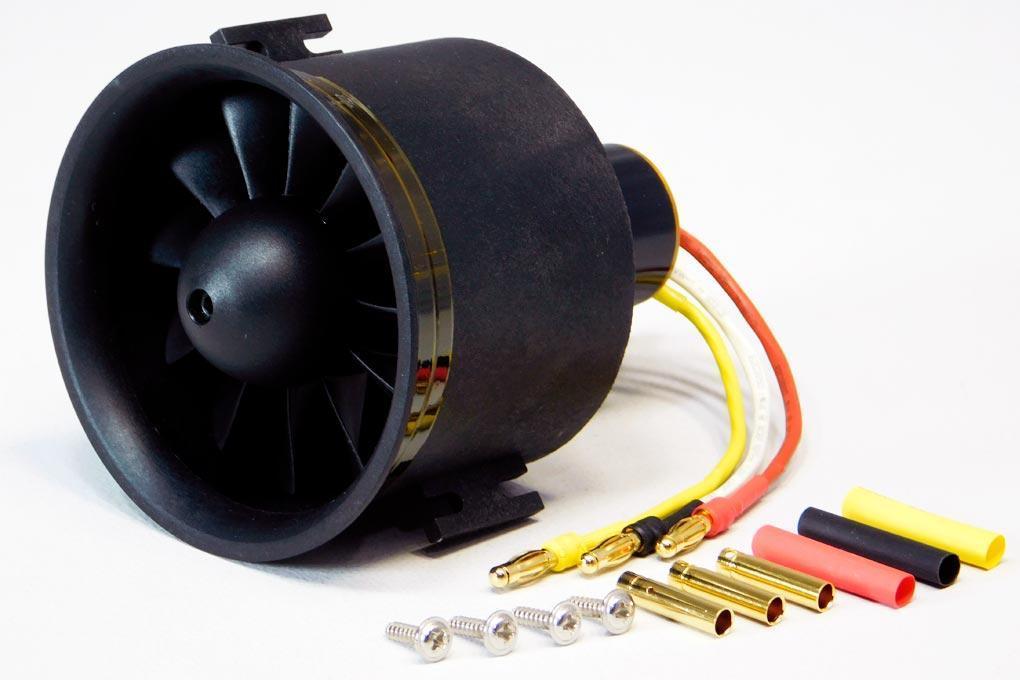

- 12-blade 70mm EDF Power System (installed)
- 2957-2210Kv Inrunner Motor (installed)
- 80A ESC with reverse thrust and EC5 connector (installed)

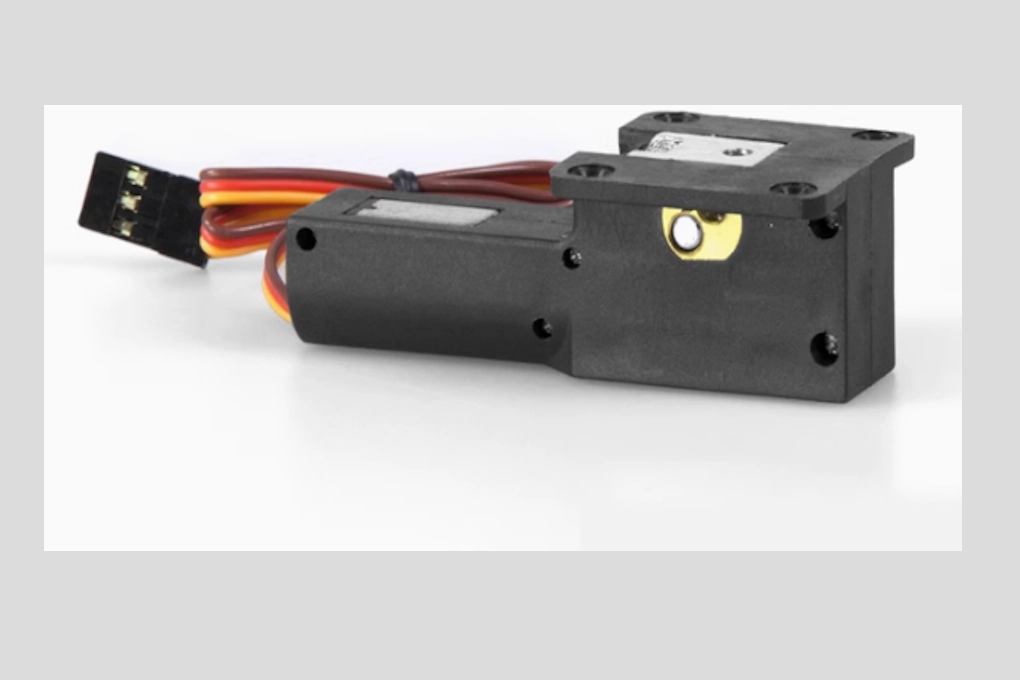

- Electronic, retractable landing gear (installed)
- Servos (installed).
Requires:
- 6-7 Channel radio (7 required for Reverse Thrust)
- 6-7 Channel receiver (7 required for Reverse Thrust)
- 6 Cell 22.2V 4000 mAh LiPo battery with EC5 connector
- 6 Cell compatible battery charger
Product Specifications:
AGE LEVEL :14 and up
SKILL LEVEL :Intermediate
BUILD TIME :1 hour
Scale
1/16
Wingspan
816mm / 32.1in
Length
1150mm / 45.3in
Weight
1.74kg (3.83lbs) without battery
CG (Center of Gravity)
108mm from the leading edge of the wing at the root
Power System
2957-2210Kv Brushless In-Runner Motor
Electronic Speed Control
80 Amp with 7A UBEC and thrust reversing
Propeller / EDF
70mm 12-Blade
Servos
- Nose Gear Steering, left and right ailerons -
- Left elevator, left and right rudder, left and right flaps -
- Right elevator
- Nose gear doors -
Landing Gear

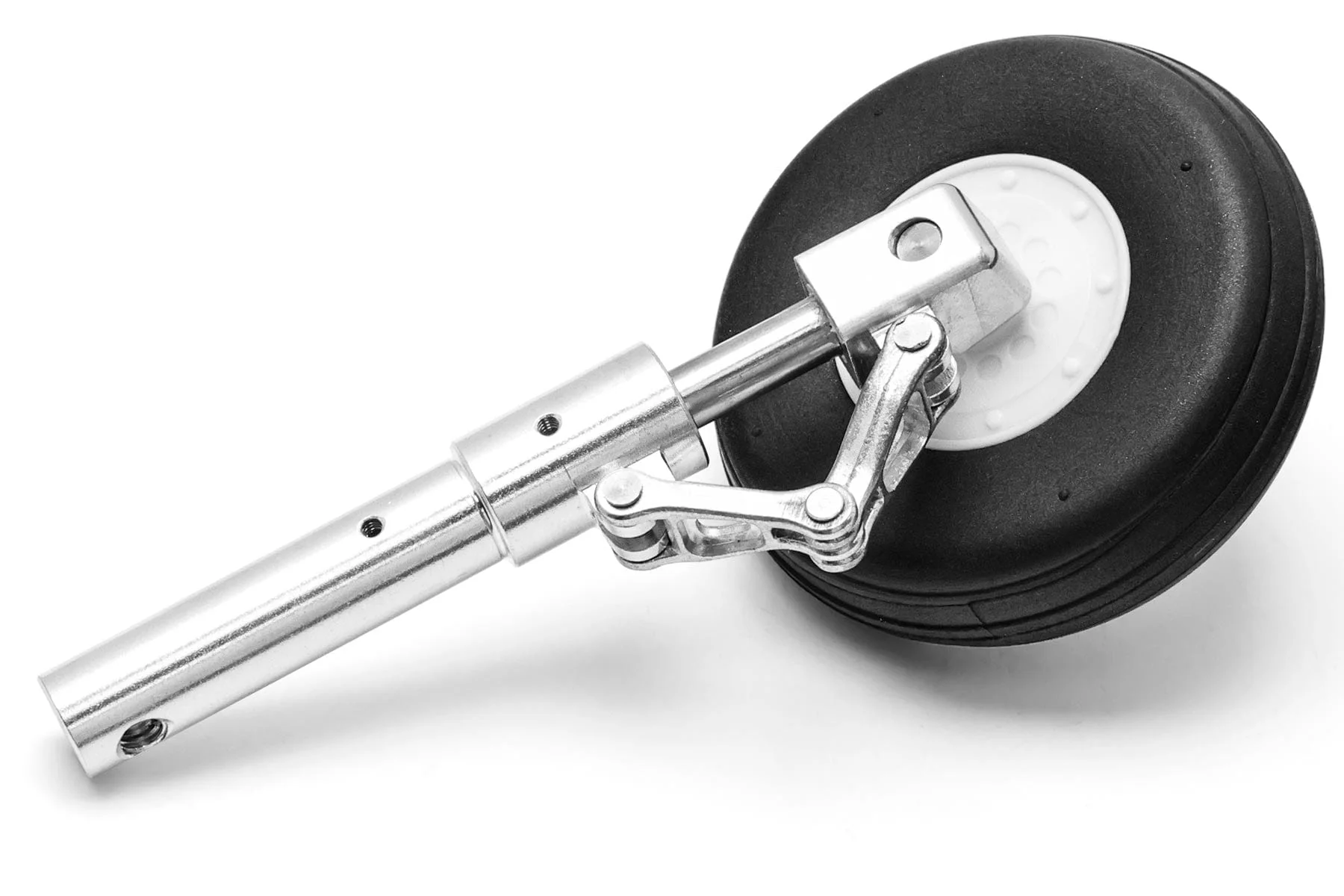

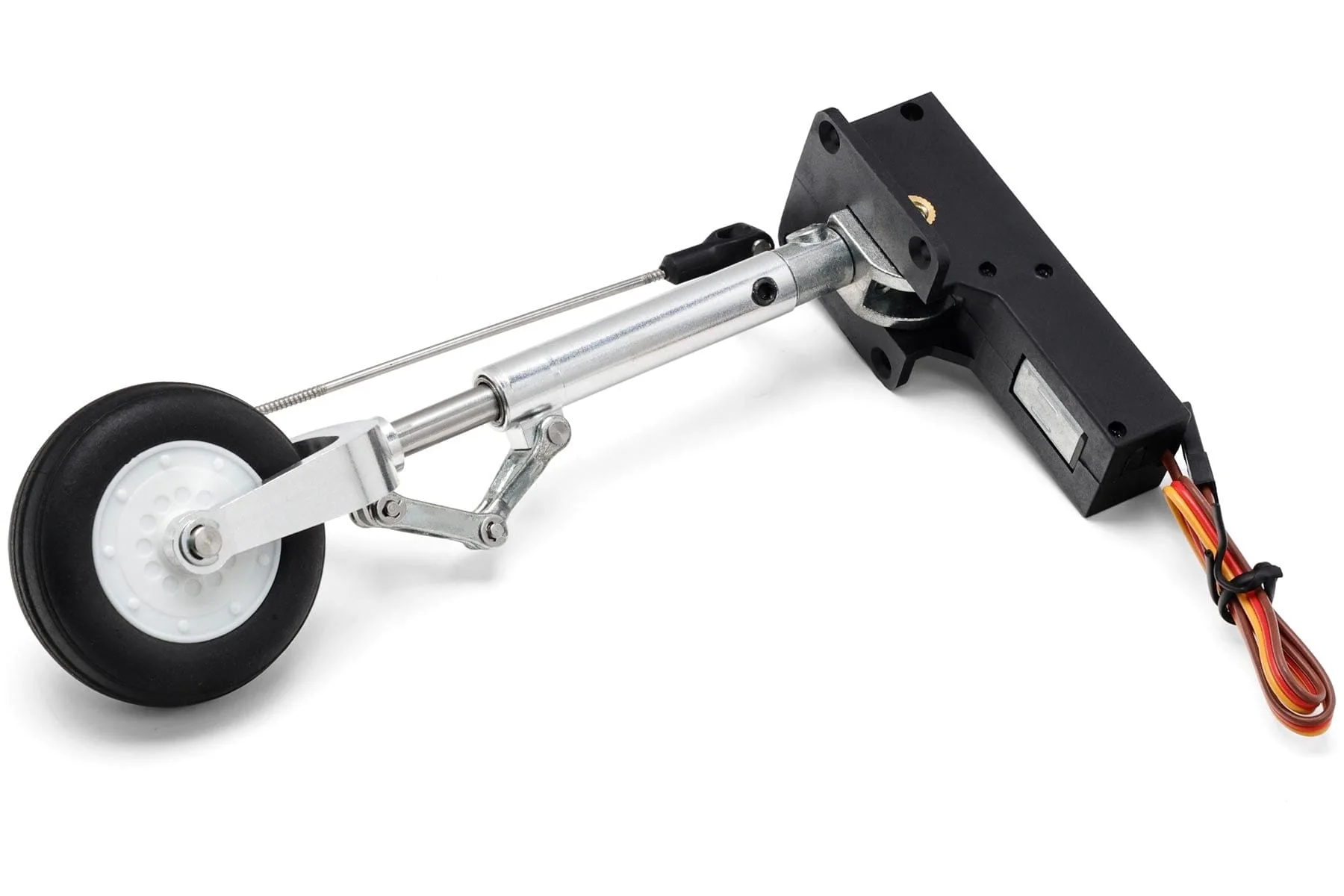

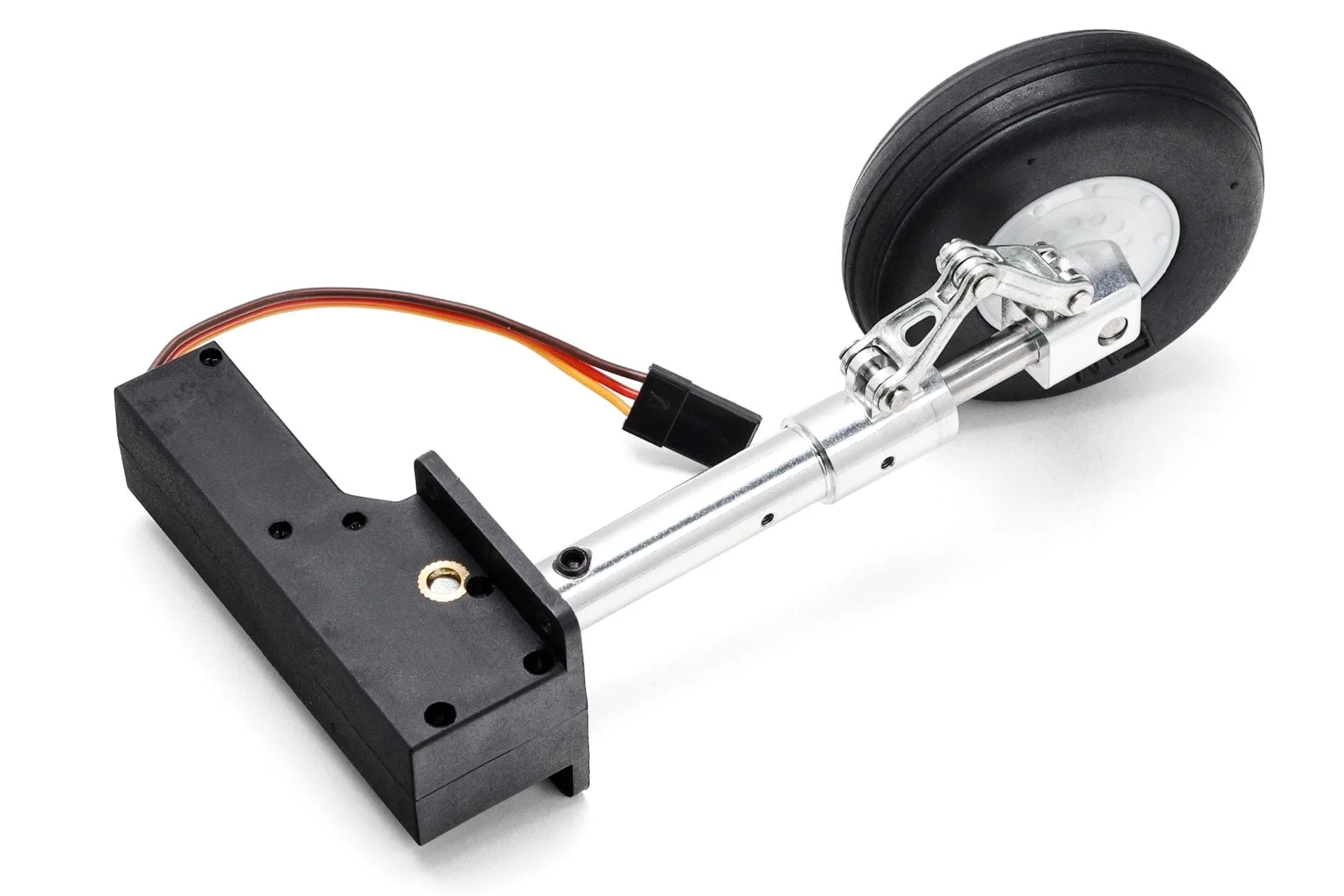

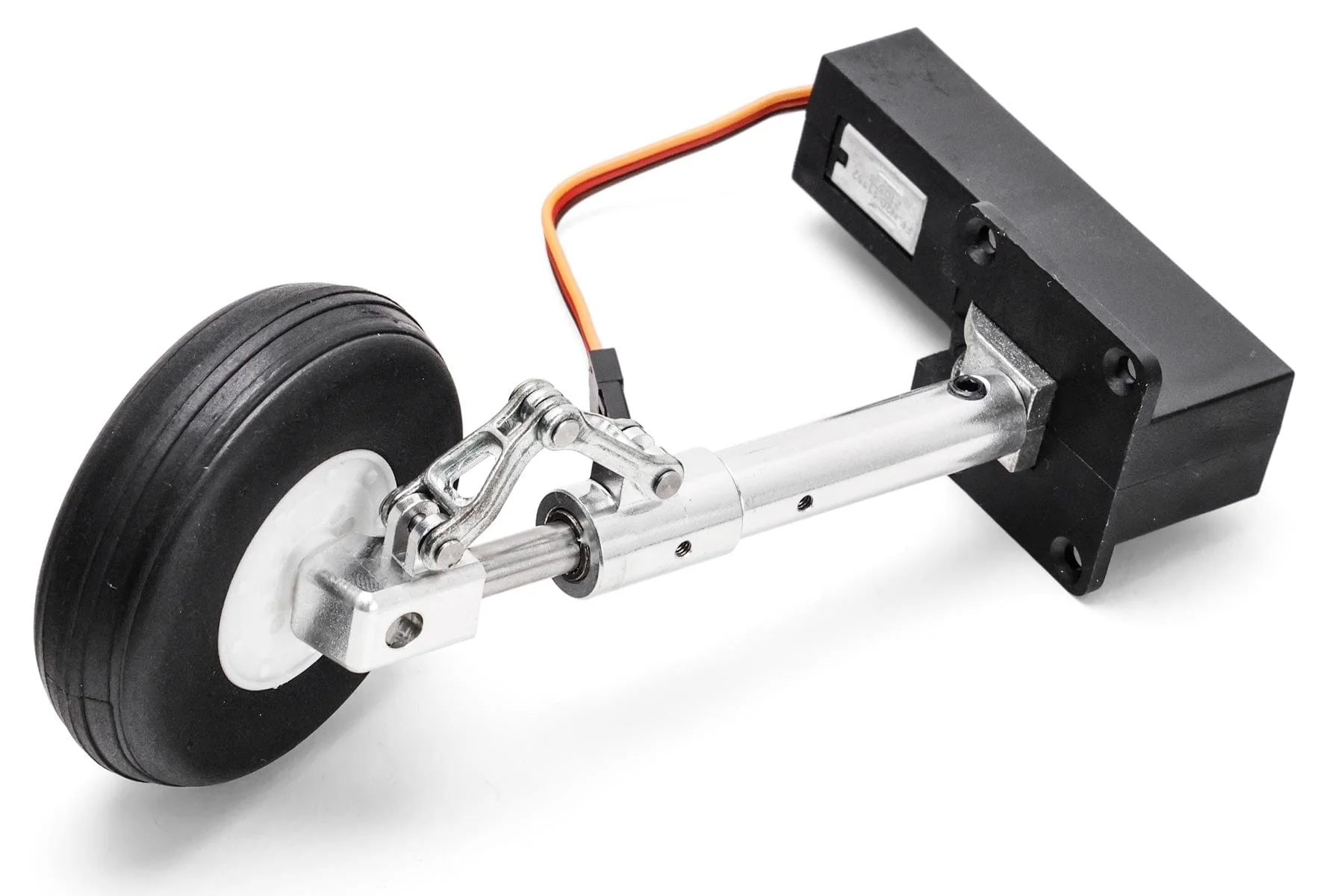

Retractable landing gear with CNC-machined aluminum, shock absorbing struts
Required Battery
6 Cell 22.2V 3500-5000mAh Li-Po battery with EC5 Connector
Required Radio
6-7 channels (7 required for thrust reversing)
Ailerons
Yes
Elevator
Yes
Rudder
Yes
Flaps
Yes
Lights
No
Hinge Type
Nylon
Material
EPO Foam
Skill Level
Intermediate
Build Time
1 Hour
Recommended Environment
Outdoor

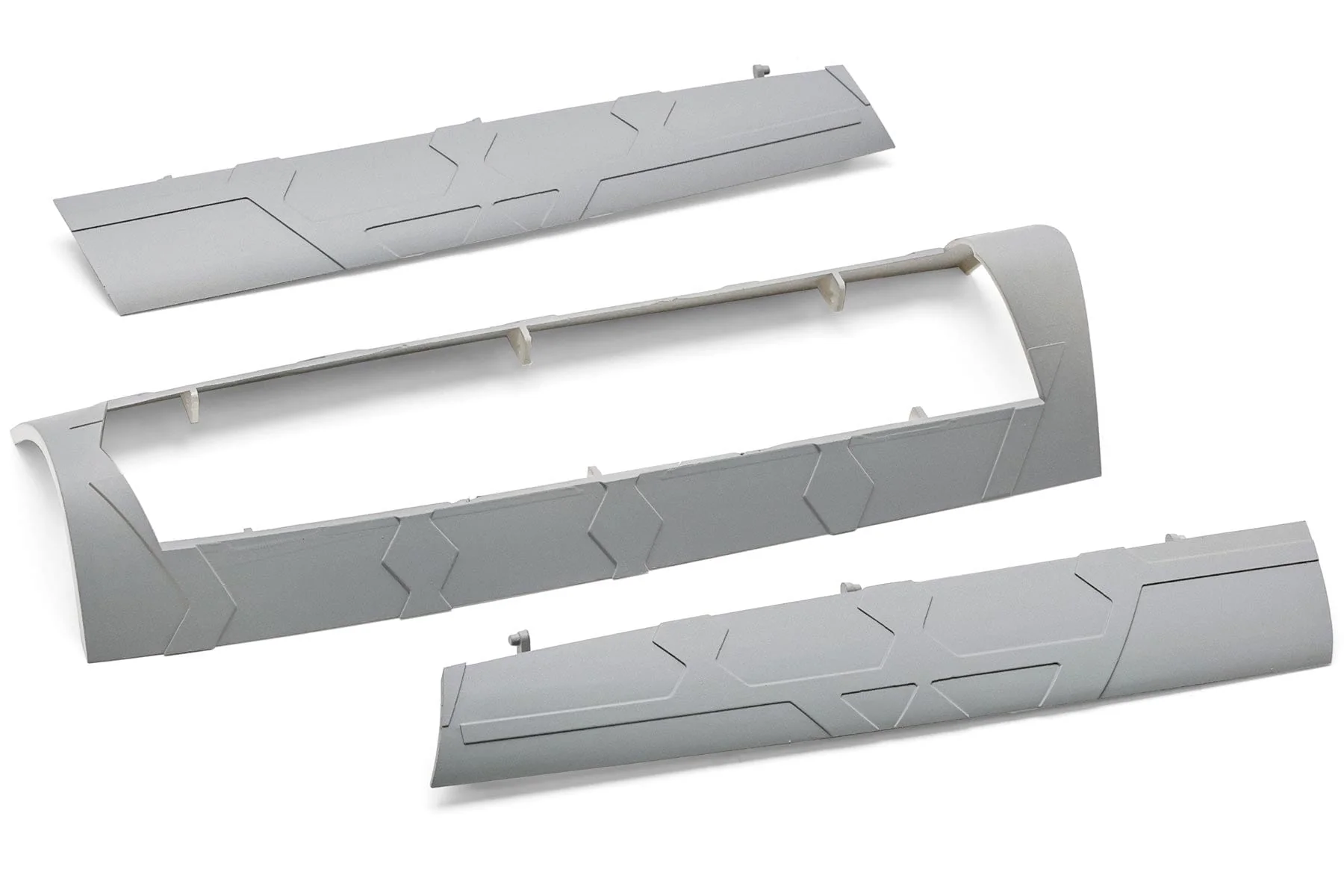

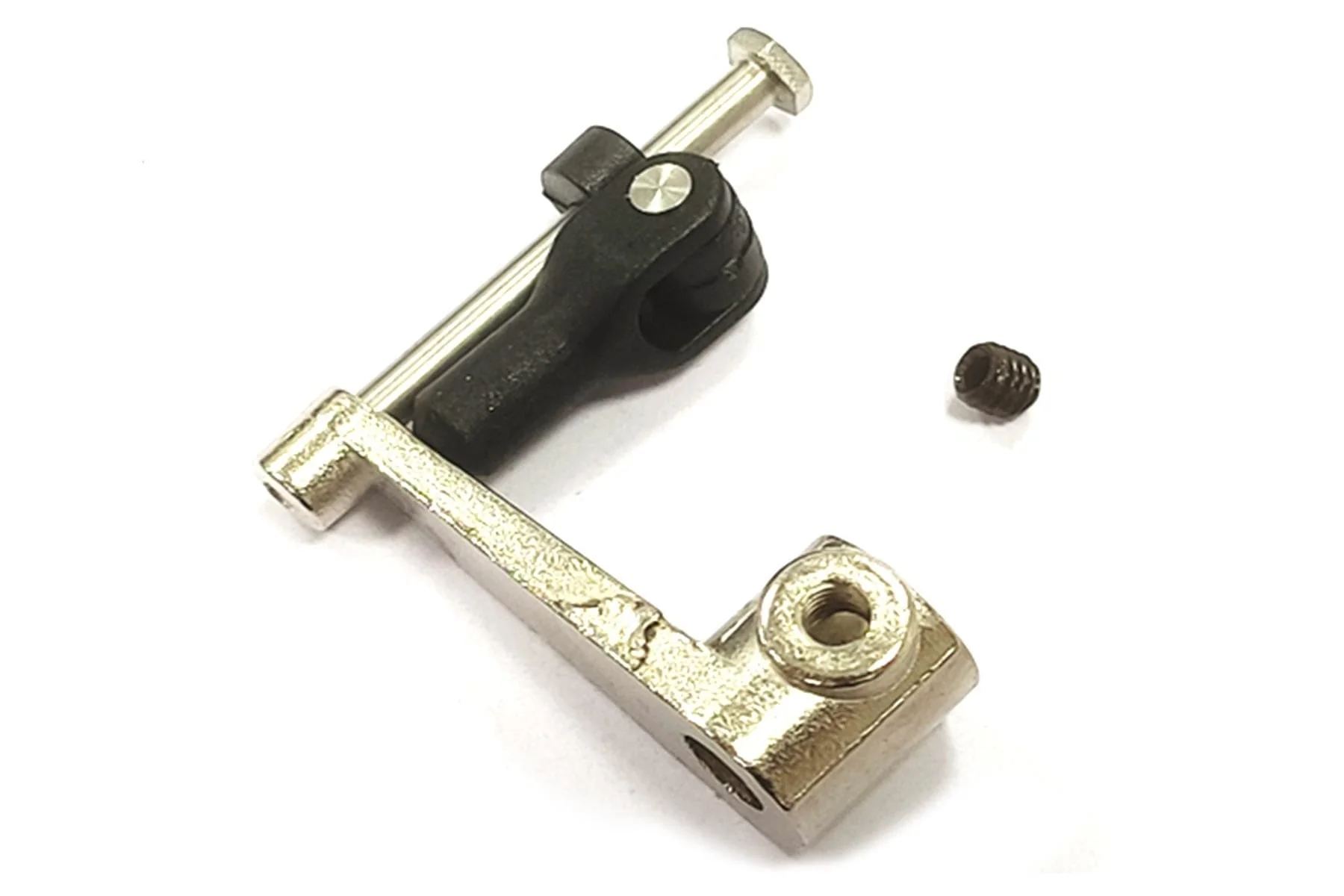

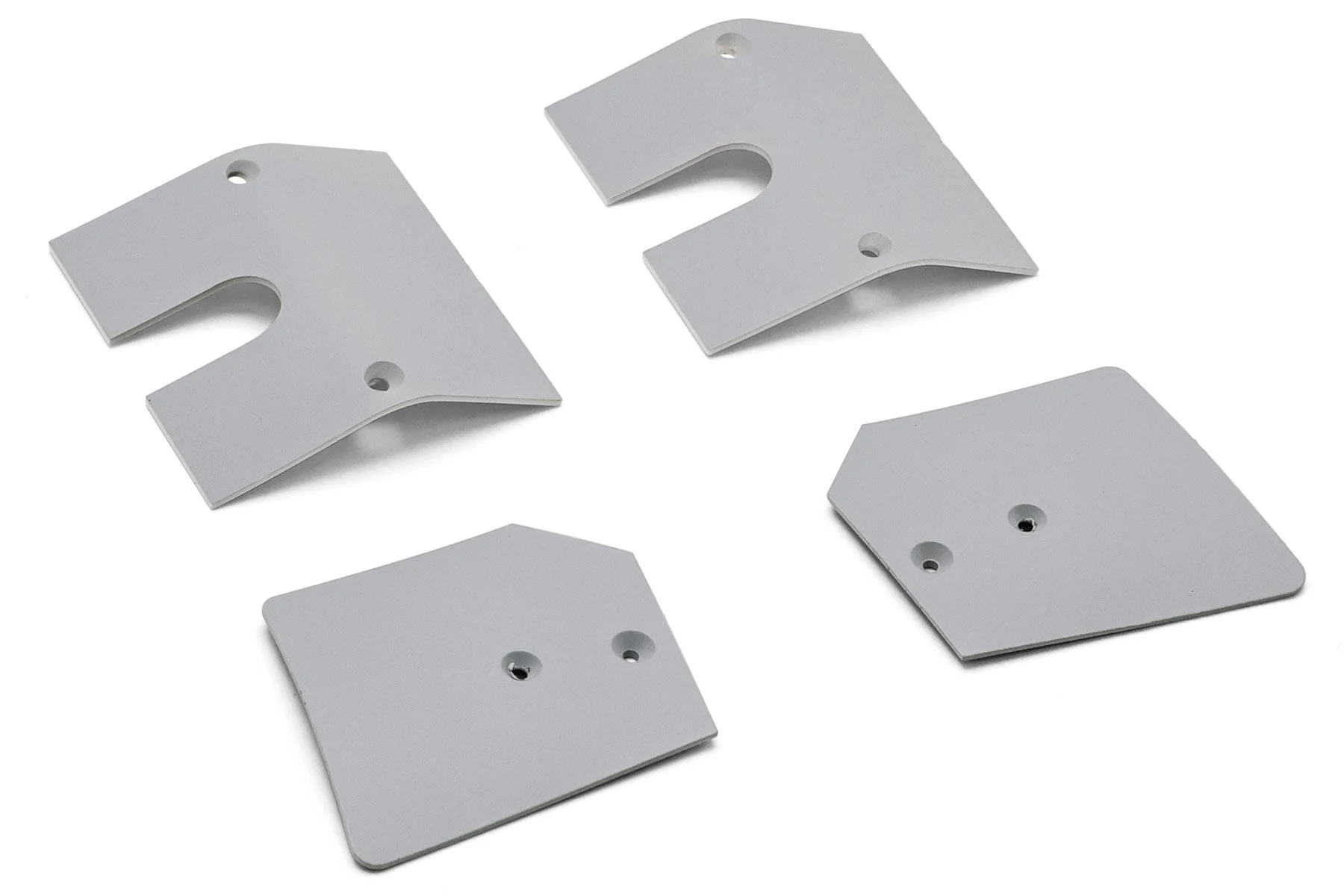

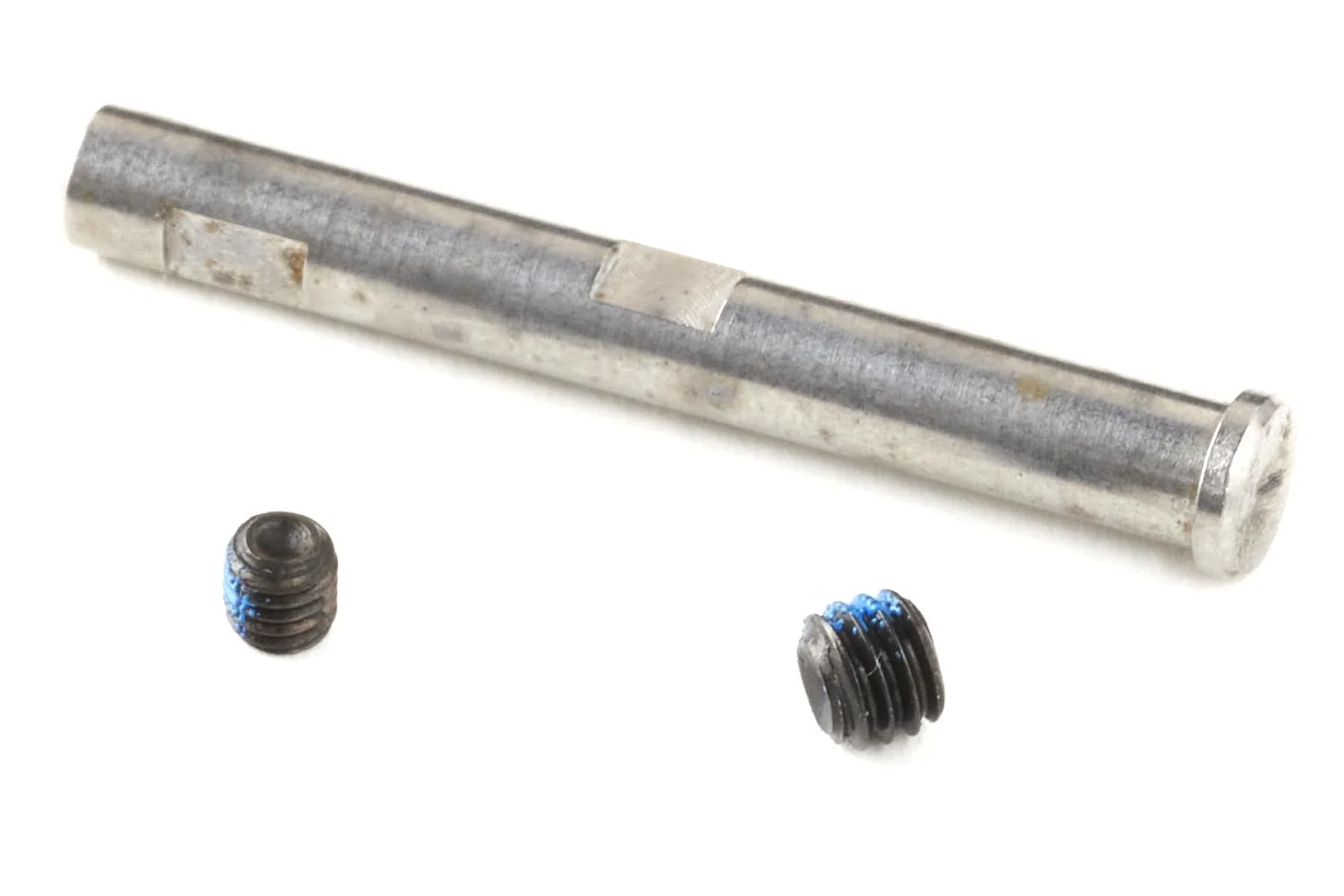

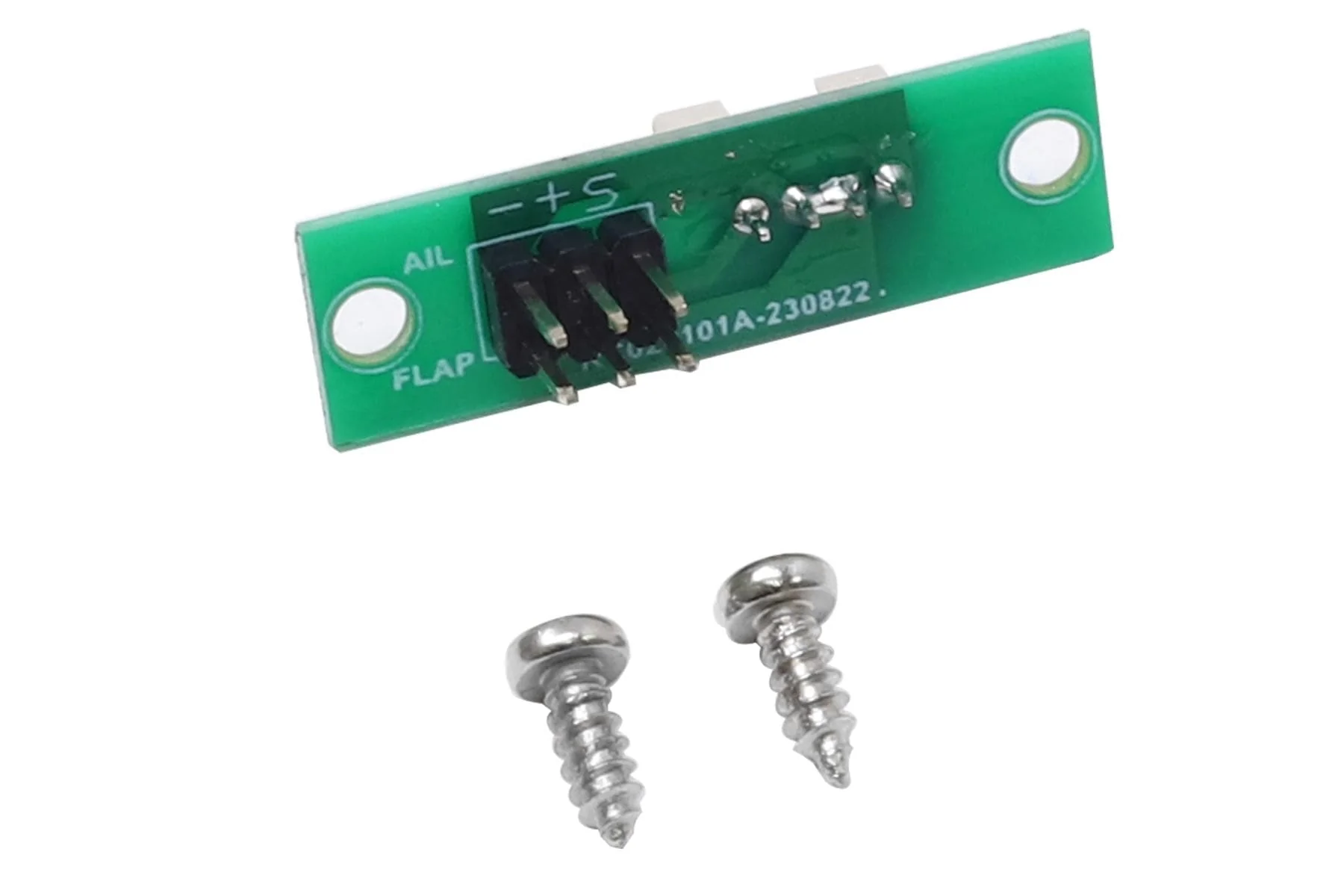

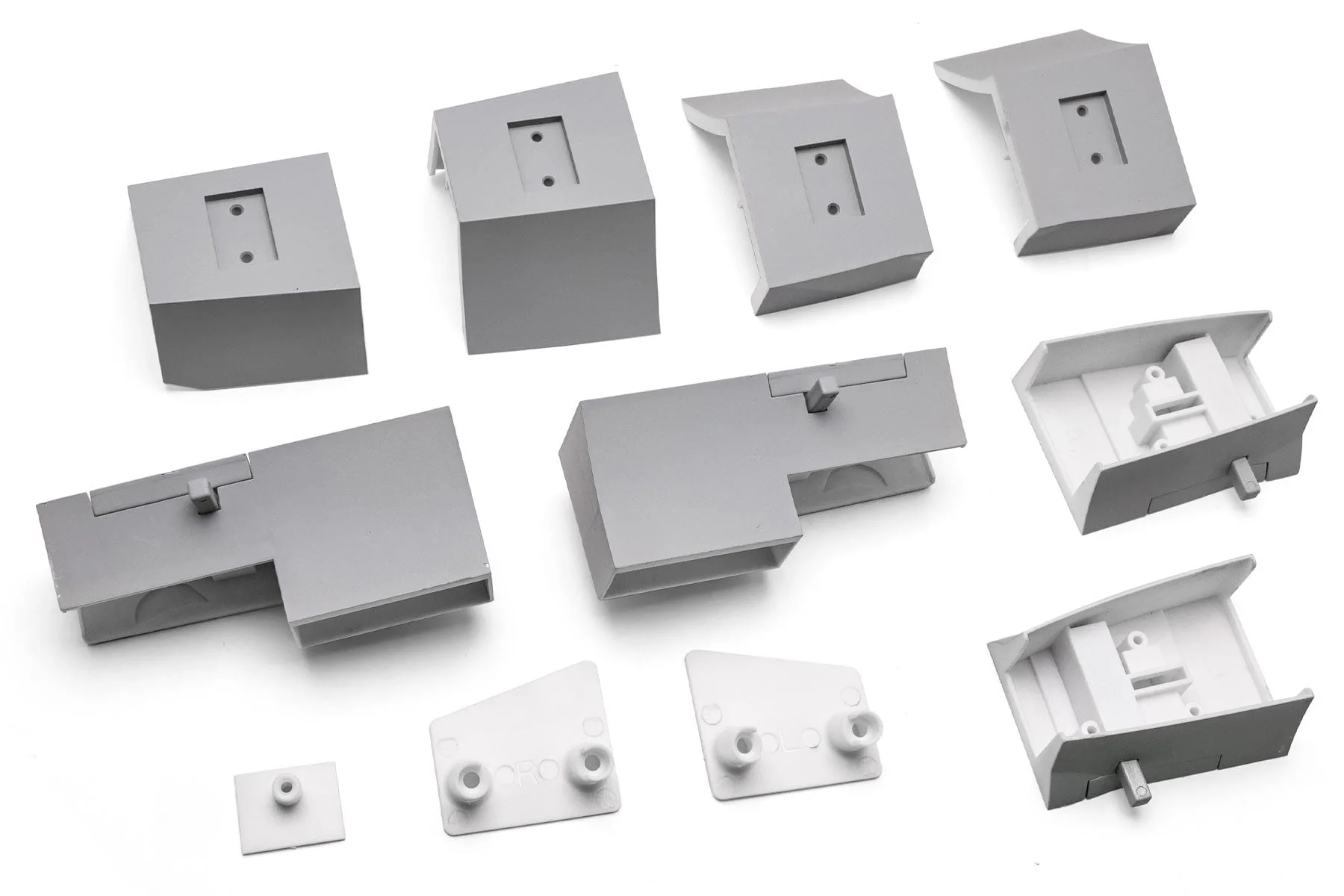

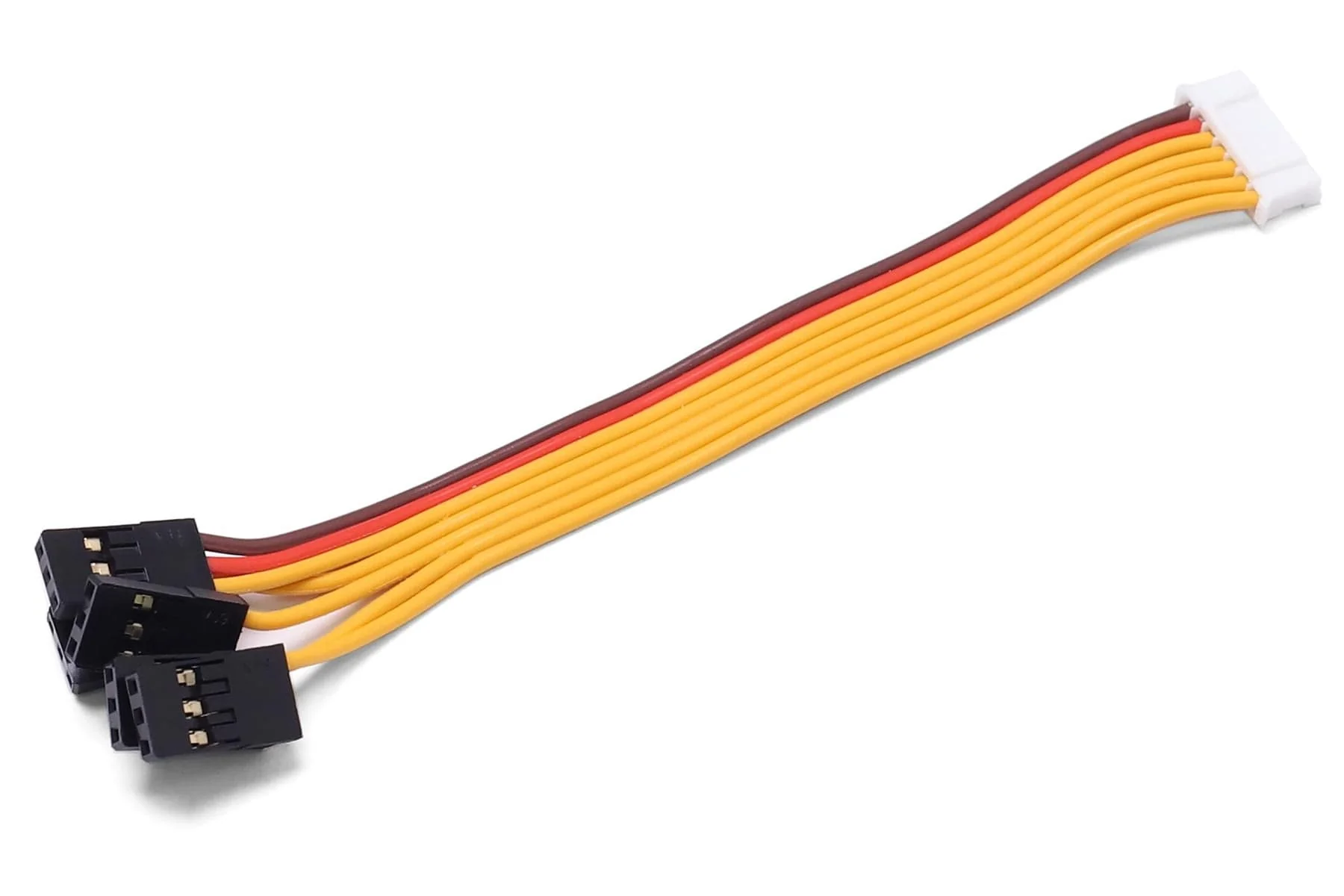

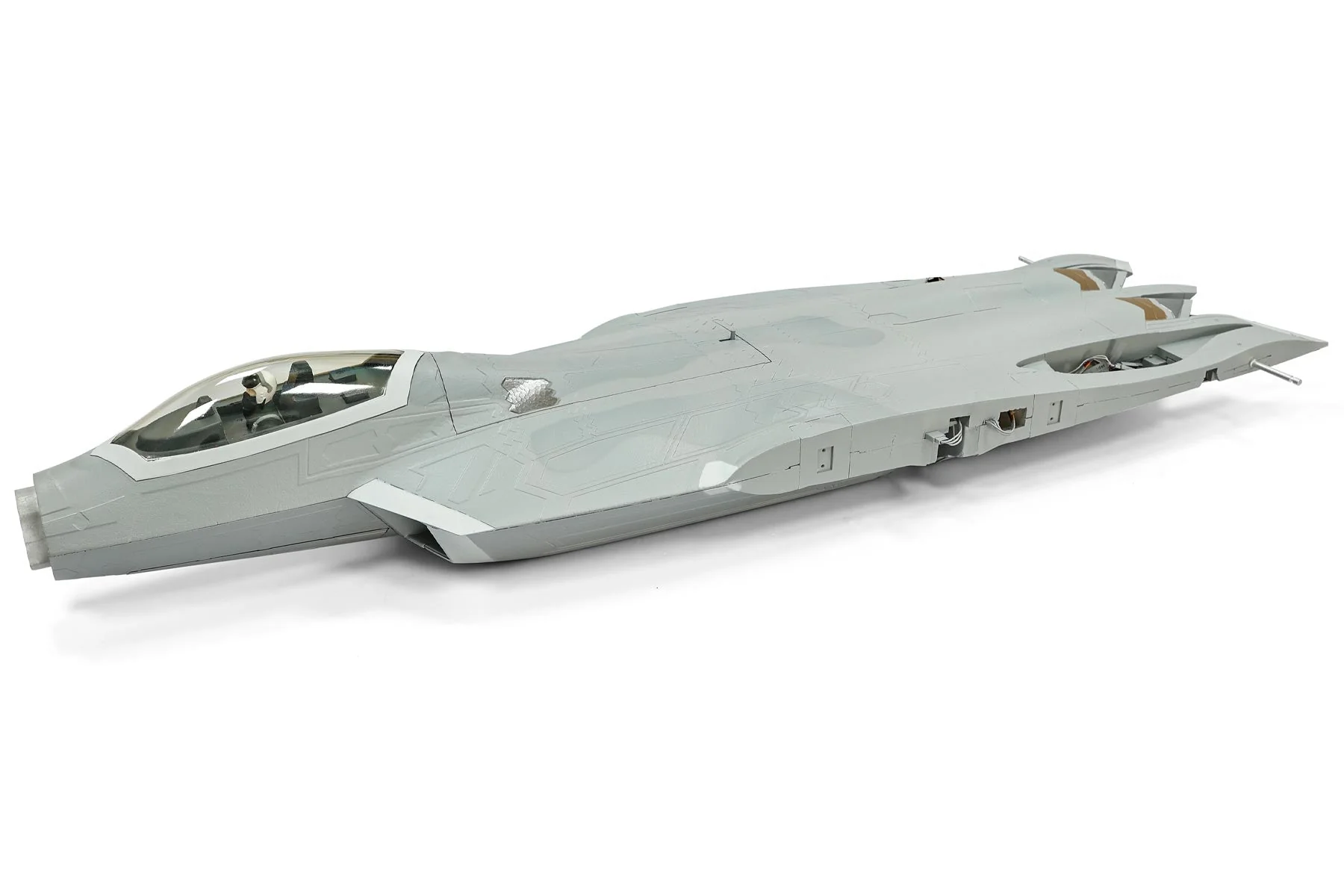

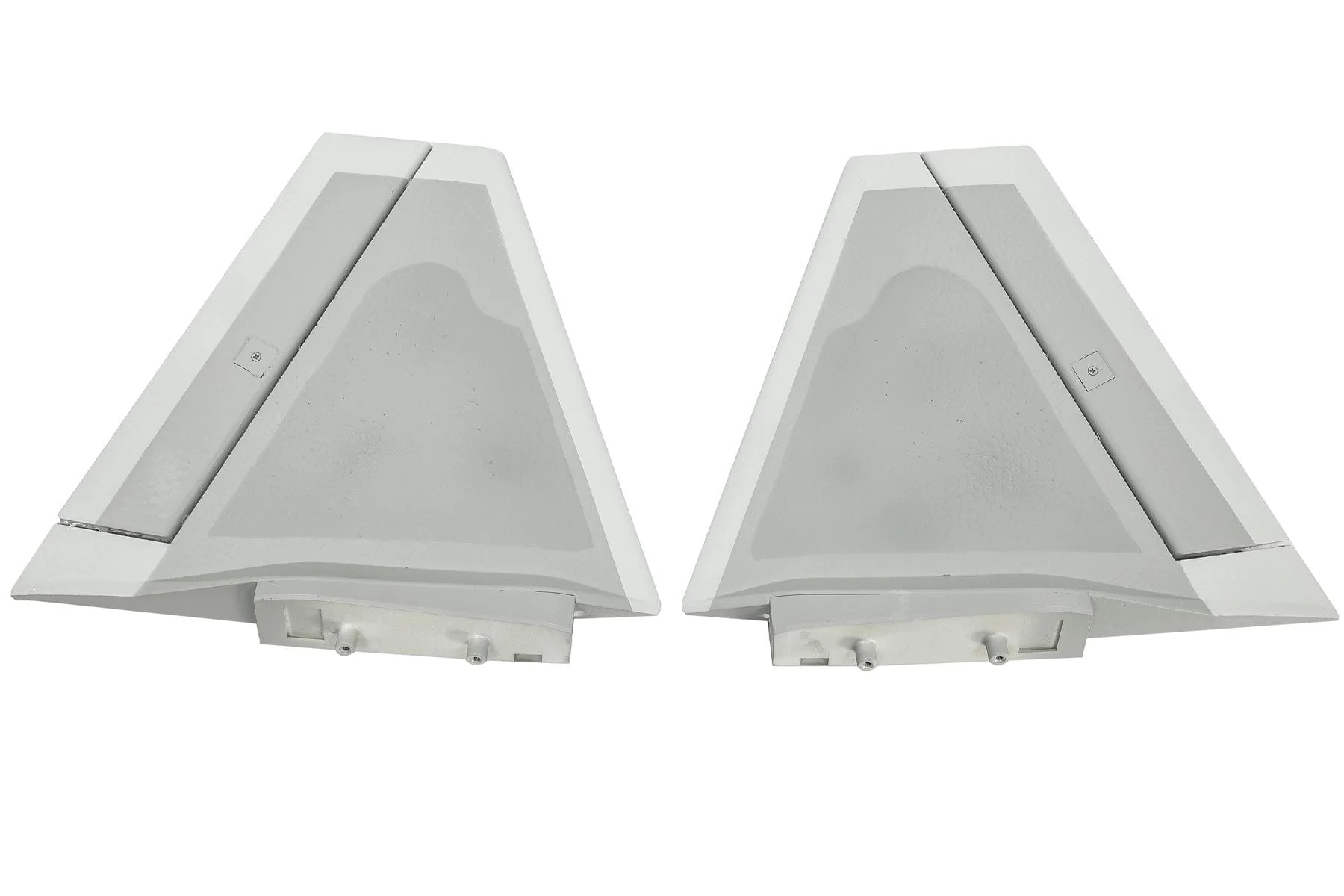

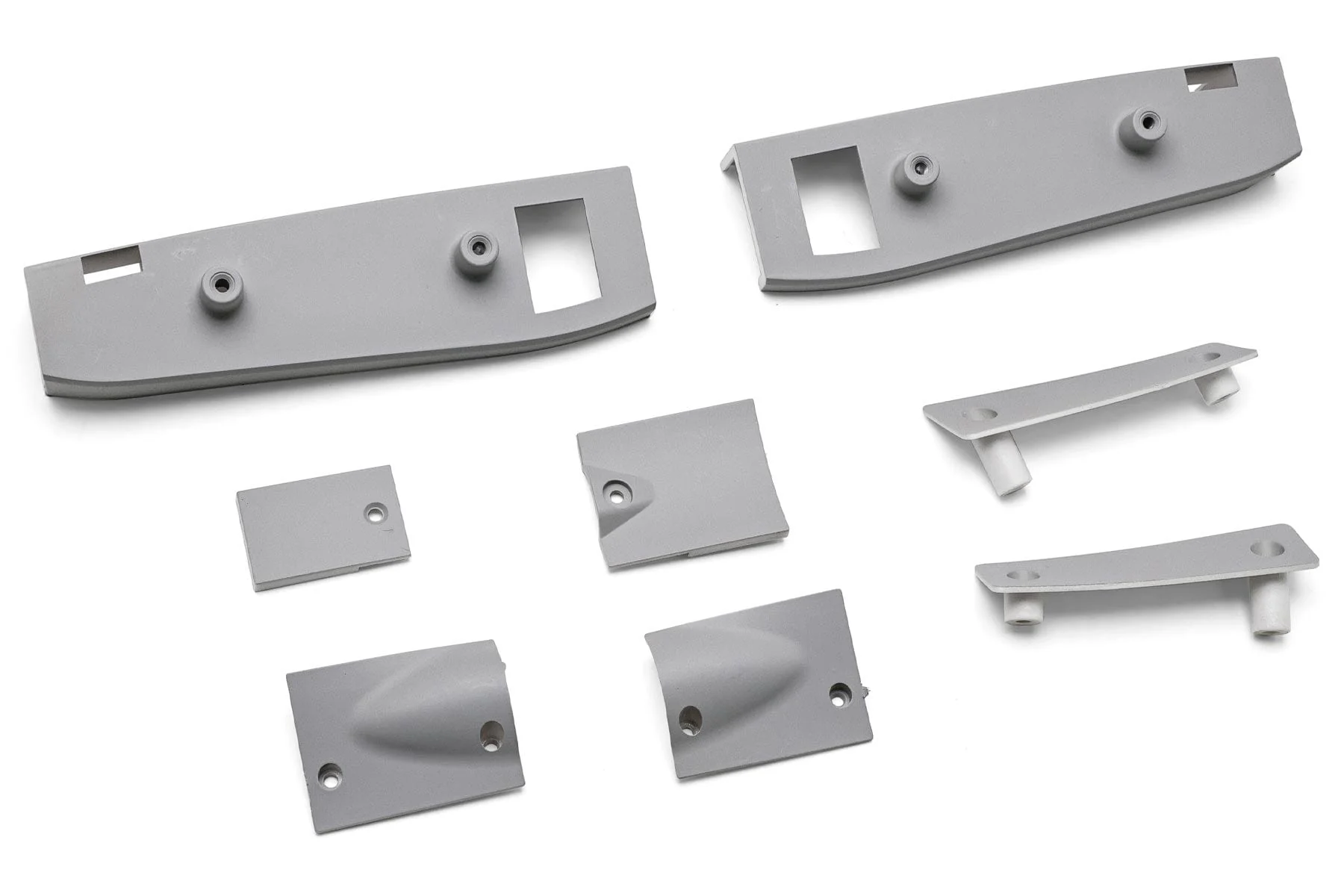

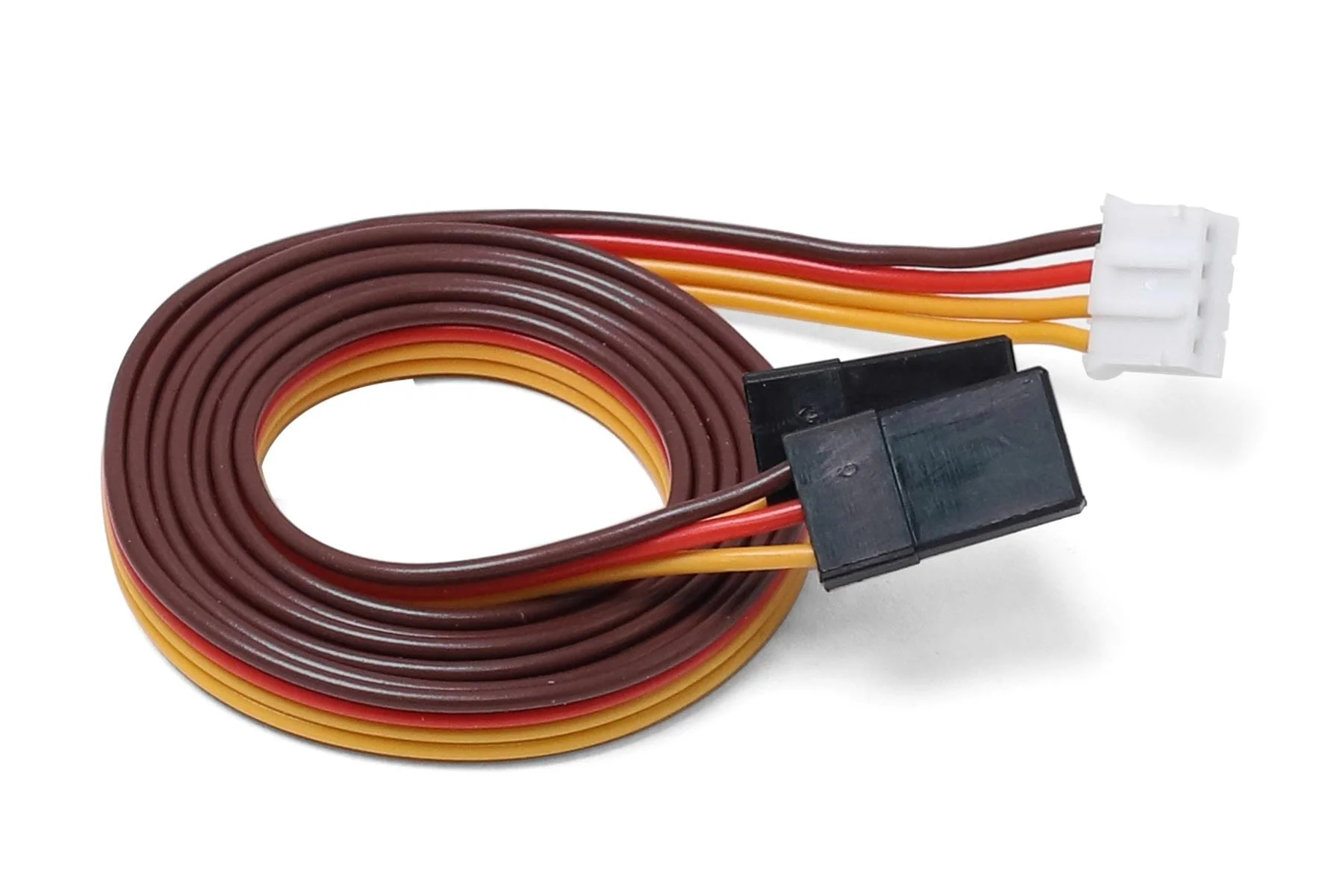

Spare parts For Freewing F-22 Raptor 70mm EDF Jet
Scale |
1/16 |
Wingspan |
816mm / 32.1in |
Length |
1150mm / 45.3in |
Weight |
1.74kg (3.83lbs) without battery |
CG (Center of Gravity) |
108mm from the leading edge of the wing at the root |
Power System |
2957-2210Kv Brushless In-Runner Motor |
Electronic Speed Control |
80 Amp with 7A UBEC and thrust reversing |
Propeller / EDF |
70mm 12-Blade |
Servos |
|
Landing Gear |
Retractable landing gear with CNC-machined aluminum, shock absorbing struts |
Required Battery |
6 Cell 22.2V 3500-5000mAh Li-Po battery with EC5 Connector |
Required Radio |
6-7 channels (7 required for thrust reversing) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoor |
All Spare Parts are available in stock.
