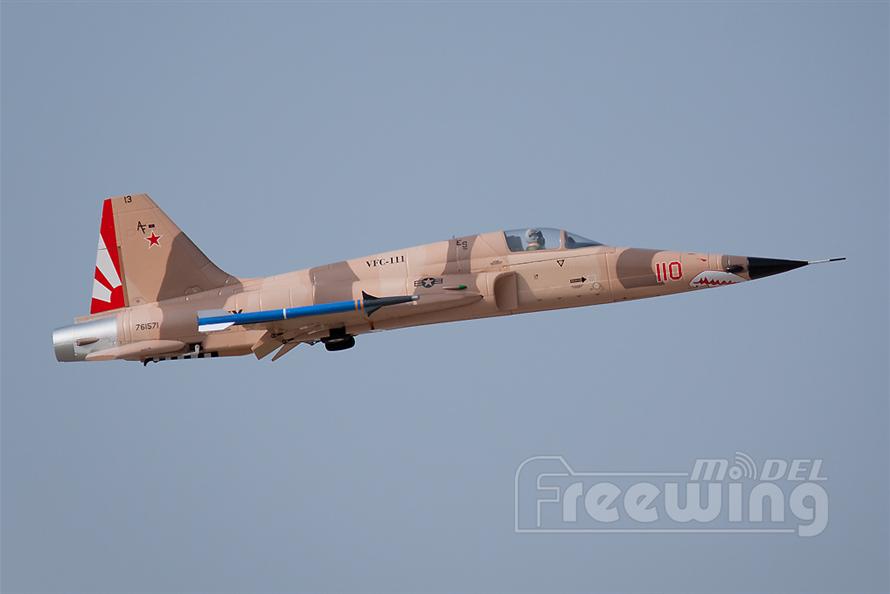

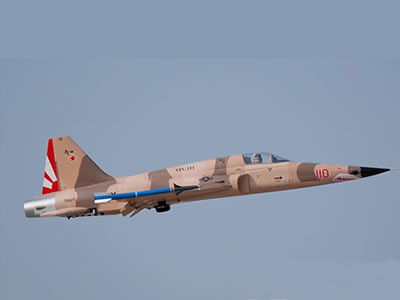

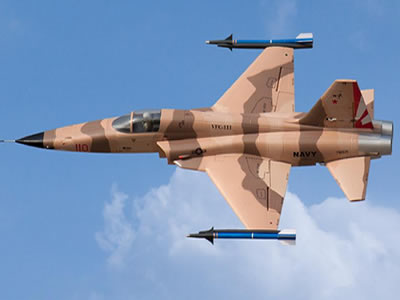

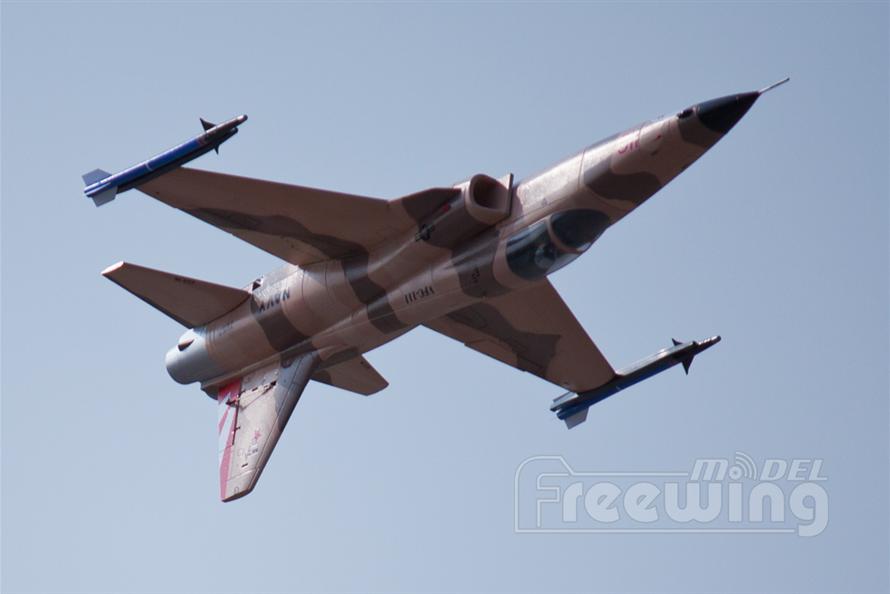

Freewing F-5 Tiger II 80mm EDF Jet PNP RC Airplane

Freewing F-5 Tiger II 80mm EDF Jet - PNP

Wholesale price: [ $285.00 ]
Freewing F-5 Tiger II 80mm EDF Jet PNP RC Airplane

1,6 Channel radio.
2,6 Channel receiver
3,Power System: 3530-1750kV Brushless Outrunner Motor

if you want to know wholesale discount price,please contact us by e-mail.

If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

Freewing F-5 Tiger II 80mm EDF Jet PNP RC Airplane Specifications:
Product Description:

Freewing F-5 Tiger II 80mm EDF Jet PNP RC Airplane

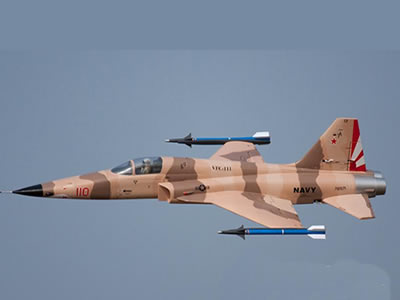

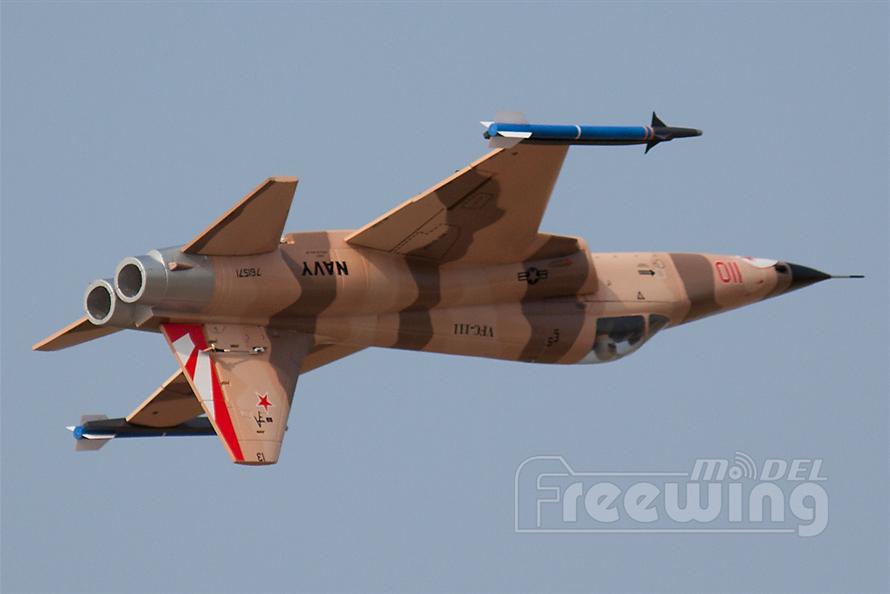

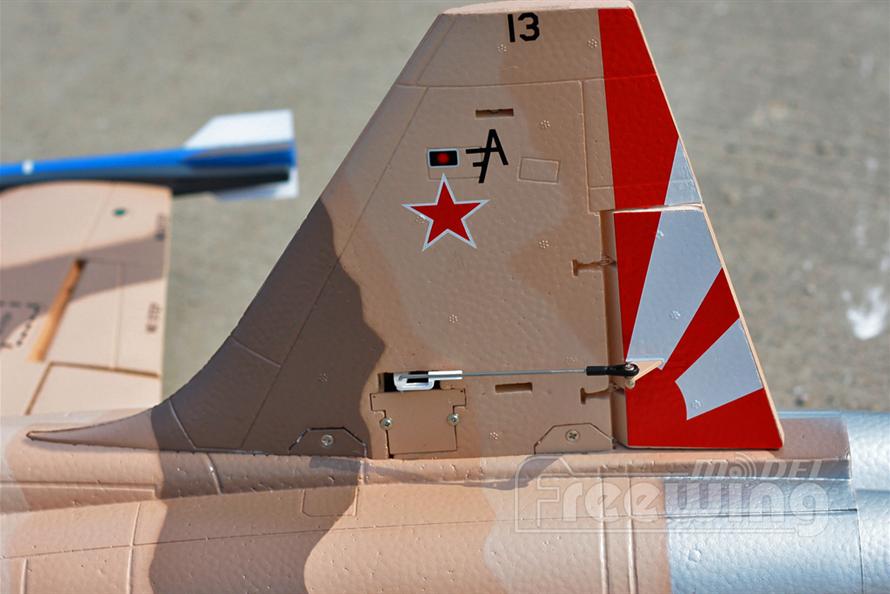

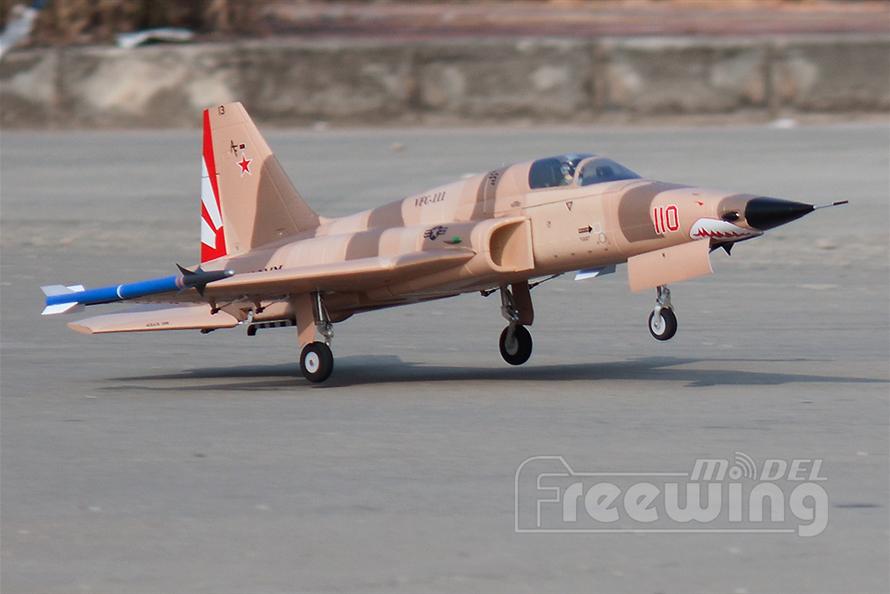

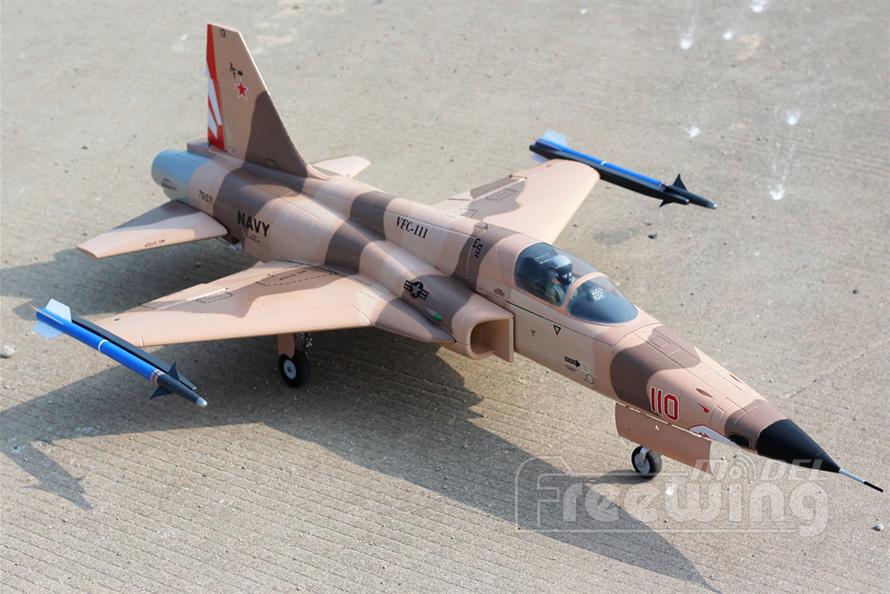

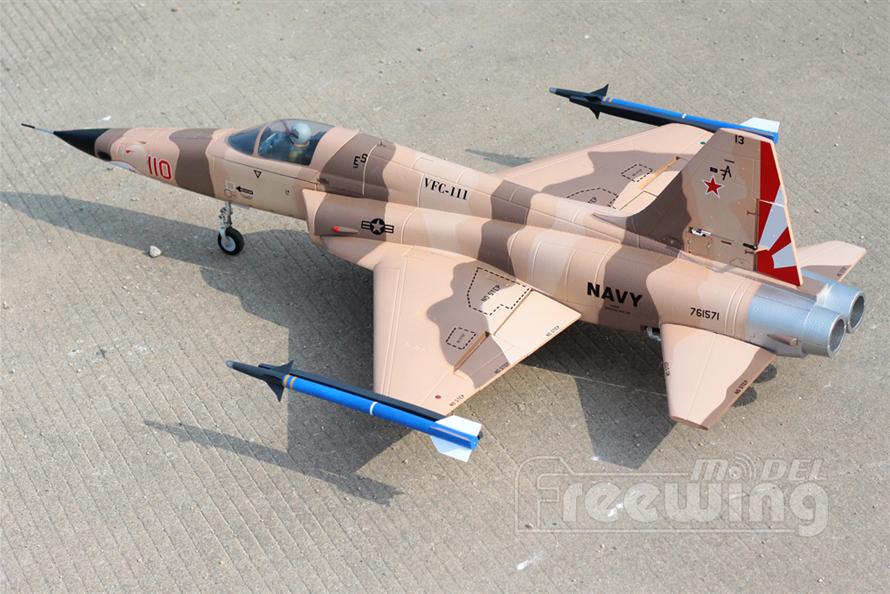

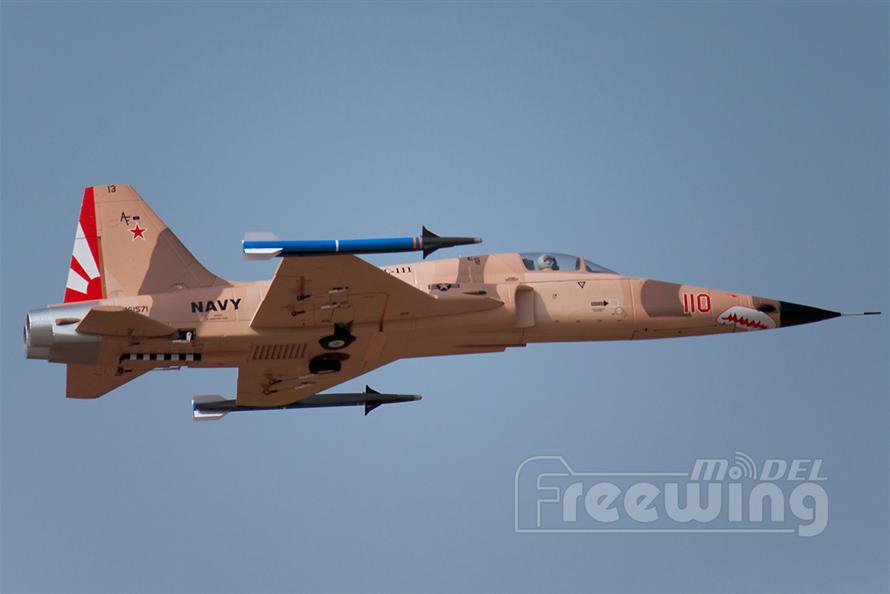

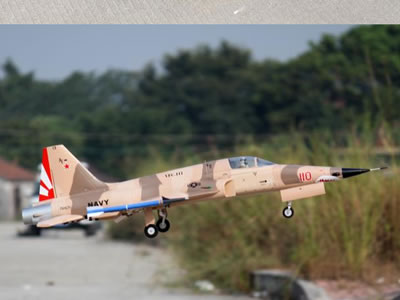

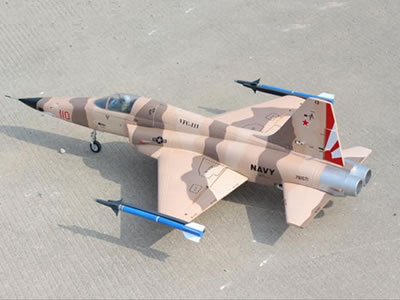

Freewing's 80mm F-5 Tiger II is the perfect size for easy transport without the need for disassembly. For more versatile transportation or compact storage options, the rigid, carbon fiber reinforced wings are removable with screws, as are the unique vertical stabilizers, and full flying horizontal stabilizers. Metal gear servos on the full flying horizontal stabilizers ensure positive control, and pre-installed flaps help to slow down landings. Designed for operation on pavement or very short grass, the F-5 features aluminum trailing link struts all around for durability, and the shock absorbing struts dampen hard landings to reduce bouncing. Plastic main gear doors and a spring-hinged full coverage nose gear door minimize drag and maximize speed.

Model officially licensed by Northrop Grumman
12 Blade factory balanced EDF with metal housing and 3530-1750KV brushless outrunner motor produces realistic jet turbine sound
Composite fan blades combined with metal EDF housing make the Super Scorpion AMA compliant

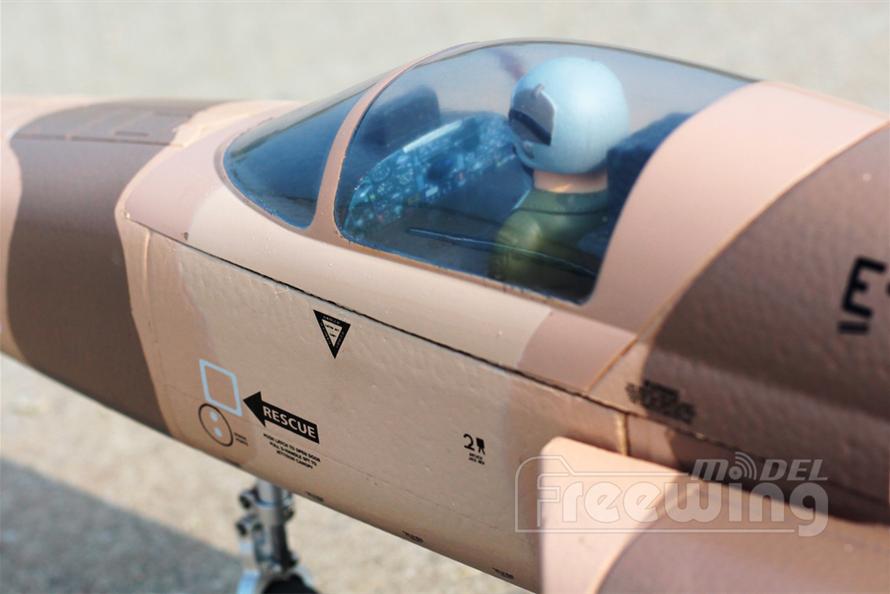

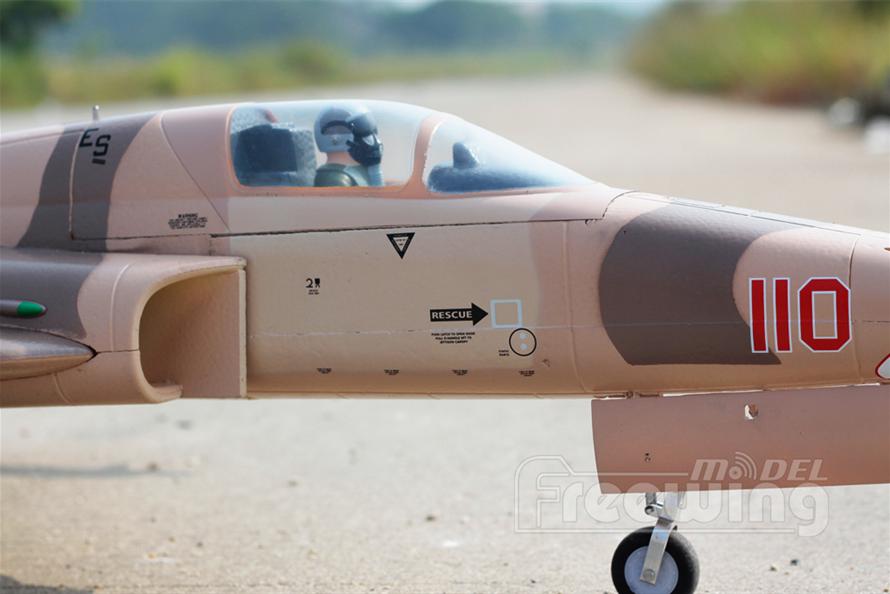

Super scale details include hand painted, scale-sized pilot and full instrument panel

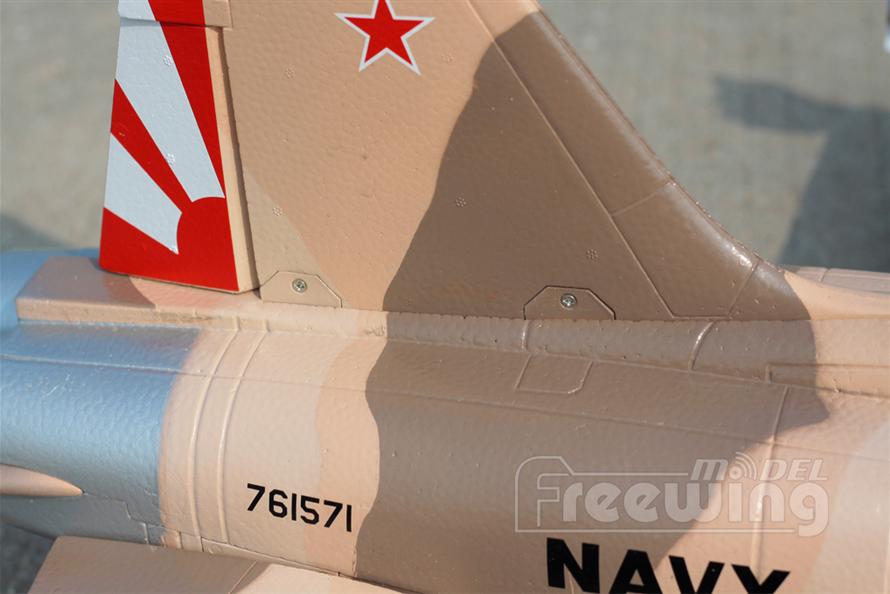

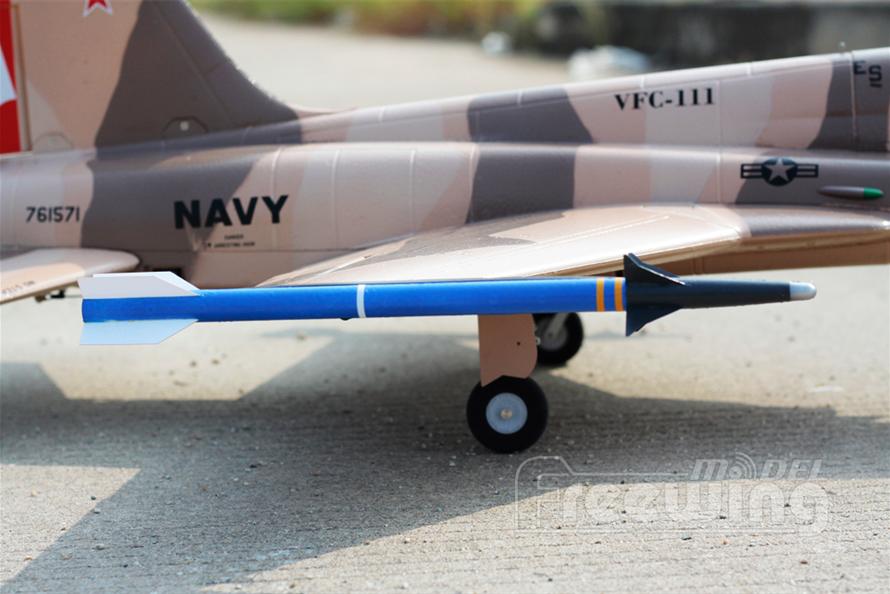

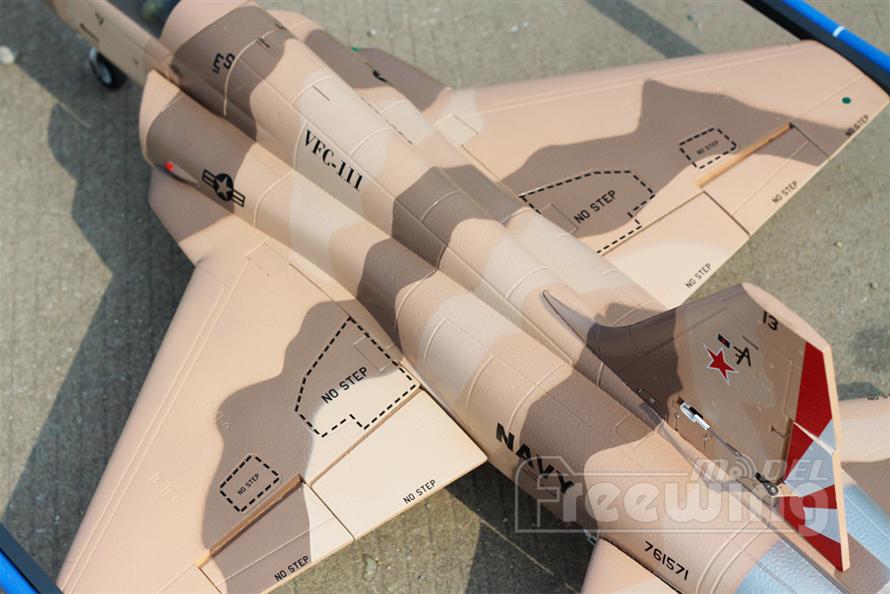

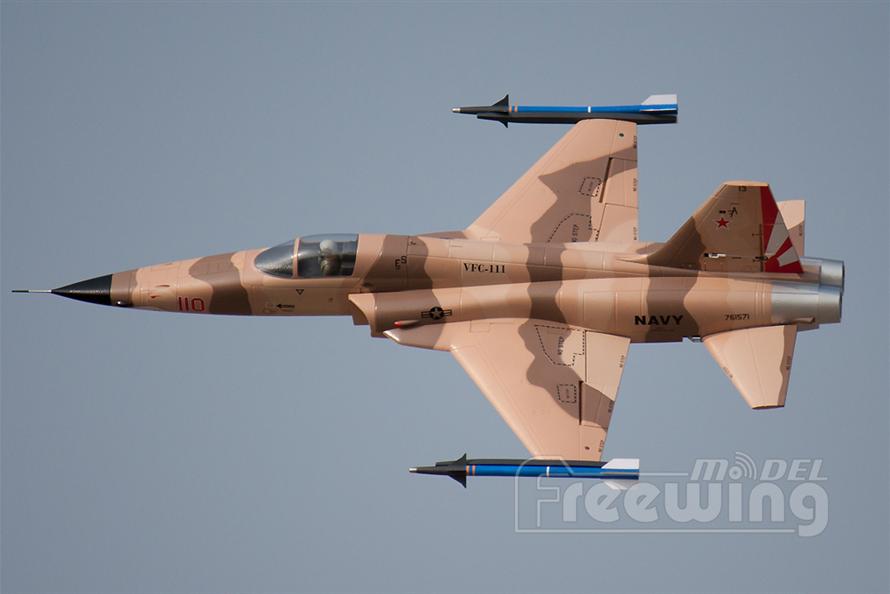

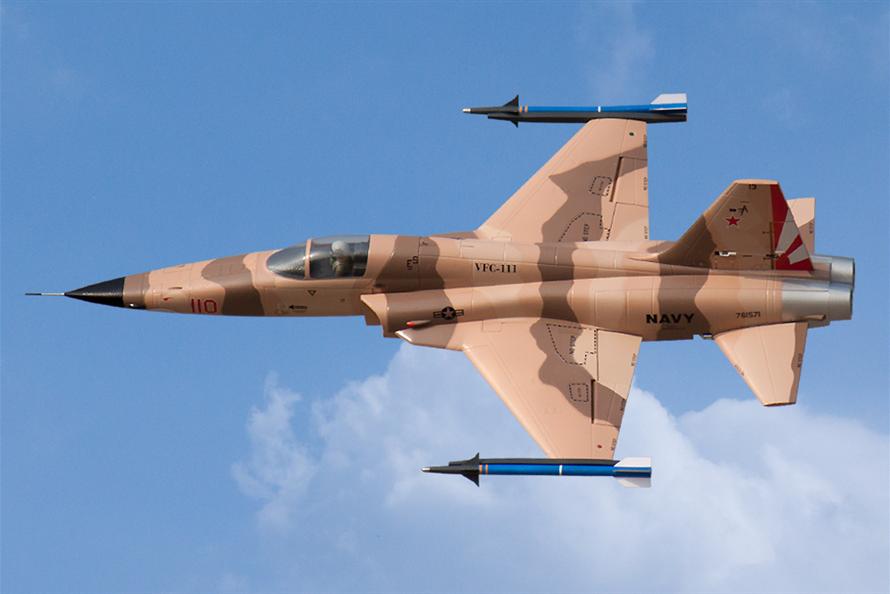

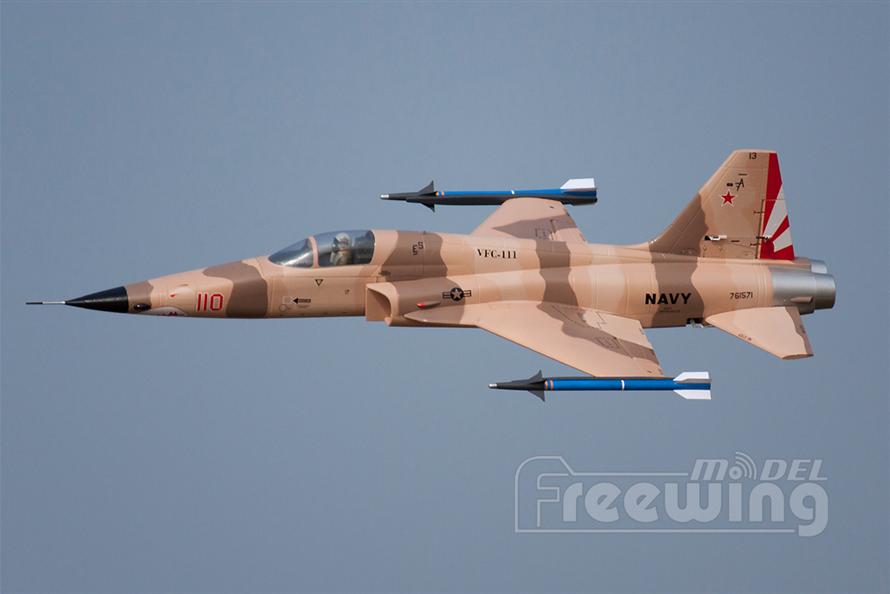

Proudly displaying the livery of the CAG's jet of the VFC-111 Sun Downers
80 Amp Hobbywing ESC with 5A BEC

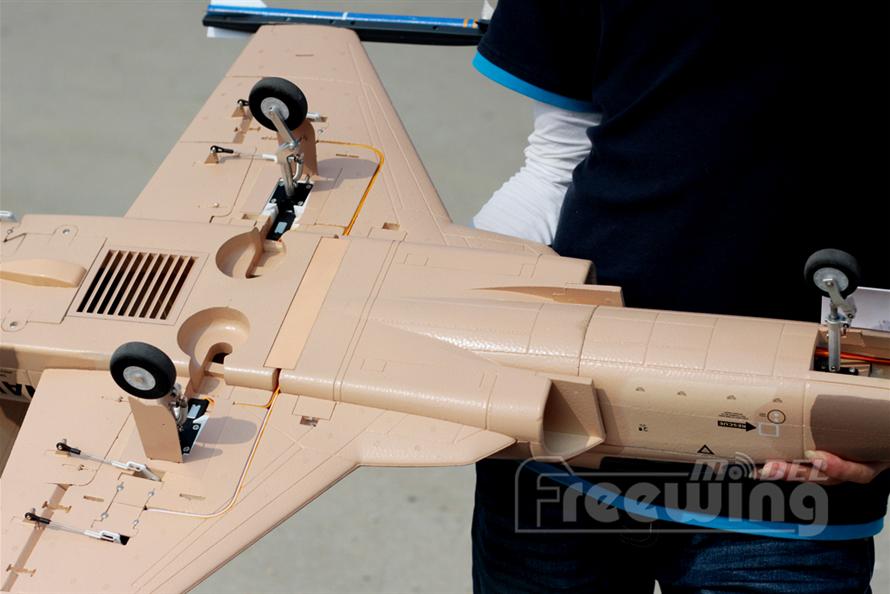

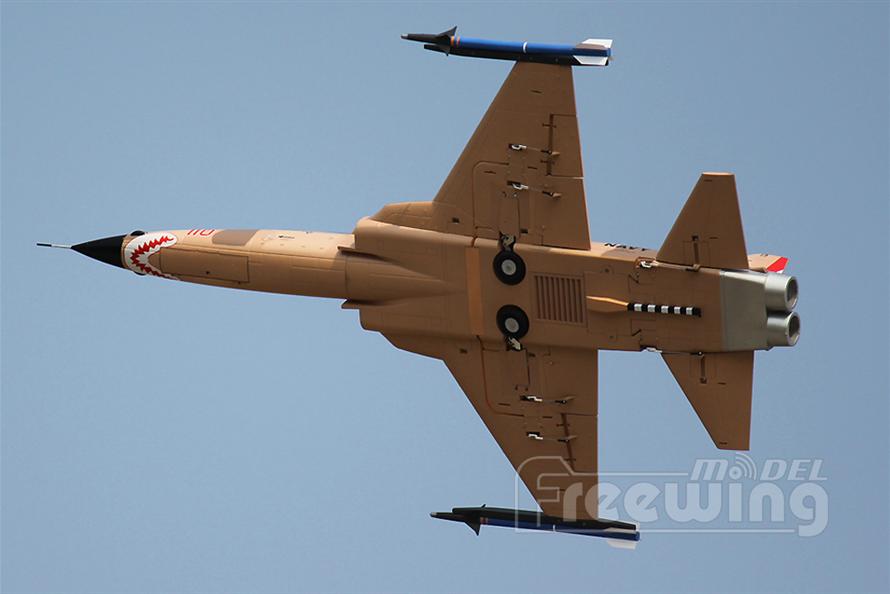

Electronic retractable landing gear with all metal shock-absorbing struts
Steerable, shock absorbing nose gear for enhanced ground maneuverability
Spring operated nose gear door
Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility

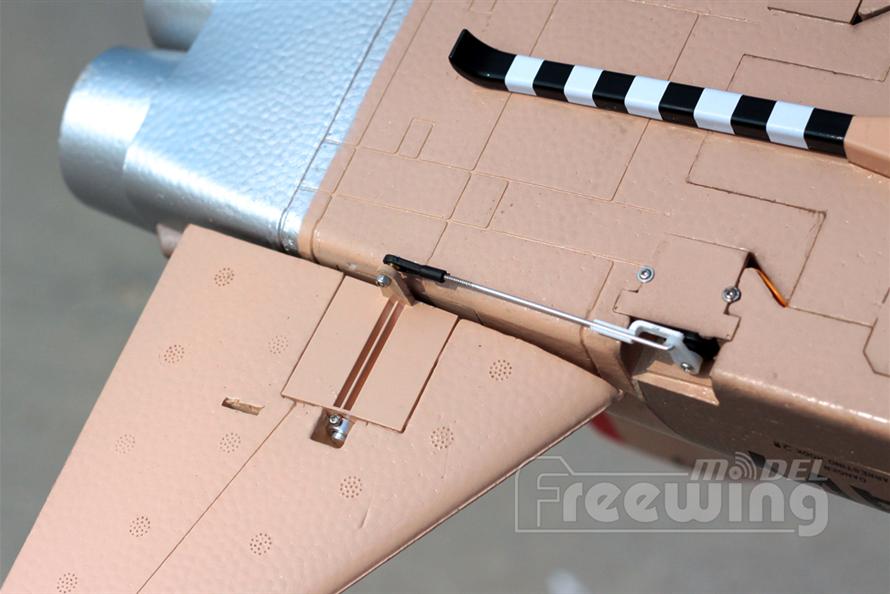

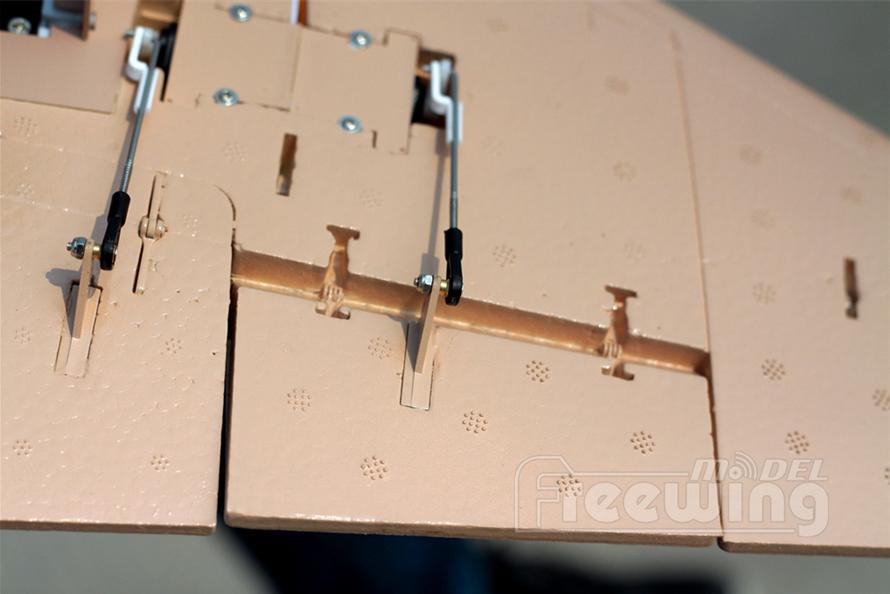

Nylon hinges on all control surfaces (superior to foam hinges)

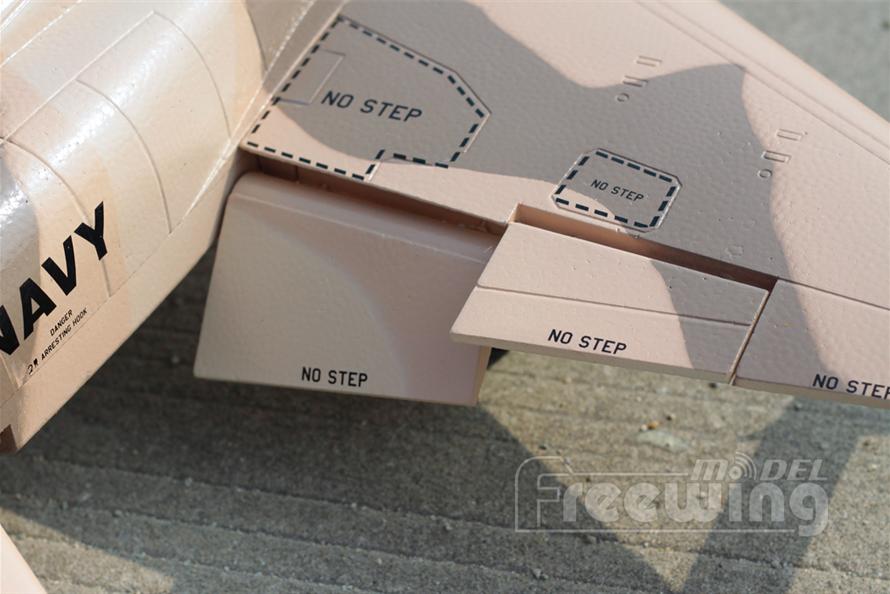

Gapless flap hinges
Outrunner motor, servos, ESC and EDF come pre-installed for your convenience
Removable wings and stabilizers for convenient transport

Freewing 80mm 12-Blade Metal EDF F-5 Tiger II - PNP
6 Channel Radio - Select a minimum 6 channel radio
6 Channel Receiver - Select a minimum 6 channel receiver

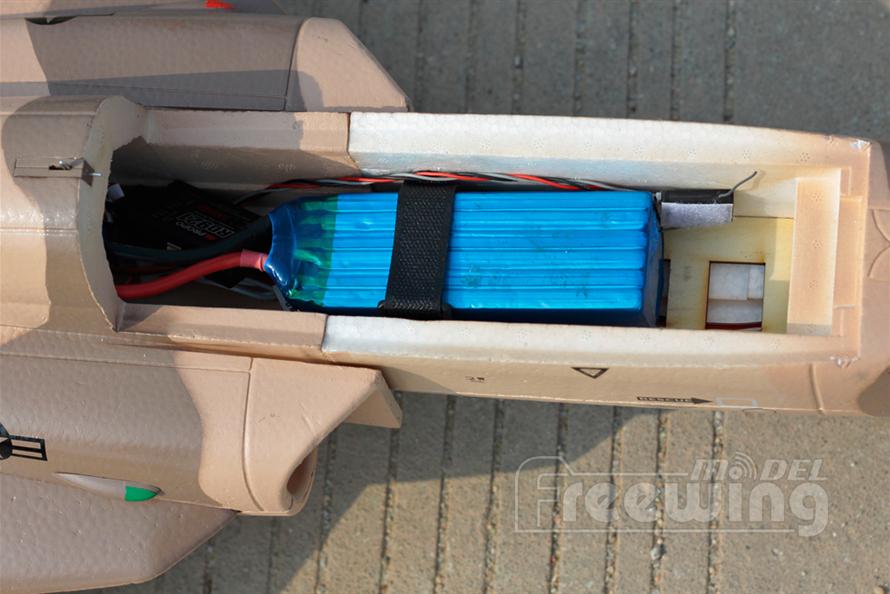

6 Cell 22.2V 4000 mAh LiPo Battery with EC5 connector -
6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger



800mm / 31.49in


1250mm / 49.21in

Flying Weight

2200g / 78oz

CG (Center of Gravity) Please refer to the manual

Power System

3530-1750kV Brushless Outrunner Motor

Electronic Speed Control

80A ESC, 5A BEC, EC5 Connector

Propeller / EDF

80mm Metal EDF with 12 Blade Fan


9g metal gear standard with 550mm lead : nose gear steering, left aileron, right aileron, left flap
9g metal gear reverse with 550mm lead : right flap
9g metal gear reverse with 100mm lead : right elevator
9g metal gear standard with 100mm lead : left elevator
9g metal gear standard with 300mm lead : rudder

Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts

Required Battery

6S 22.2V 4000mAh-5000mAh LiPo (required)

Required Radio

6 Channel

Ailerons Yes



Rudder Yes





Hinge Type

Nylon hinges

Material EPO Foam
Skill Level Advanced Intermediate / Advanced
Build Time 30 Minutes
Recommended Environment Outdoor
