Freewing J-10A Vigorous Dragon 90mm Jet 8S PNP RC Airplane
Freewing J-10A Vigorous Dragon 90mm Jet 8S PNP RC Airplane
1.it requires 6+ Channel Range Radio.
2,it requires 6+ Channel Range Receiver
3,it requires 6 Cell 22.2V 5000mAh Li-Po battery with EC5 Connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area with us.
Freewing J-10A Vigorous Dragon 90mm Jet 6S PNP RC Airplane
Freewing J-10A Vigorous Dragon 90mm Jet 6S PNP RC Airplane
1.it requires 6+ Channel Range Radio.
2,it requires 6+ Channel Range Receiver
3,it requires 6 Cell 22.2V 5000mAh Li-Po battery with EC5 Connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area with us.
This Products is available in stock.
This Product is available in stock.
This Product is available in stock.
we will ship the package within 48 hours after the buyers pay money by paypal.
Note: This is the 8S PNP version for pilots who wish to install their own power system. it comes with a 90mm 12-Blade EDF 8S Power System with a 4075-1350KV inrunner brushless motor and a thrust reversing 120A ESC pre-installed, just add your own battery with EC5 Connector to begin flying.

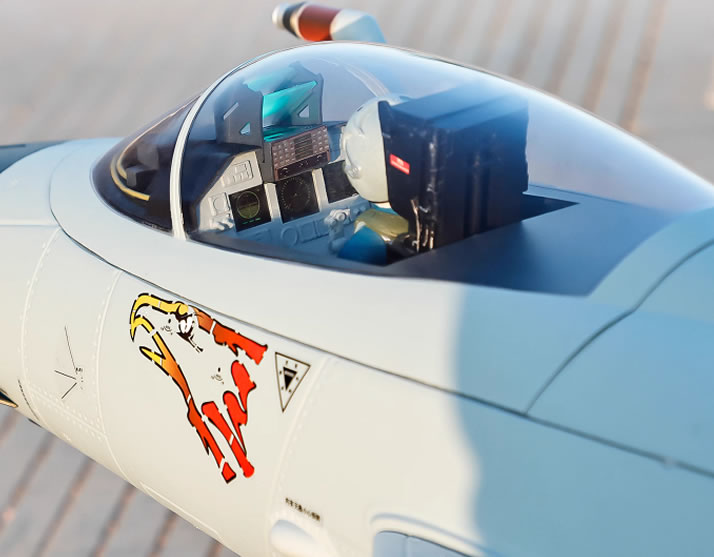

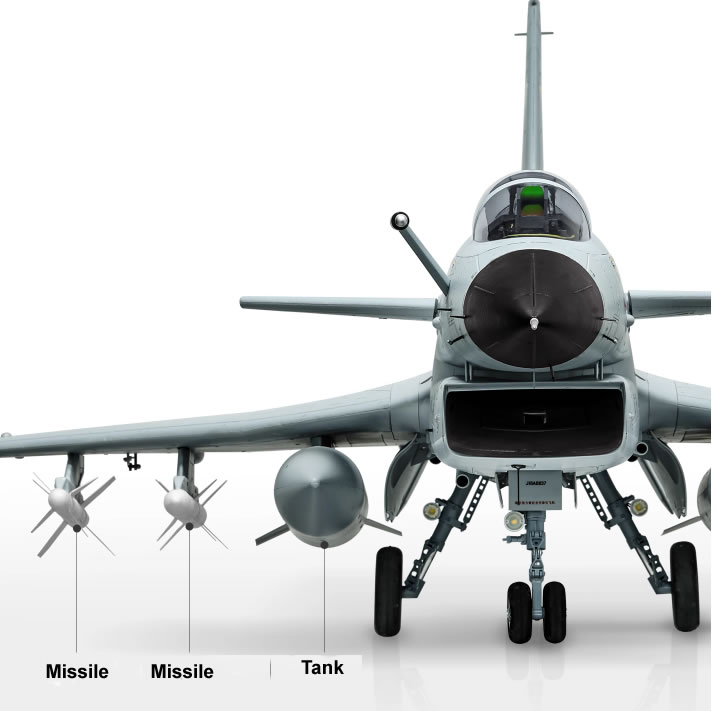

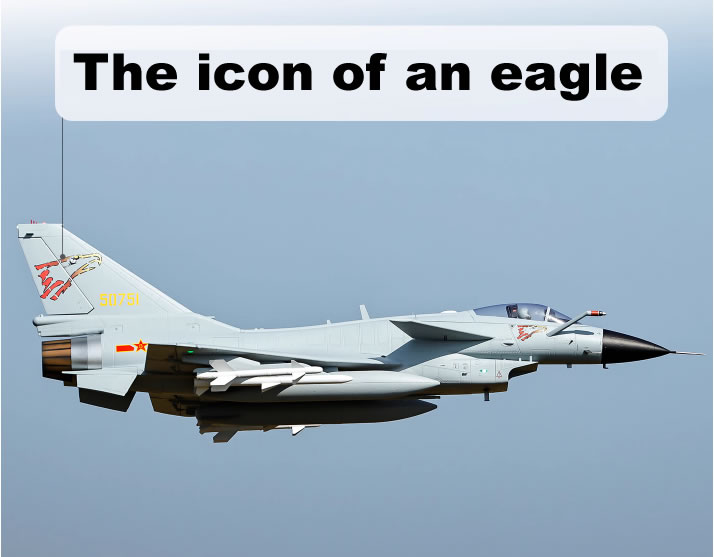

The Freewing J-10A fighter jet is a high - performanco , multi - purpose , oll - veather third - goneration fightertot developed and produced under the leadership of China,it is The Il was officaly launched in 1986 and officially launched in 2003. Tho J -10 fighter jet , as a new generation of multepurposo fighter jets has achieved a historic leap from the second generation to the thirdigeneration of Chnia's indepencentmilcary fighter jets , becoming one of the man fighter ets of the Chmese Air Force , So far , the J-10A fighter jet has developed ard derived vatious different models , and l ' es been exported . The Freewing J-10A mouel jet is based on the Chinese Air Force J -10A fighter jet and is produced in a recuced scale , Its wing span is 940mm, length is 1530mm, made of EPO material with accurate contour . The surface of tho aircran contains a large numbesof engraved lines and rivet details . It is painted with zunique and famous " red hauk " decal , making it even mora imposing . This model also includes simulation details such as miniature amtennos , sensors , and airspeed tubes made of a large amount of plastic . At the same timey a total of 11 LED lights and lampshadas were installed in the fuselage , main wings , vertical tal , landing gear and bther parts to restore the real aircraft ' s aviesion lighting effect , In addition , we wil also - provice addinonal 00 printing set with higher simulation capab lities such as ejpetion seats and instrumont panels to meet difforont needs .

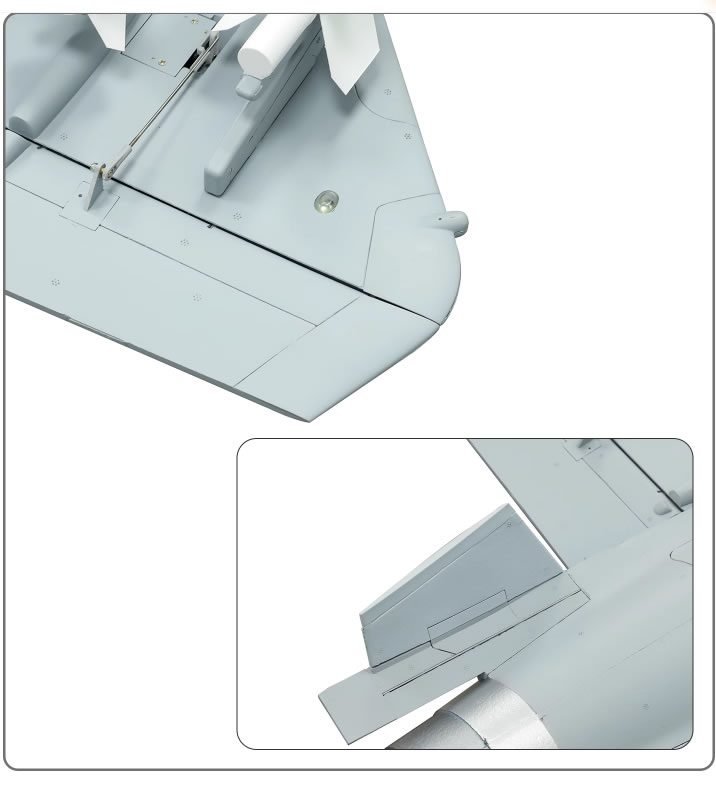

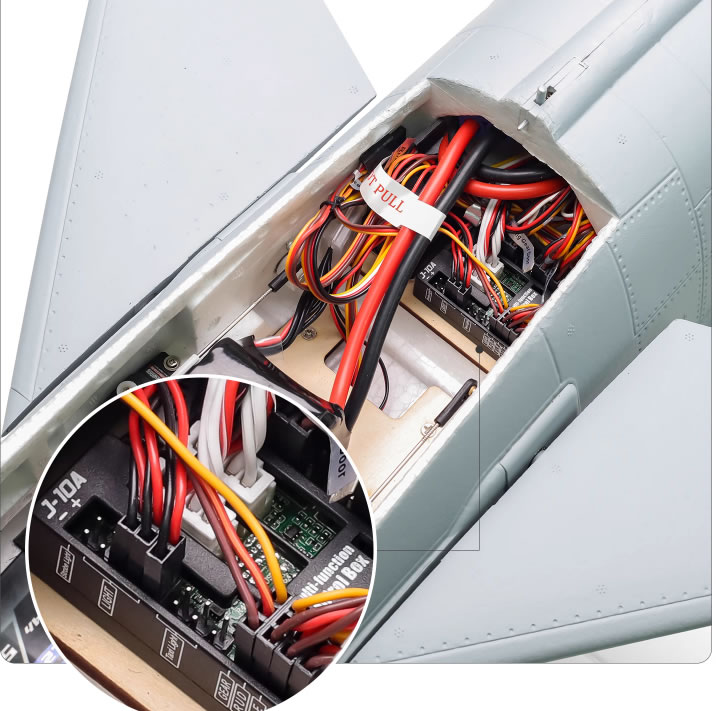

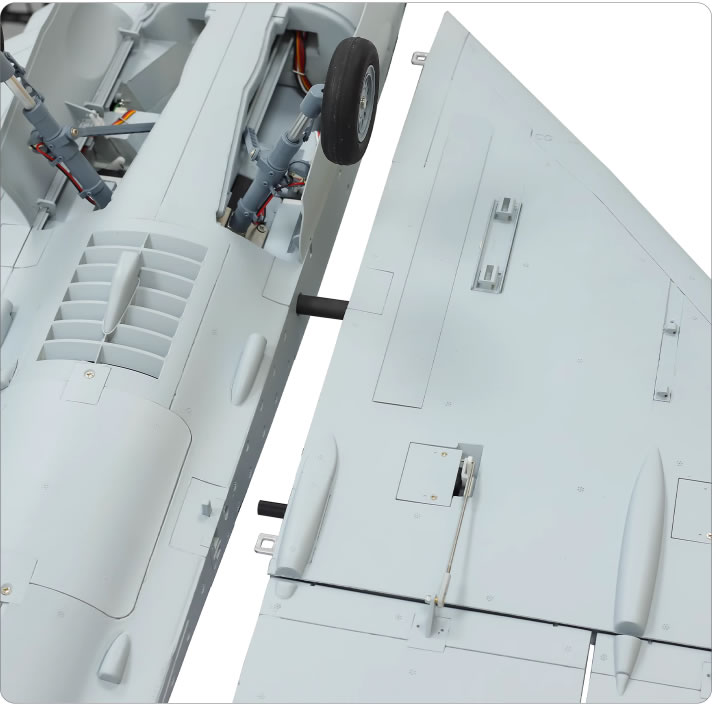

Structuraly , the main wing of the Freewing J -10A model uses the QUICK II second - generatlerr quick oortable install structure , and uses the QuickLink in - line circuit design fur the first time . Vertical ail and canard areinstaled by screws fixing structure without any glue . The electric retractable of landing gear adopts a design concept similar to the Freewing F -1690 model jet , and is further improved to be more sturdy and durable . The he landing gear is processed with high - precision CNC , and the shock absorptien action is smooth and the damping is soft . By simulating the combination of plastic parts and spraying colors as a wholethe visual effect is lifelike .

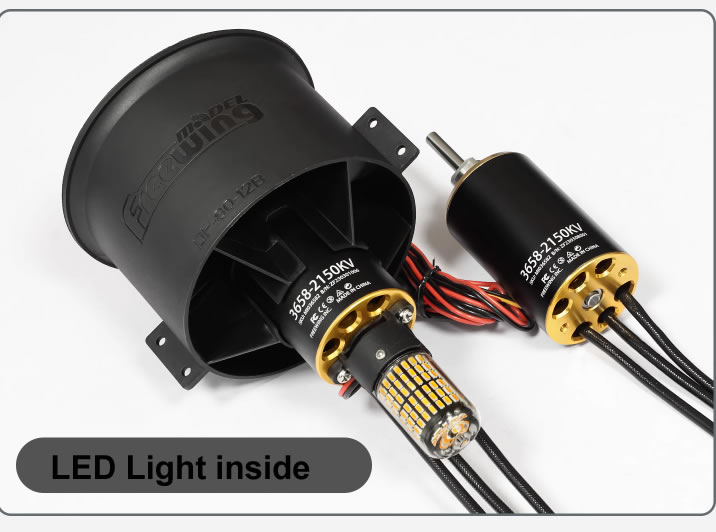

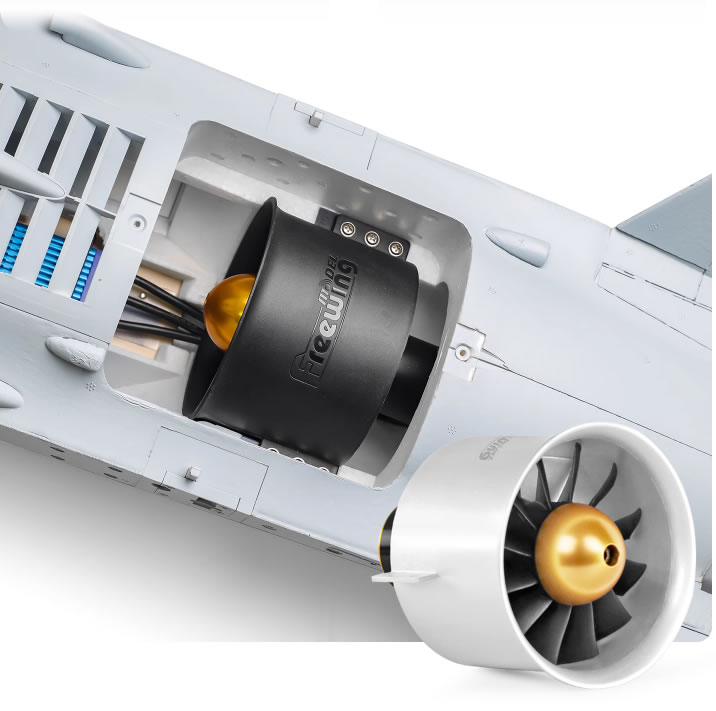

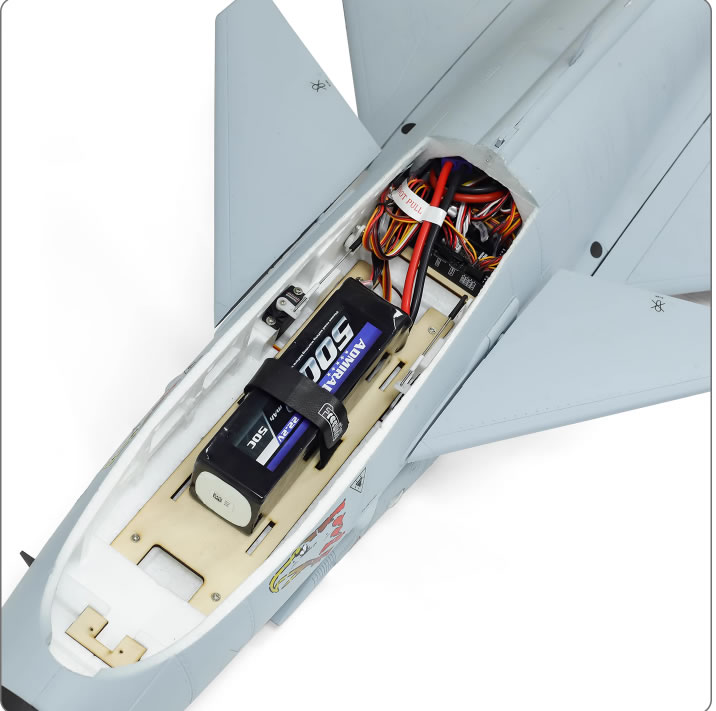

The Freewing 10A electric EDF model jet is available in two versions :6S standard version ,3668-1960KV in - nunner brushless motor , and a 90mm 12 blade all plastic cucted fan (#E72219):8S upgrade version 4075-1350ky n - runner trushless molor , aluminum alloy duct outer frame ,12 blade fan (#E72215). Both yersions are oquipped with a 120A(8S ESC with reverse tarust function . A larger battery compartment space can accommodnie 6S:8S 5000-6000mAn aviaton model liporbedenes . The 69 version has a maximum flight speed of approximatoly 190KPH119KPH), The Freewing J -10A electrio EDF modeljet has abun - dant power and excellent structursl strength . A shorter runway distance (20Mc) is suficiont for takeoff . Dunng the runway , the artrall is Jess orone to yaw and maintains good directional subility , During the fight the speed response is fast , and the fight actiong respond quickly ane scourately . At lower airspeed , the aircraft ' s lateral attitude can continue to maintain stabilty .
Features:
Quick link release main wings provide a simple and easy process for installing and removing the wings

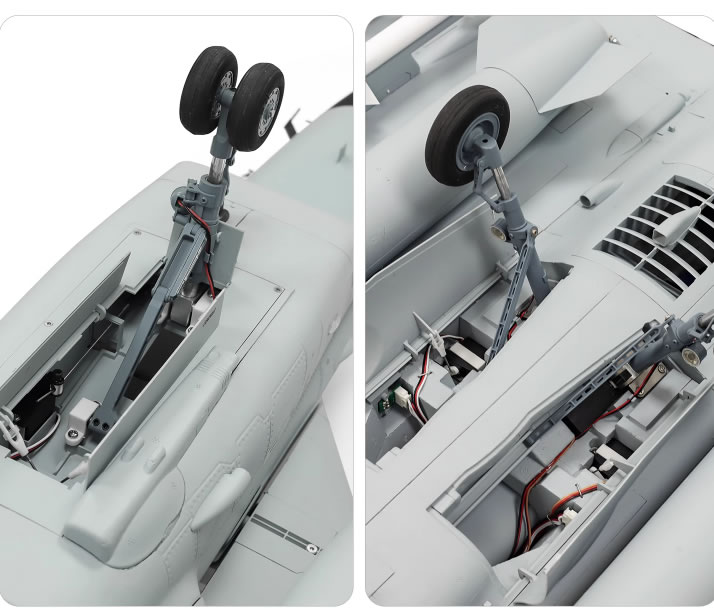

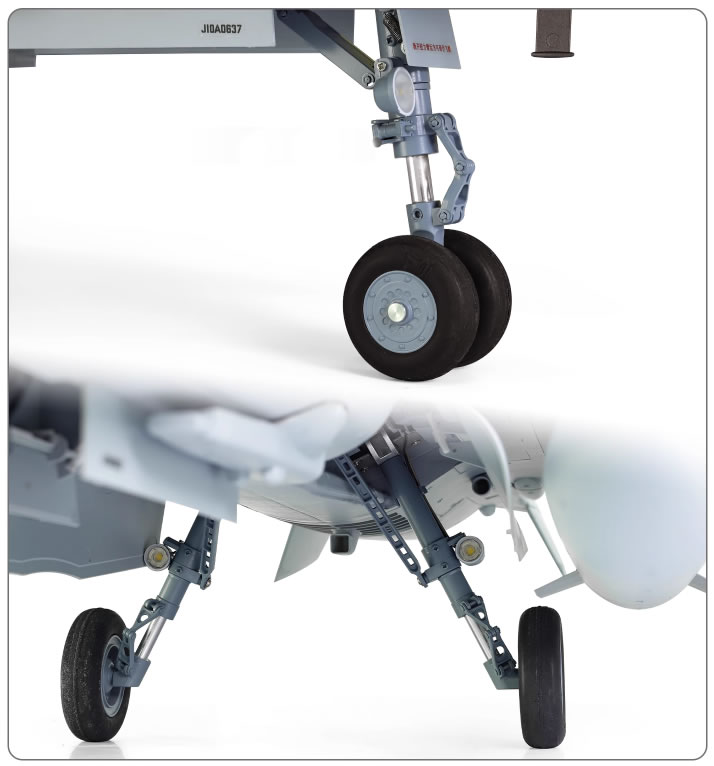

CNC-machined landing gear struts with trailing link design for better grass-field operations

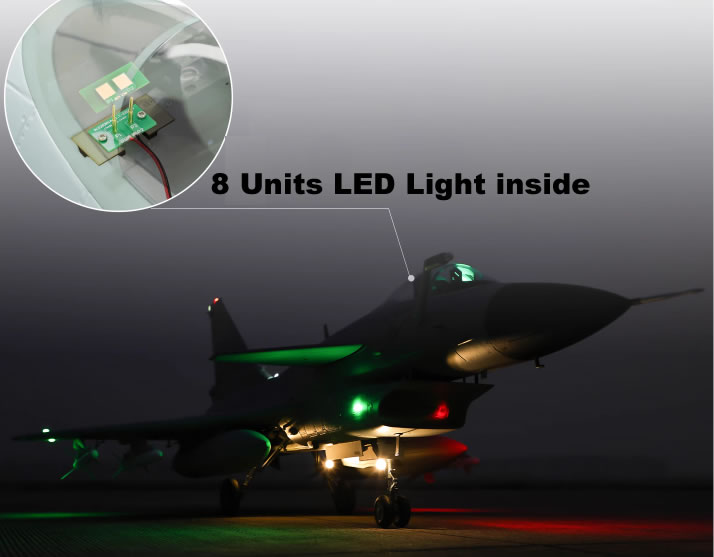

Daylight-bright 8 units LED lights located on the wing tips, top and bottom of the fuselage and a landing light on the nose gear strut
(7 units) 9g, digital, metal gear metal gear servos for all control surfaces
(4 units) 9g, digital, hybrid metal gear servos for nose gear steering and nose gear doors
Fully sequenced gear doors, including inner main gear doors for lower drag and better performance
Nylon hinges on all control surfaces
Package Includes:
Freewing J-10A Vigorous Dragon 90mm Jet 8S PNP RC Airplane
Electronic retractable landing gear (installed)
servos,landing gear retracts,all Servos EDF,4075-1350KV inrunner motor power system, and ESC (installed)
Freewing J-10A Vigorous Dragon 90mm Jet 8S PNP RC Airplane Manual PDF File download:
URL:Download Here

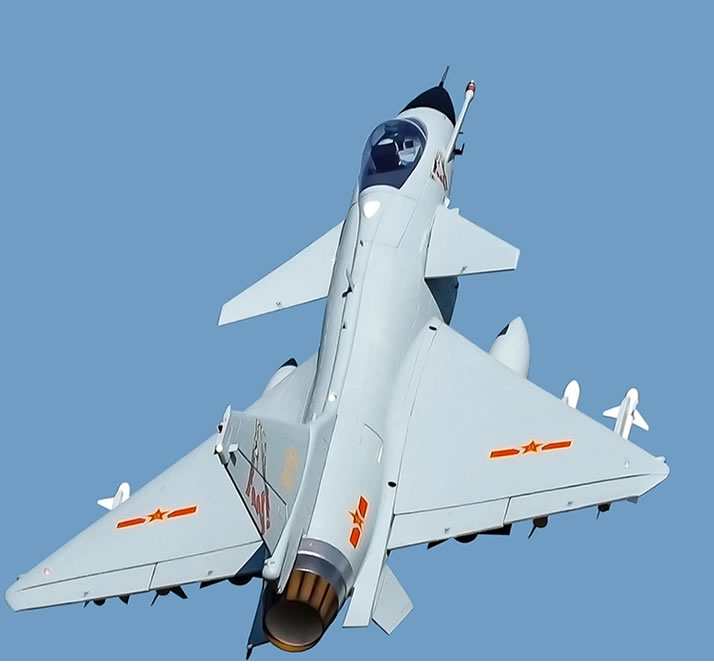

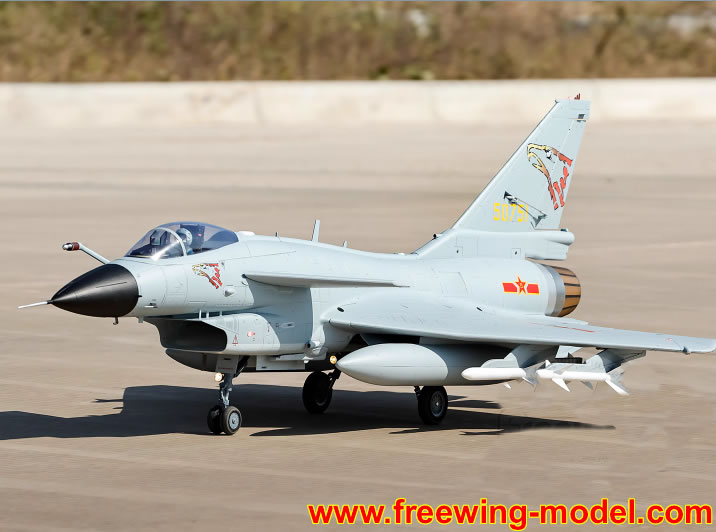

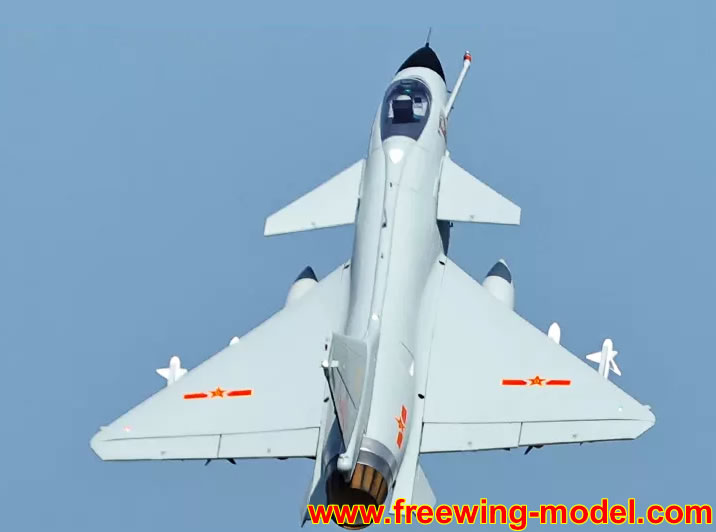

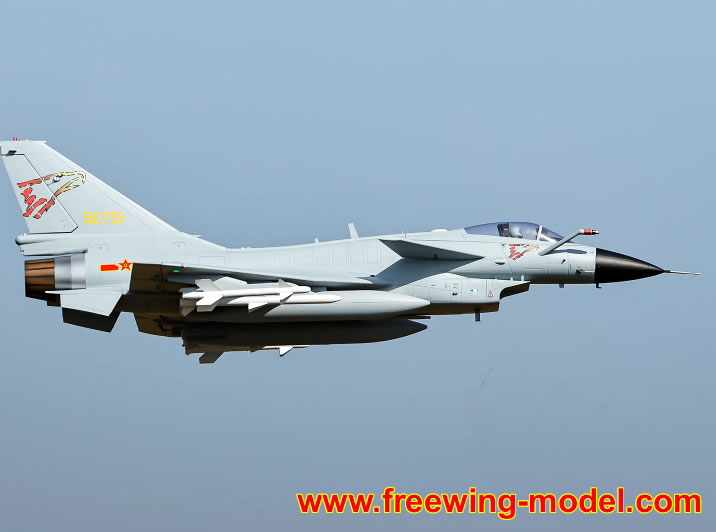

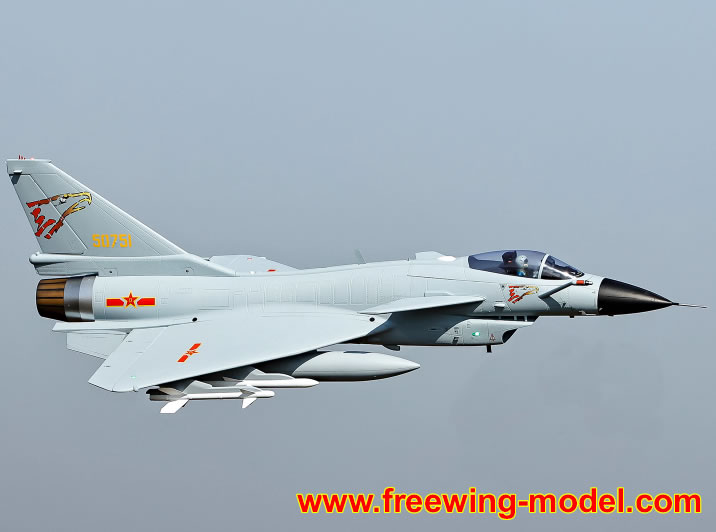

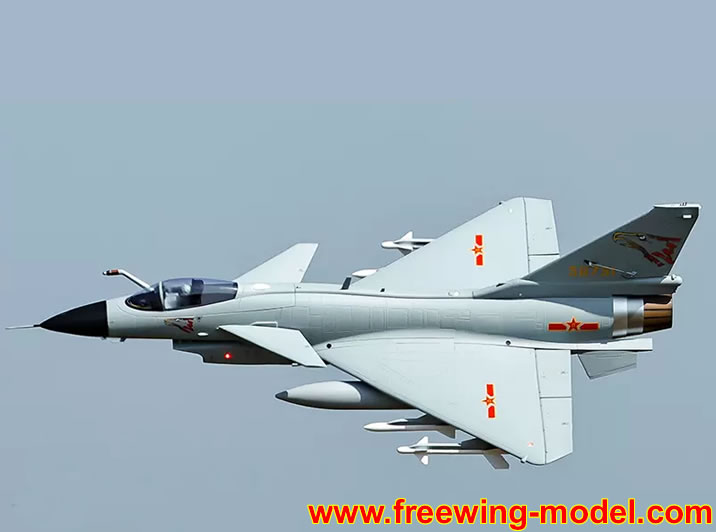

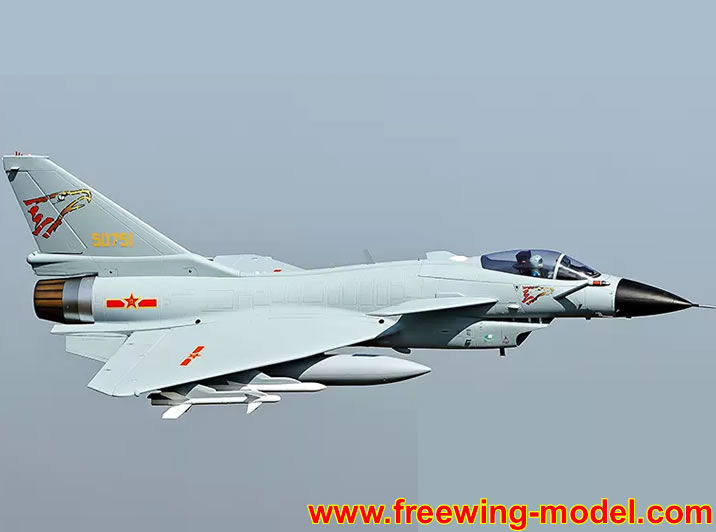

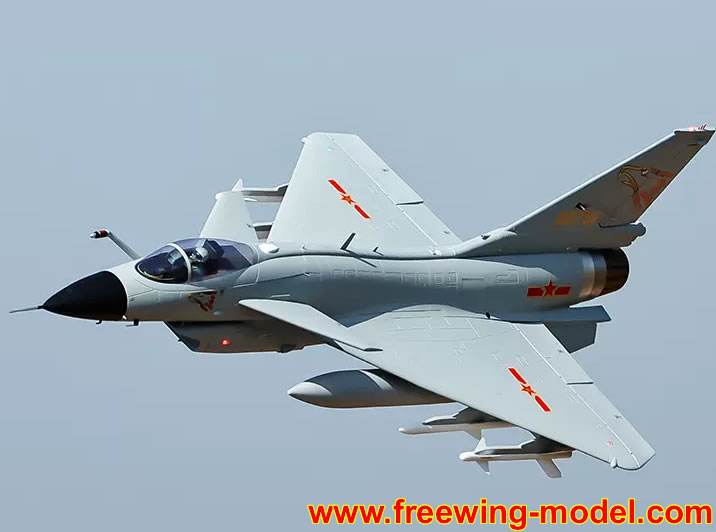

Freewing J-10A Vigorous Dragon 90mm Jet 8S PNP RC Jet Flight Image:
